As above. The US spec D model Spectre came with the unitrak motor but de-tuned a little and perhaps for the first year only. My cylinder head was from a breakers and is a unitrak head, and was complete and un-molested with Unitrak full lift original cams, shim under etc. and was painted gold from t...

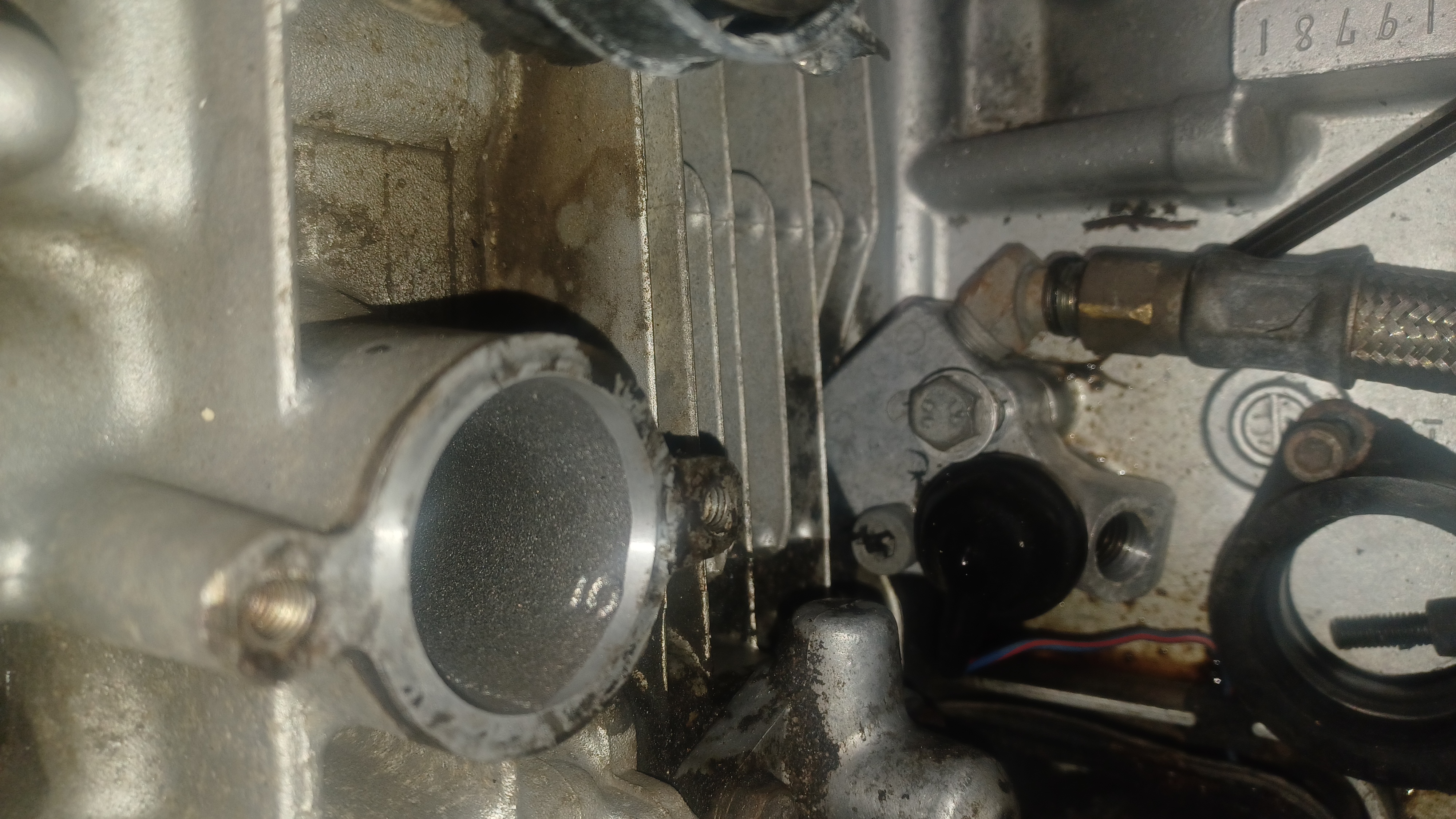

An "A" stamped in the inlet indicates a Uni head which were also supposedly factory ported . Don't know about the 5 but some 83 - 85 Z1100 ltd/spectres also had the same bathtub head but ran milder cams and 29mm shim on top instead of the Uni's shim under. A view of the piston crowns usin...

Does this indicate a bathtub Unitrak cylinder head. Engine is a 83 KZ1100LTD.

More great workmanship Zed Great to see this project back on the go again

Some great progress Zed, loving especially the coil tacho brackets. Great attention to detail Nice solution for mounting the carbs, i have just picked up a set of gsx spaced vm33 for my project. So intens blatently cpy your solution

That is nice, well done

Thanks Zed my own Spectre 86 model has and yes shim over. I have recently collected another Spectre an 84 and this does not.

Do all of the KZ1100 Spectre`s come with the Bathtub type cylinder heads or did this occur from a specific engine number ?

Thanks in advance

Great Job once again Zed

Nice that sits really well

Theres quite a few photos missing further up the page

Great progress marv good to see your back at it

Very nice

zed1015 wrote:
Center to center the s/a pivot to shock mount is 485mm.

Thanks Zed




Great progress, the XJR arm really looks alot better in a kZ than the Yamah....

Great progress your making it all look so easy Even though half of the build is fabricating the tooling The XJR arm looks really good in the frame, how far back is the shock mount from the pivot point ?

Great workmanship as usual Zed, really appreciate the detailed postings AS a matter of interest how wide is the XJR swingarm pivot ?
