Z1000 ST front brake master cylinder wanted

[Vendetta761]

Z1000 ST front brake master cylinder wanted, ( preferably with clamp and lever etc ) wish to return mine back to original if possible and have a mirror attachment point .

[chrisu]

if its the same as a MK2 the Z Power sell new replica ones.

I've got one on my H and happy with it.

[Tony]

The st master cylinder is different to the mk2

[mark d]

I’m sure the 750 4 cylinder of the same era are the same and I’ve seen them on some other bikes ( correct me if I’m wrong )

[Peter K.]

Hello.

I have three Z1000ST. The grey one is of 1981.


Front master clyinders are like hen teeth. I found no new ones over the past 10 year.

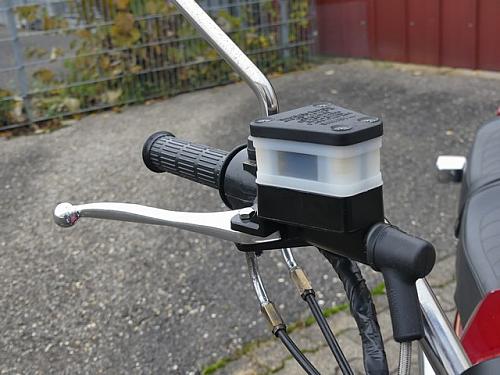

As a substitue on the read one I bought a replica one with the plastic reservoir of a Z1000A2.

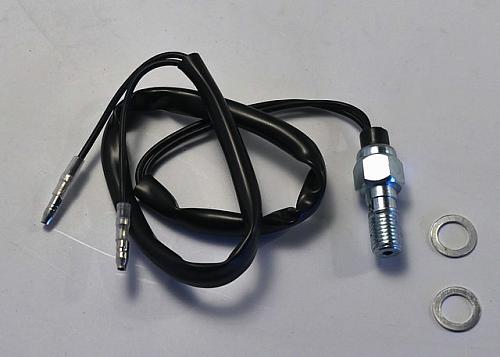

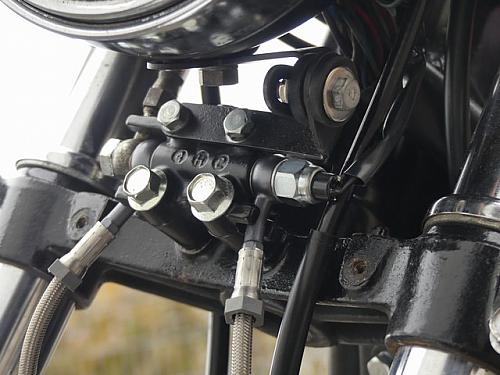

Since this one has no brake light switch I got a hydraulic switch fitted in a brake line screw.


This was fitted underneath the "Kawasaki" cover under the head light.


It works well and looks some kind of old school.

[Bill P]

if you send me a piccie i will have a look in my box of master cylinders

[rpeters]

Whats the difference, anyone got a picture? I may have one in my collection as a brokea couple of ST's years ago

[Mrg]

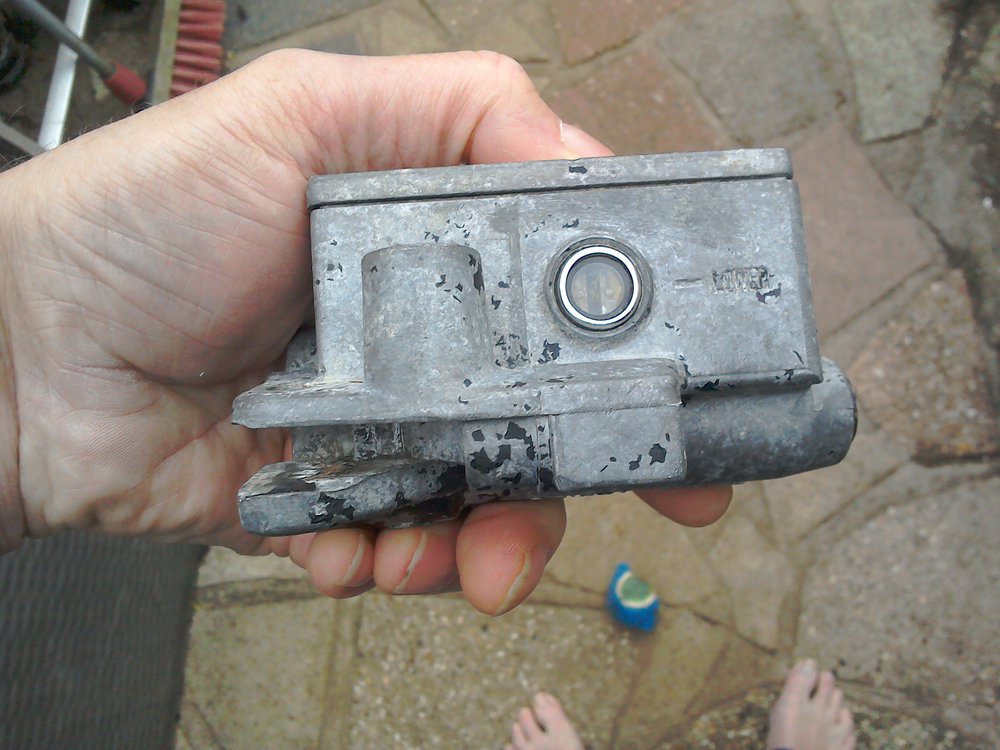

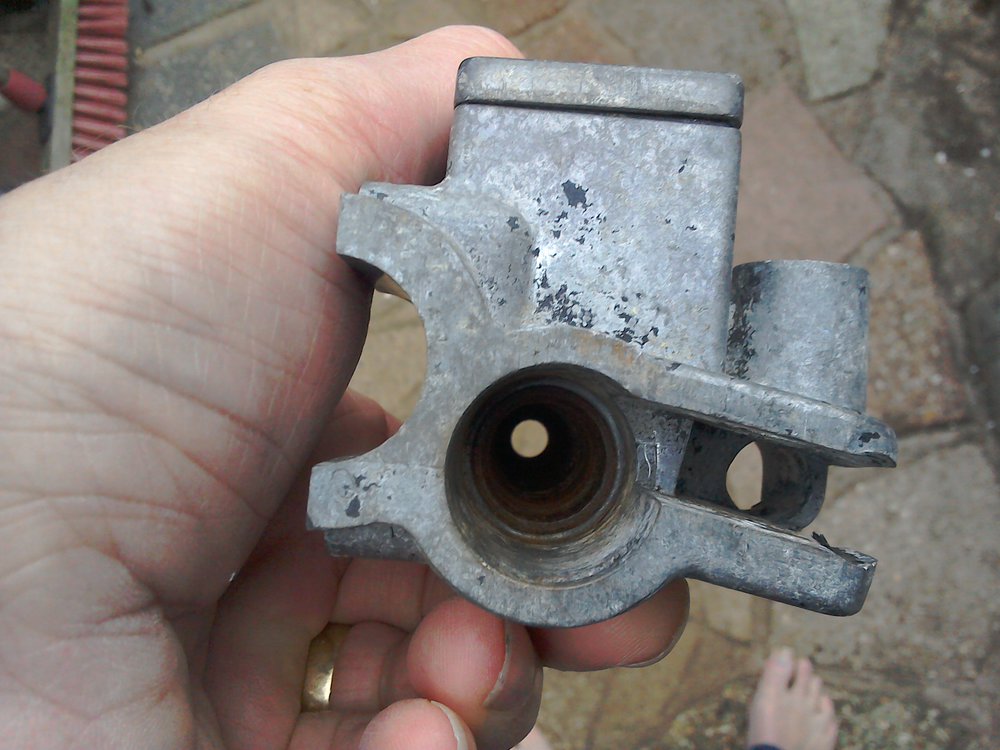

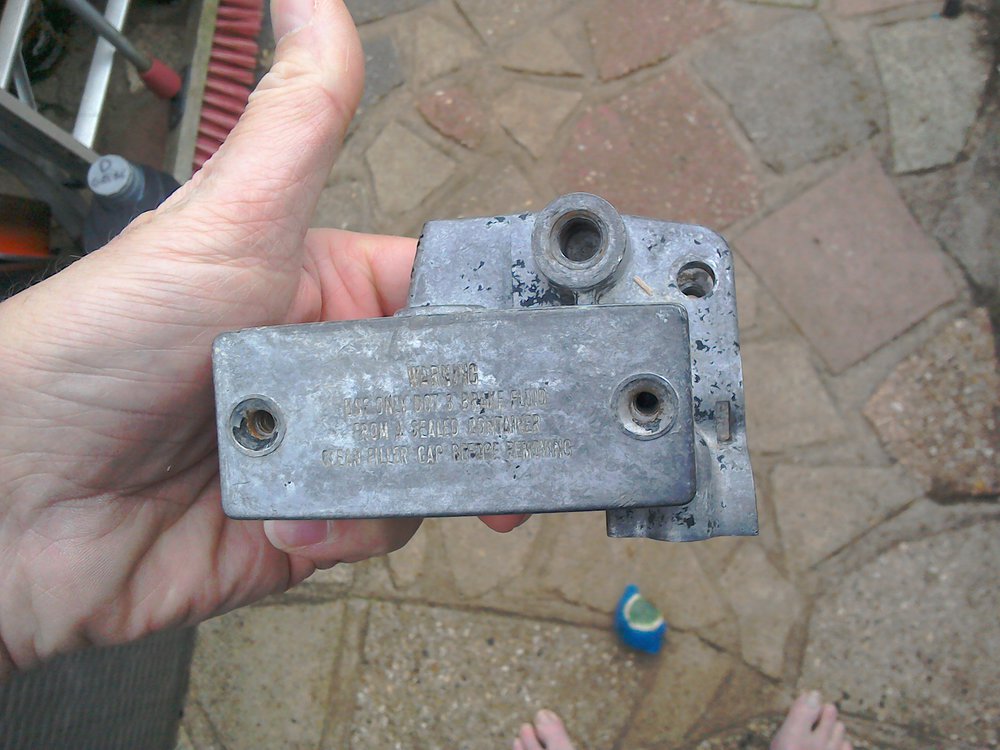

z1000st front master cylinder

[DeadZedDave]

Similar / identical ? - Check the pictures.....
https://www.ebay.co.uk/itm/357102648191 ... c8-EE98pF8

[Mrg]

the part that clamps on to the bar is angled for the ltd to keep it level so the brake lever will not line up with the bar and the master would not sit level i bought one myself by accident.

[DeadZedDave]

Closer ?
https://www.ebay.co.uk/itm/276329208448 ... gL7OPD_BwE
