Rear axle spacers z1000R

Posted: Sun Feb 05, 2023 10:29 am
Author: chrisNI

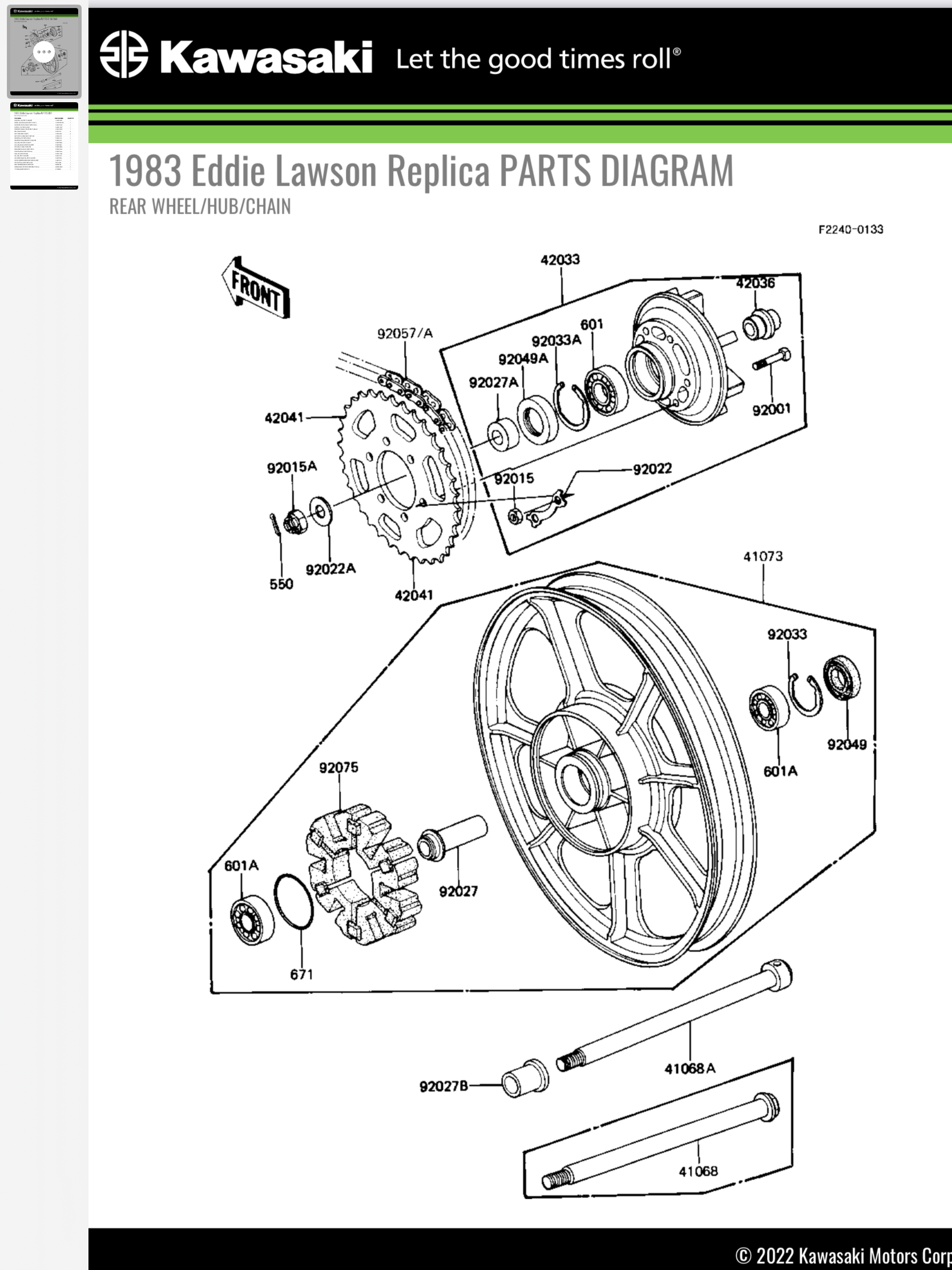

Im looking for a couple of axle collars for my Z1000R back axle if anyone has these parts surplus. Part numbers 92027-1287 and 92027-1288 shown as 92027A and 92027B on the attached diagram. These are showing to be available from Kawasaki but the part listed against the part number for 92027A on Cradley shows as 20x40x16.5 whereas the Kawasaki parts diagram says it should be 18 - not a lot but not right. The 92027b is 31mm.

When I got the bike quite a few years ago the standard wheels weren’t in it I was lucky to get as much of the standard stuff as I did but these parts weren’t there. I could get them made as they’re quite straightforward but if anyone has them and doesn’t need them it would be simpler. Cash waiting. :D


Re: Rear axle spacers z1000R

Posted: Sun Feb 05, 2023 6:34 pm
Author: sockpuppet
Hi Chris
I think I have what you need ,
theyre from a 1100B2 but I think they are the same.
The second one measures 16.5 mm even though the parts book says 18mm.! :?:
Is that the one you need?.
Mick

Re: Rear axle spacers z1000R

Posted: Sun Feb 05, 2023 8:30 pm
Author: chrisNI
sockpuppet wrote:Hi Chris
I think I have what you need ,
theyre from a 1100B2 but I think they are the same.
The second one measures 16.5 mm even though the parts book says 18mm.! :?:
Is that the one you need?.
Mick



PM’d you :D
