ELR R2 Swing arm pivot

Post all your wanted ads here.

Moderators: KeithZ1R, chrisu, paul doran, Taffus

Post Reply
Message
Author
Stugill
100Club
100Club
Posts: 250
Joined: 17th Sep 2012
Location: Hertfordshire

ELR R2 Swing arm pivot

#1 PostAuthor: Stugill » Fri Oct 11, 2024 12:30 pm

Good afternoon.

As I've already posted, I'm in the process of sorting out my swing arm and I need the collar, part number 92027-1561.

If anyone has one please let me know.

Stu
Attachments

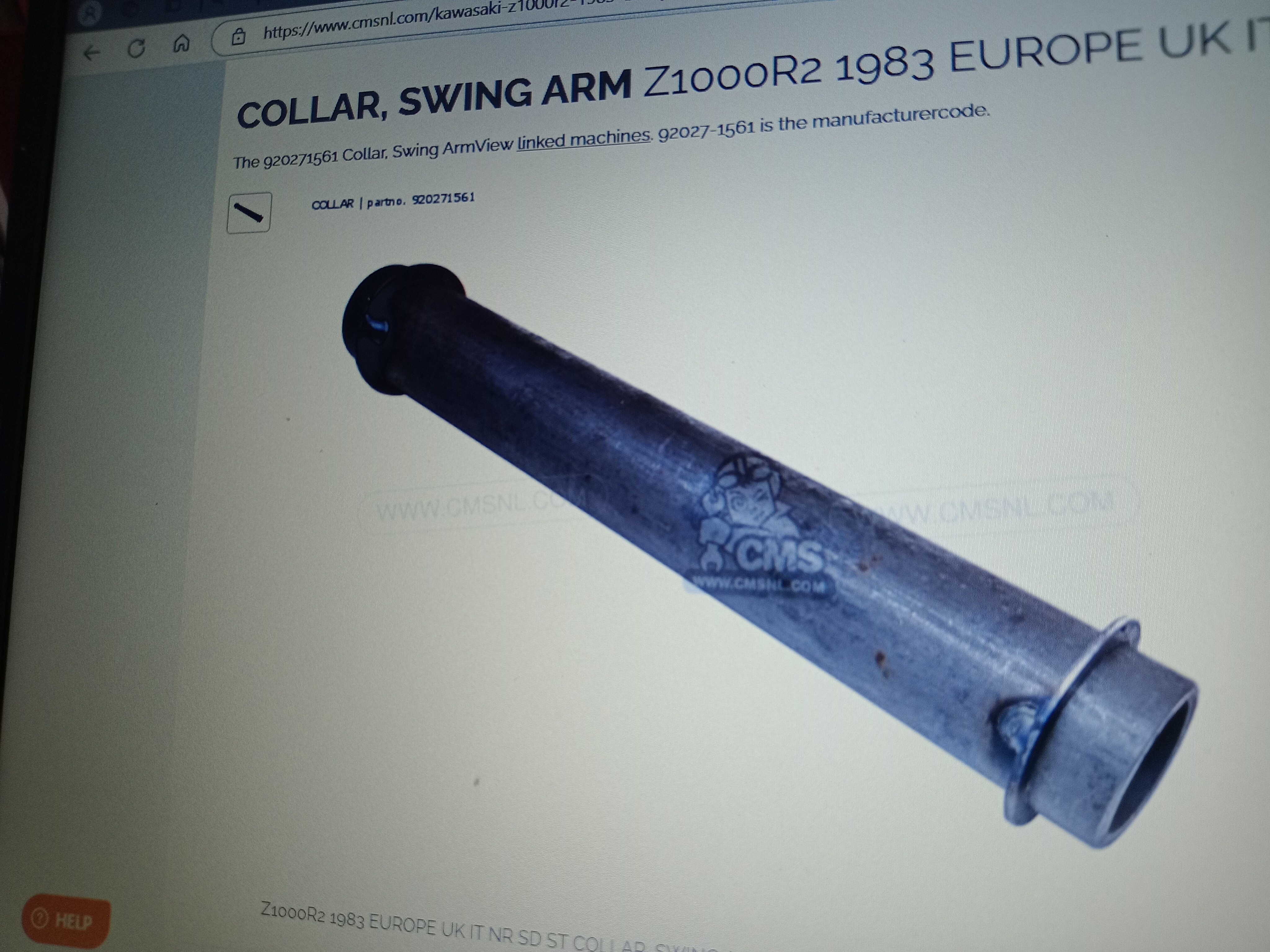

Elr swing arm collar.jpg

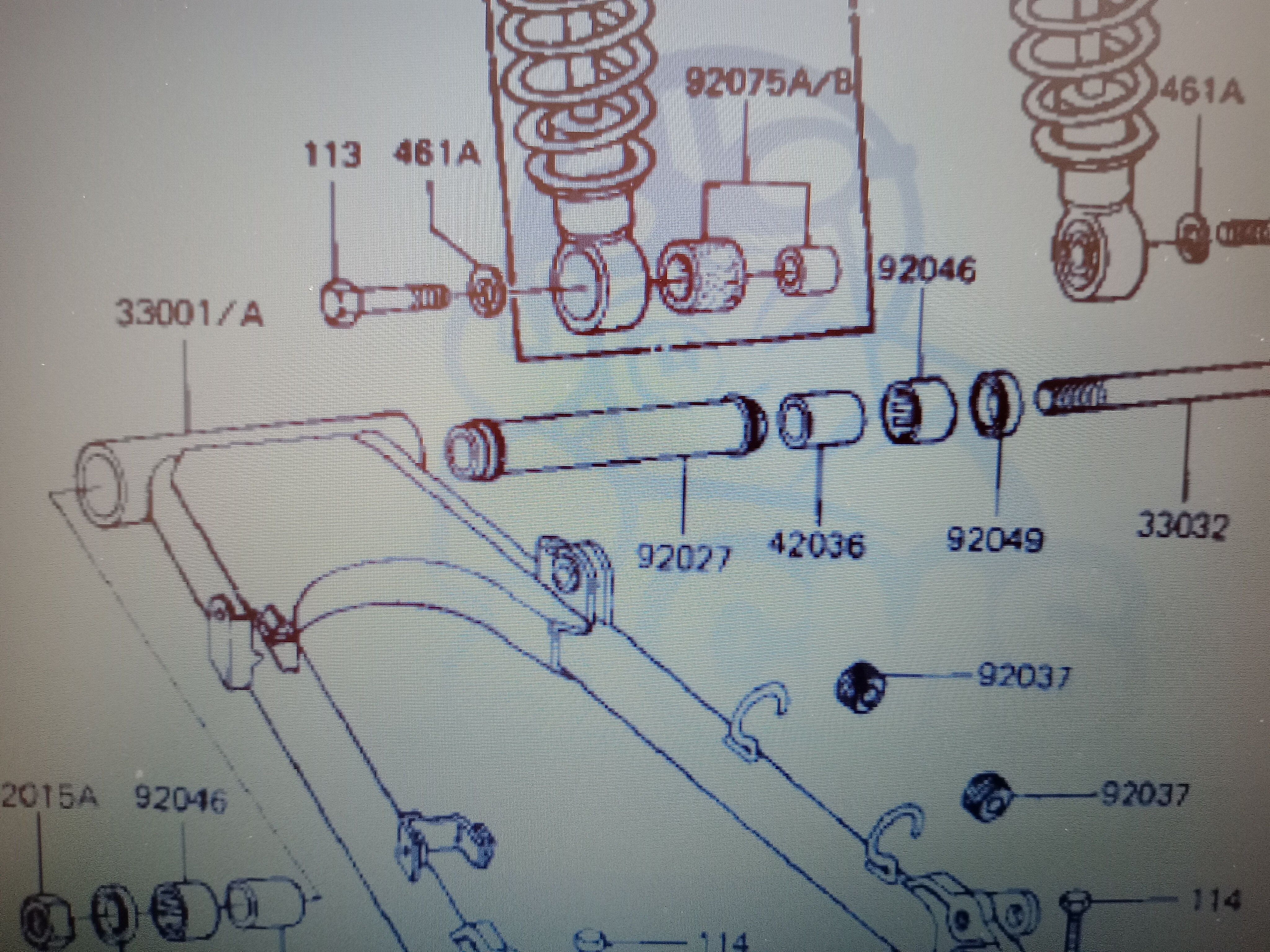

Elr swing arm collar diagram.jpg
Top
James
100Club
100Club
Posts: 123
Joined: 18th Dec 2023
Location: Belfast

Re: ELR R2 Swing arm pivot

#2 PostAuthor: James » Sat Oct 12, 2024 11:26 am

If its the same as gpz1100 a2 mono,i have one
Top
Stugill
100Club
100Club
Posts: 250
Joined: 17th Sep 2012
Location: Hertfordshire

Re: ELR R2 Swing arm pivot

#3 PostAuthor: Stugill » Sat Oct 12, 2024 12:48 pm

Cheers James.

I'll try to find out and let you know.

Stu
Top
scotty m
Regular Poster
Posts: 68
Joined: 19th Apr 2018
Location: vancouver

Re: ELR R2 Swing arm pivot

#4 PostAuthor: scotty m » Sun Oct 13, 2024 3:24 am

83 ELR and 82 Gpz1100 have the same swingarm, same part number
Top
User avatar
BAFF1960
100Club
100Club
Posts: 224
Joined: 9th Aug 2021
Location: DARLINGTON.

Re: ELR R2 Swing arm pivot

#5 PostAuthor: BAFF1960 » Sun Oct 13, 2024 9:17 am

Probably easier to pick up a complete swinging arm for a B1/2, there's a few about.
Top
Stugill
100Club
100Club
Posts: 250
Joined: 17th Sep 2012
Location: Hertfordshire

Re: ELR R2 Swing arm pivot

#6 PostAuthor: Stugill » Sun Oct 13, 2024 4:33 pm

Thanks for the replies and advice.

I would prefer to refurb my swingarm if I can.

I'm not sure if the GPz A2 will fit, the UK model isn't on the CMSNL list, does anyone know?

Stu



fits models
KZ1000J1 1981 USA CANADA
KZ1000J2 1982 USA CANADA
KZ1000J3 1983 USA CANADA
KZ1000P1 POLICE 1000 1982 USA
KZ1000P10 POLICE 1000 1991 USA
KZ1000P11 POLICE 1000 1992 USA
KZ1000P12 POLICE 1000 1993 USA
KZ1000P13 POLICE 1000 1994 USA
KZ1000P14 POLICE 1000 1995 USA
KZ1000P15 KE1000 POLICE 1996 USA
KZ1000P16 KE1000 POLICE 1997 USA
KZ1000P17 KE1000 POLICE 1998 USA
KZ1000P18 KE1000 POLICE 1999 USA
KZ1000P19 KE1000 POLICE 2000 USA
KZ1000P2 POLICE 1000 1983 USA
KZ1000P20 POLICE 1000 2001 USA
KZ1000P21 POLICE 1000 2002 USA
KZ1000P22 POLICE 1000 2003 USA
KZ1000P24 POLICE 1000 2005 USA
KZ1000P3 POLICE 1000 1984 USA
KZ1000P4 POLICE 1000 1985 USA
KZ1000P5 POLICE 1000 1986 USA
KZ1000P6 POLICE 1000 1987 USA
KZ1000P7 POLICE 1000 1988 USA
KZ1000P8 POLICE 1000 1989 USA
KZ1000P9 POLICE 1000 1990 USA
KZ1000R1 EDDIE LAWSON REPLICA 1982 USA CANADA
KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
KZ750K1 1983 USA CANADA / LTD BELT DRIVE
KZ750K2 1984 USA CANADA
Z1000R2 1983 EUROPE UK IT NR SD ST
Z1100R1 1984 EUROPE UK NR
Z1100R1 1984 EUROPE UK NR
ZX1100A1 1983 EUROPE UK FR IT NR SD ST
ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA
Top
User avatar
z1bman
Hardcore
Hardcore
Posts: 4690
Joined: 3rd Mar 2010
Location: WORDSLEY WEST MIDLANDS

Re: ELR R2 Swing arm pivot

#7 PostAuthor: z1bman » Tue Oct 15, 2024 8:26 pm

Same a gpz1100/a2/a2 i have one in bits at the moment i could measure it if you want the dimensions
Top
Stugill
100Club
100Club
Posts: 250
Joined: 17th Sep 2012
Location: Hertfordshire

Re: ELR R2 Swing arm pivot

#8 PostAuthor: Stugill » Tue Oct 15, 2024 9:52 pm

Cheers.

James kindly had a look at his one and it doesn't have the two welded washers on it, that mine had at some point as per the photo.

Stu
Attachments
Top
