Z900 rear brake light (outage) switch

#1 PostAuthor: Andrew_s » Mon May 21, 2018 9:01 am

Been looking for a NOS rear brake light (outage) switch for the Z900, this is the one that fits into a 3 wire block-connector under tank.

Have spoken with Phil at Z Power and these haven’t been available for 20 years and are generally not available as old stock (nor are repros), so most owners just leave it off. However, I’m a bit anal on this stuff. :roll:

The OEM part number is 28019-001 and the Z400 unit is 28019-002 which seems to be available in the States - does anyone know if this unit would fit?
Current Bikes:
Phil Churchett's 1976 Z900 A4: PRE 2R https://www.flickr.com/photos/115740825@N05/albums/72157680116996884
1973 XL250 K0 Motosport: UKX 73L
2023 R1250 GSA
Previous Zeds: Z750B1 Twin, Z650B1, Z750E
Top
User avatar
warren3200gt
Hardcore
Hardcore
Posts: 3004
Joined: 13th Jun 2014
Location: Dartford Kent

Re: Z900 rear brake light (outage) switch

#2 PostAuthor: warren3200gt » Mon May 21, 2018 9:17 am

Don't know for sure but most 70's bikes used the same unit. z650's used a slightly smaller unit but does exactly the same job with the same con block. I got a nos "Yamaha" non branded one from ebay Germany for about £15 quid inc postage. Works just fine and has the same con block.
PUM 488 June 2023
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
Top
User avatar
Andrew_s
Custard Cream
Custard Cream
Posts: 962
Joined: 5th Dec 2016
Location: Farnham, Surrey

Re: Z900 rear brake light (outage) switch

#3 PostAuthor: Andrew_s » Mon May 21, 2018 12:04 pm

warren3200gt wrote:Don't know for sure but most 70's bikes used the same unit. z650's used a slightly smaller unit but does exactly the same job with the same con block. I got a nos "Yamaha" non branded one from ebay Germany for about £15 quid inc postage. Works just fine and has the same con block.


Thanks Warren, do you happen to know the part number on the Z650 or Yam unit?

Cheers
Current Bikes:
Phil Churchett's 1976 Z900 A4: PRE 2R https://www.flickr.com/photos/115740825@N05/albums/72157680116996884
1973 XL250 K0 Motosport: UKX 73L
2023 R1250 GSA
Previous Zeds: Z750B1 Twin, Z650B1, Z750E
Top
User avatar
warren3200gt
Hardcore
Hardcore
Posts: 3004
Joined: 13th Jun 2014
Location: Dartford Kent

Re: Z900 rear brake light (outage) switch

#4 PostAuthor: warren3200gt » Mon May 21, 2018 12:19 pm

z650 part no 28019-001. don't know the Yam one, looked the same in the picture so took a chance and it worked out (for a change)

https://www.ebay.co.uk/itm/Genuine-Kawa ... SwLVZVtLvb

These are the KHI bikes that use the same unit
1982
650 CSR KZ650B
CHASSIS ELECTRICAL EQUIPMENT ('81-'82 H1)


1981
550 GP KZ550D (GPz)
CHASSIS ELECTRICAL EQUIPMENT
650 CSR KZ650H
CHASSIS ELECTRICAL EQUIPMENT ('81-'82 H1)
CHASSIS ELECTRICAL EQUIPMENT ('81-'82 H1)
KZ550 Standard KZ550A
CHASSIS ELECTRICAL EQUIPMENT ('80-'81 A1
CHASSIS ELECTRICAL EQUIPMENT ('82-'83 A3
Police 1000 KZ1000C
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('79-'81 C2
More »

1980
1000 LTD KZ1000B
CHASSIS ELECTRICAL EQUIPMENT ('79-'80)
650 Custom KZ650F
CHASSIS ELECTRICAL EQUIPMENT
KZ1000 KZ1000A
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 A1
KZ550 Standard KZ550A
CHASSIS ELECTRICAL EQUIPMENT ('80-'81 A1
CHASSIS ELECTRICAL EQUIPMENT ('82-'83 A3
Police 1000 KZ1000E
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('79-'81 C2

1979
1000 LTD KZ1000B
CHASSIS ELECTRICAL EQUIPMENT ('79-'80 B3)
650 Custom KZ650C
CHASSIS ELECTRICAL EQUIPMENT
650 SR KZ650D
CHASSIS ELECTRICAL EQUIPMENT
750 LTD (Twin) KZ750B
CHASSIS ELECTRICAL EQUIPMENT
KZ1000 KZ1000A
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 A1
KZ650 KZ650B
CHASSIS ELECTRICAL EQUIPMENT
Police 1000 KZ1000C
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('79-'81 C2

1978
1000 LTD KZ1000B
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 B1
CHASSIS ELECTRICAL EQUIPMENT ('79-'80 B3)
650 Custom KZ650C
CHASSIS ELECTRICAL EQUIPMENT
650 SR KZ650D
CHASSIS ELECTRICAL EQUIPMENT
650 SR(KZ650D1)US
CHASSIS ELECTRICAL EQUIPMENT
750 LTD (Twin) KZ750B
CHASSIS ELECTRICAL EQUIPMENT
KZ1000 KZ1000A
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 A1
KZ650 KZ650B
CHASSIS ELECTRICAL EQUIPMENT
CHASSIS ELECTRICAL EQUIPMENT
Police 1000 KZ1000C
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
CHASSIS ELECTRICAL EQUIPMENT ('79-'81 C2
More »

1977
1000 LTD KZ1000B
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 B1
CHASSIS ELECTRICAL EQUIPMENT ('79-'80 B3)
650 Custom KZ650C
CHASSIS ELECTRICAL EQUIPMENT
750 LTD (Twin) KZ750B
CHASSIS ELECTRICAL EQUIPMENT
KZ1000 KZ1000A
CHASSIS ELECTRICAL EQUIPMENT ('77-'78 A1
KZ650 KZ650B
CHASSIS ELECTRICAL EQUIPMENT

1976
750 LTD (Twin) KZ750B
CHASSIS ELECTRICAL EQUIPMENT
KH500
CHASSIS ELECTRICAL EQUIPMENT (H1-D/E/F)
CHASSIS ELECTRICAL EQUIPMENT (KH500-A8)
PUM 488 June 2023
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
Top
User avatar
Andrew_s
Custard Cream
Custard Cream
Posts: 962
Joined: 5th Dec 2016
Location: Farnham, Surrey

Re: Z900 rear brake light (outage) switch

#5 PostAuthor: Andrew_s » Mon May 21, 2018 3:09 pm

Excellent info, many thanks!
Current Bikes:
Phil Churchett's 1976 Z900 A4: PRE 2R https://www.flickr.com/photos/115740825@N05/albums/72157680116996884
1973 XL250 K0 Motosport: UKX 73L
2023 R1250 GSA
Previous Zeds: Z750B1 Twin, Z650B1, Z750E
Top
User avatar
PAULJAC47
Hardcore
Hardcore
Posts: 3257
Joined: 31st Aug 2008
Location: WOLVO WEST MIDS ENGLAND

Re: Z900 rear brake light (outage) switch

#6 PostAuthor: PAULJAC47 » Mon May 21, 2018 5:08 pm

Remember Keith Ogden on here saying he had a nos one not long back...
PAULJAC47,,,,,"She may not look like much, but she's got it where it counts, kid."
-Han Solo

You can't polish a turd, but you can roll it in glitter

Salad is what real food eats.
Anon

PUM 673
Top
User avatar
z1bman
Hardcore
Hardcore
Posts: 4690
Joined: 3rd Mar 2010
Location: WORDSLEY WEST MIDLANDS

Re: Z900 rear brake light (outage) switch

#7 PostAuthor: z1bman » Mon May 21, 2018 9:56 pm

https://www.ebay.ie/itm/KAWASAKI-Brake- ... 1c797d6fd4
Top
User avatar
Andrew_s
Custard Cream
Custard Cream
Posts: 962
Joined: 5th Dec 2016
Location: Farnham, Surrey

Re: Z900 rear brake light (outage) switch

#8 PostAuthor: Andrew_s » Tue May 22, 2018 7:23 am

z1bman wrote:https://www.ebay.ie/itm/KAWASAKI-Brake-Light-Indicator-Switch-OEM-28019-002-NEW-fits-KZ400-KZ440-Relay-/122297348052?hash=item1c797d6fd4


Thanks z1bman, there seems to be plenty of Z400 ones available in the States, but the wire colour coding is different - does anyone know if they work on the Zeds?

Cheers
Current Bikes:
Phil Churchett's 1976 Z900 A4: PRE 2R https://www.flickr.com/photos/115740825@N05/albums/72157680116996884
1973 XL250 K0 Motosport: UKX 73L
2023 R1250 GSA
Previous Zeds: Z750B1 Twin, Z650B1, Z750E
Top
User avatar
warren3200gt
Hardcore
Hardcore
Posts: 3004
Joined: 13th Jun 2014
Location: Dartford Kent

Re: Z900 rear brake light (outage) switch

#9 PostAuthor: warren3200gt » Tue May 22, 2018 7:54 am

I would imagine they would. Internally I would think they would be identicle and its unlikely KHI would use a different circuit to one they have on other bikes already in use. Probably just a wire colour change :?:
PUM 488 June 2023
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
Top
User avatar
PAULJAC47
Hardcore
Hardcore
Posts: 3257
Joined: 31st Aug 2008
Location: WOLVO WEST MIDS ENGLAND

Re: Z900 rear brake light (outage) switch

#10 PostAuthor: PAULJAC47 » Tue May 22, 2018 8:09 am

Andrew_s wrote:
z1bman wrote:https://www.ebay.ie/itm/KAWASAKI-Brake-Light-Indicator-Switch-OEM-28019-002-NEW-fits-KZ400-KZ440-Relay-/122297348052?hash=item1c797d6fd4


Thanks z1bman, there seems to be plenty of Z400 ones available in the States, but the wire colour coding is different - does anyone know if they work on the Zeds?

Cheers


To my knowledge Andrew ,yes used a small one recently.think most of the Zed range use a similar unit though size differs.
PAULJAC47,,,,,"She may not look like much, but she's got it where it counts, kid."

-Han Solo



You can't polish a turd, but you can roll it in glitter



Salad is what real food eats.

Anon



PUM 673
Top
User avatar
Andrew_s
Custard Cream
Custard Cream
Posts: 962
Joined: 5th Dec 2016
Location: Farnham, Surrey

Re: Z900 rear brake light (outage) switch

#11 PostAuthor: Andrew_s » Tue May 22, 2018 8:19 am

PAULJAC47 wrote:
Andrew_s wrote:
z1bman wrote:https://www.ebay.ie/itm/KAWASAKI-Brake-Light-Indicator-Switch-OEM-28019-002-NEW-fits-KZ400-KZ440-Relay-/122297348052?hash=item1c797d6fd4


Thanks z1bman, there seems to be plenty of Z400 ones available in the States, but the wire colour coding is different - does anyone know if they work on the Zeds?

Cheers


To my knowledge Andrew ,yes used a small one recently.think most of the Zed range use a similar unit though size differs.


:up Thanks Paul - BTW, PM'd Keith O and waiting to hear back.

Cheers
Current Bikes:
Phil Churchett's 1976 Z900 A4: PRE 2R https://www.flickr.com/photos/115740825@N05/albums/72157680116996884
1973 XL250 K0 Motosport: UKX 73L
2023 R1250 GSA
Previous Zeds: Z750B1 Twin, Z650B1, Z750E
Top
cancunia
Regular Poster
Posts: 63
Joined: 29th Dec 2017
Location: Lincoln

Re: Z900 rear brake light (outage) switch

#12 PostAuthor: cancunia » Tue May 22, 2018 4:12 pm

Aha, I wondered what that bit was for...
Top
User avatar
Andrew_s
Custard Cream
Custard Cream
Posts: 962
Joined: 5th Dec 2016
Location: Farnham, Surrey

Re: Z900 rear brake light (outage) switch

#13 PostAuthor: Andrew_s » Fri Jun 01, 2018 11:44 am

Well, the NOS Z400 brake light switch relay (28019-002) arrived this morning and I've just fitted it and it works fine; comes on with front and back brake and also flashes with the bulb removed so I'm a happy bunny and I've just ordered another one as a spare! :D

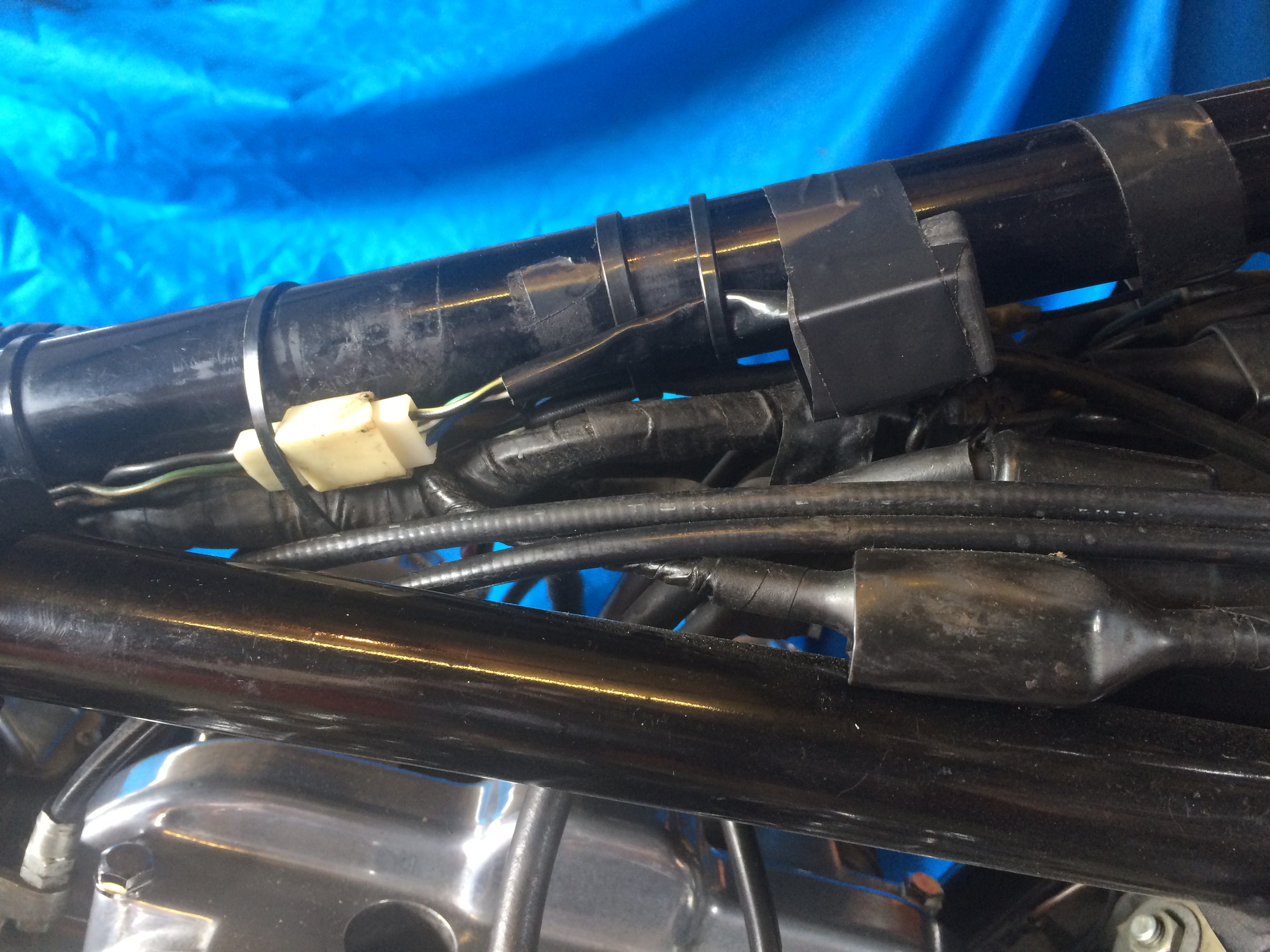

The fitting is a bit Heath Robinson until I sort out a bracket:
