Z1000-A1 Main Loom routing?
Posted: Sat Sep 08, 2018 4:40 pm
Author: DogsbolloxofZ1B
Would someone mind taking an image and show me how the main wiring loom routes from the Brown plug up behind the battery box. I've done what I think should be correct but seems a tad tight.
Re: Z1000-A1 Main Loom routing?
Posted: Sat Sep 08, 2018 5:25 pm
Author: tlc
Mike. From memory the loom has to go between the air box and frame under the forward and upper side panel fixing. The only annoying thing is you may have to remove or at least move the air box to move it there.
Re: Z1000-A1 Main Loom routing?
Posted: Sat Sep 08, 2018 5:59 pm
Author: needaz1100r
Funnily enough, although you'd think it went behind the frame, it doesn't.

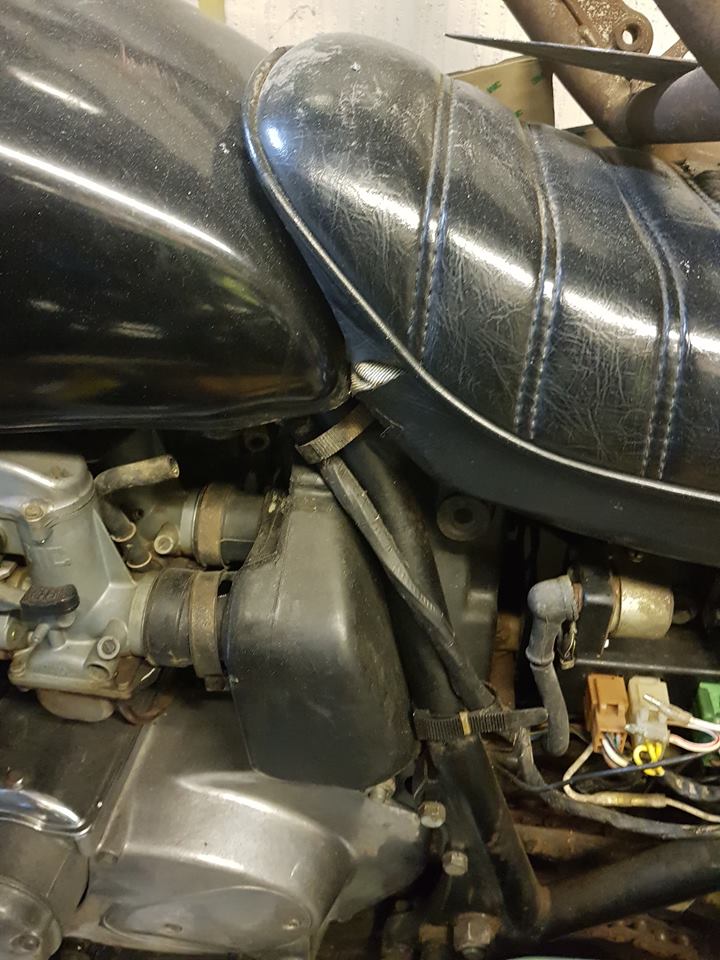

This is a pic of an unrestored 900A4, but Z1000A1 and A2s are the same - the side panel hides it.
- z900 wiring.jpg (102.72 KiB) Viewed 1787 times
