Clutch adjuster J type three bearing.

#1 PostAuthor: Al » Tue Jan 01, 2019 3:17 pm

No problem just want to get photos off my phone and been meaning to do this for a while!




AL
1981 J1

User avatar
8 Valve Mark
Custard Cream
Custard Cream
Posts: 875
Joined: 3rd Nov 2016
Location: Glasgow, tropical west Scotland

Re: Clutch adjuster J type three bearing.

#2 PostAuthor: 8 Valve Mark » Tue Jan 01, 2019 11:13 pm

thanks for sharing that Al :roll: , on behalf of myself and many other intrigued clubsters..happy new year mate!!! m

User avatar
rickm
100Club
100Club
Posts: 318
Joined: 8th Aug 2017
Location: Birmingambridge

Re: Clutch adjuster J type three bearing.

#3 PostAuthor: rickm » Wed Jan 02, 2019 9:57 am

Apols if I've missed something from an earlier thread, but are those parts standard or something you've fabricated?
I've had a bit of an issue with my clutch adjuster mech recently.
Z1000J ELR US style, S3 400 triple, H2 750 project

User avatar
Al
Hardcore
Hardcore
Posts: 2431
Joined: 21st Oct 2007
Location: Farnbronx, Sin City, N.E. Hants

Re: Clutch adjuster J type three bearing.

#4 PostAuthor: Al » Wed Jan 02, 2019 10:51 am

Cheers Mark have a great new year.

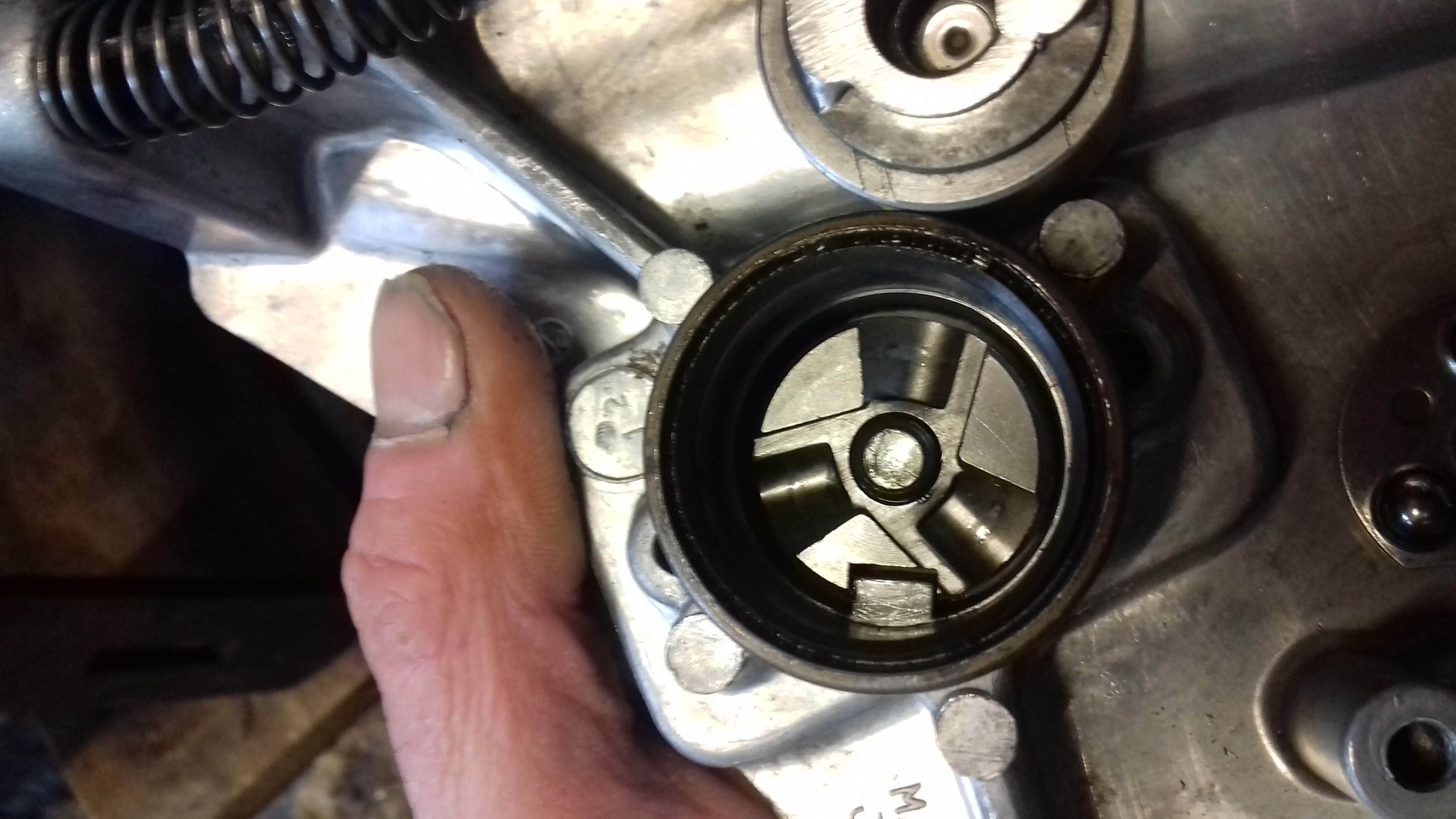

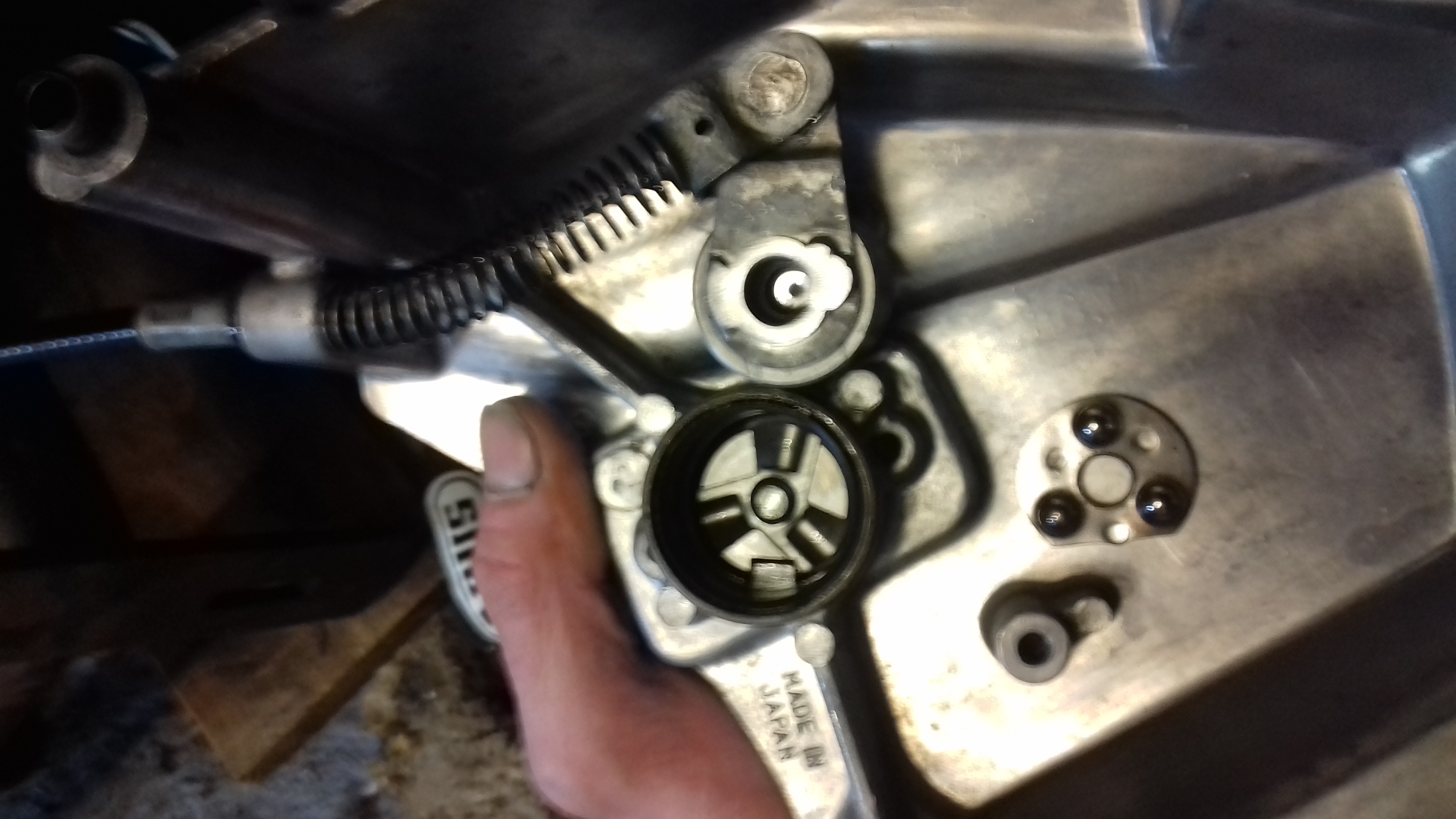

Rick youve not missed anything. I was making a silver steel pushrod just before christmas and whilst there i gave it another looking at and fiddled with it all a bit. I spent an hour on the phone with a friend of mine recently (few months back) trying to describe all the bits and how they are orientated to fix his one. Needed to cull my phone gallery and since this has come up before...
They are standard parts but there are two versions. One is a helical spiral, this one seems less flakey so went with it. Looking at the way it had worn previously; i had re-shaped the clevis on the end of the cable, drilled out the rivet and increased the diameter with a new one. I thickened the operating arm on the end where the rivet goes through and changed the angle of the arm relative to the mechanism. Return spring is a little longer, a little stiffer because the distance from the cable restraint to the arm is a wee bit more. Just replaced the clutch lever as that was badly worn and with all the above taken together its very light which is just as well with a six spring clutch, up-rated clutch springs and an extra plain plate!!!

AL
1981 J1

User avatar
rickm
100Club
100Club
Posts: 318
Joined: 8th Aug 2017
Location: Birmingambridge

Re: Clutch adjuster J type three bearing.

#5 PostAuthor: rickm » Wed Jan 02, 2019 11:57 am

So you effectively refurbed and upgraded the standard mech. Mine currently has a lot of the wear / slack in the various components, so might attempt something similar :up

The thread on the adjuster nut that goes through the casing is partially stripped too, but I can't seem to find a replacement part on-line as yet. I could probably make something that would do the job if necessary. Any suggestions?
Z1000J ELR US style, S3 400 triple, H2 750 project

User avatar
Al
Hardcore
Hardcore
Posts: 2431
Joined: 21st Oct 2007
Location: Farnbronx, Sin City, N.E. Hants

Re: Clutch adjuster J type three bearing.

#6 PostAuthor: Al » Wed Jan 02, 2019 12:43 pm

All the gubbins appears to be still available currently!!
Nut is 8mm so any non locking half nut would probably do.
Alternatively depending on whats tired out; if its the thread on the adjuster peg you could put a washer behind the nut to get the nut onto a more useable part of the thread. Or the same washer; inside the case on the threaded adjuster but between its shoulder and the case itself!

https://www.cmsnl.com/kawasaki-kz1000j1 ... 62026.html

AL
1981 J1

User avatar
chrisNI
Site Admin
Posts: 2960
Joined: 22nd Dec 2001
Location: NI

Re: Clutch adjuster J type three bearing.

#7 PostAuthor: chrisNI » Thu Jan 03, 2019 1:57 am

Al wrote:They are standard parts but there are two versions.
AL


I only noticed this very fact earlier this evening I was rooting about trying to find all the carefully stored :shock: parts for my 1000R and for a horrible moment I thought I had lost half this mechanism, then I realised the spare casing with the assembled mechanism I was comparing it to was entirely different (the more elaborate one) even though the casings look the same. I think the spare one is off a GPz. The gear lever mounting on the casing is different too, never noticed these differences before...

User avatar
rickm
100Club
100Club
Posts: 318
Joined: 8th Aug 2017
Location: Birmingambridge

Re: Clutch adjuster J type three bearing.

#8 PostAuthor: rickm » Thu Jan 03, 2019 12:15 pm

Don't suppose anyone has a photo of the other version with the helical spiral?
(EDIT: just seen the diagram of the other mech on the previous link)

Are the two mechs fully interchangeable?
Z1000J ELR US style, S3 400 triple, H2 750 project

User avatar
8 Valve Mark
Custard Cream
Custard Cream
Posts: 875
Joined: 3rd Nov 2016
Location: Glasgow, tropical west Scotland

Re: Clutch adjuster J type three bearing.

#9 PostAuthor: 8 Valve Mark » Thu Jan 03, 2019 1:13 pm

rick, i have a spare complete worm-screw adjuster assembly i could live without if you're stuck.. m

User avatar
rickm
100Club
100Club
Posts: 318
Joined: 8th Aug 2017
Location: Birmingambridge

Re: Clutch adjuster J type three bearing.

#10 PostAuthor: rickm » Thu Jan 03, 2019 4:08 pm

Are the engine casings different to accommodate the different adjuster mechs?
Z1000J ELR US style, S3 400 triple, H2 750 project

User avatar
chrisNI
Site Admin
Posts: 2960
Joined: 22nd Dec 2001
Location: NI

Re: Clutch adjuster J type three bearing.

#11 PostAuthor: chrisNI » Thu Jan 03, 2019 4:35 pm

No they appear to be slightly different the worm drive version is held in by a plate with two bolts the other one just seems to stay together with pressure from the pushrod and so it has no bolt holes and the turret thing seems deeper.

User avatar
Al
Hardcore
Hardcore
Posts: 2431
Joined: 21st Oct 2007
Location: Farnbronx, Sin City, N.E. Hants

Re: Clutch adjuster J type three bearing.

#12 PostAuthor: Al » Thu Jan 03, 2019 4:59 pm

As Chris says the casings are cast the same (very similar?) but machined differently so they are not interchangeable.



AL
1981 J1

User avatar
8 Valve Mark
Custard Cream
Custard Cream
Posts: 875
Joined: 3rd Nov 2016
Location: Glasgow, tropical west Scotland

Re: Clutch adjuster J type three bearing.

#13 PostAuthor: 8 Valve Mark » Thu Jan 03, 2019 5:47 pm

Al's link above leads to a compatibility list, when the part is clicked on..my one (z1000a) showed up as suitable for 34 models inc j1+j2. it looks similar physically.. m

ZedHead
Hardcore
Hardcore
Posts: 2717
Joined: 9th May 2009
Location: Darlington
Contact:

Re: Clutch adjuster J type three bearing.

#14 PostAuthor: ZedHead » Thu Jan 03, 2019 5:58 pm

rickm wrote:Are the engine casings different to accommodate the different adjuster mechs?


No but the PMC easy clutch kit has an adapter for earlier bike with worm gear

User avatar
swampy
Custard Cream
Custard Cream
Posts: 593
Joined: 10th Jan 2016
Location: Croydon

Re: Clutch adjuster J type three bearing.

#15 PostAuthor: swampy » Fri Jan 04, 2019 10:47 am

In the cmsl diagram I noticed that there is a comp clutch release, does this give any additional leverage/ pull over the original. And does it need any additional items to work other than the standard ones. As it looks as though it may be a cheaper alternative to the PMC kit.
Motor biking, motor biking, going down the queens highway like a rasher streaky bacon!
