Re: Z1000-A1 Restomod

#31 PostAuthor: TiBolts » Mon Feb 22, 2021 8:57 pm

JimBoUK wrote:Looking really good.
It’s exciting getting to the stage where the finished bits start going back together


Cheers yes it's starting to come together. Hopefully will make good progress in the next few weeks...
:mrgreen: ZX600-F3 and 2006 Bonneville T100 and Z1000-A1 (coming together)

User avatar
TiBolts
100Club
100Club
Posts: 116
Joined: 23rd Jan 2019
Location: Gloucestershire

Re: Z1000-A1 Restomod

#32 PostAuthor: TiBolts » Wed Feb 24, 2021 12:35 pm

And there's more...
Got the selector mechanism assembled and checked all the gears appear to work... :up

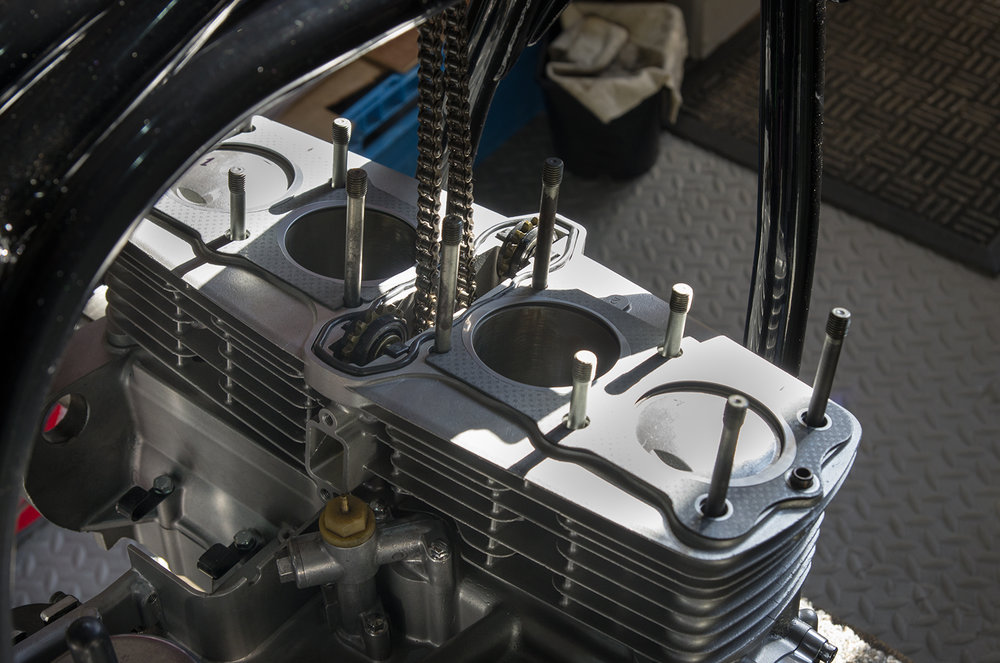

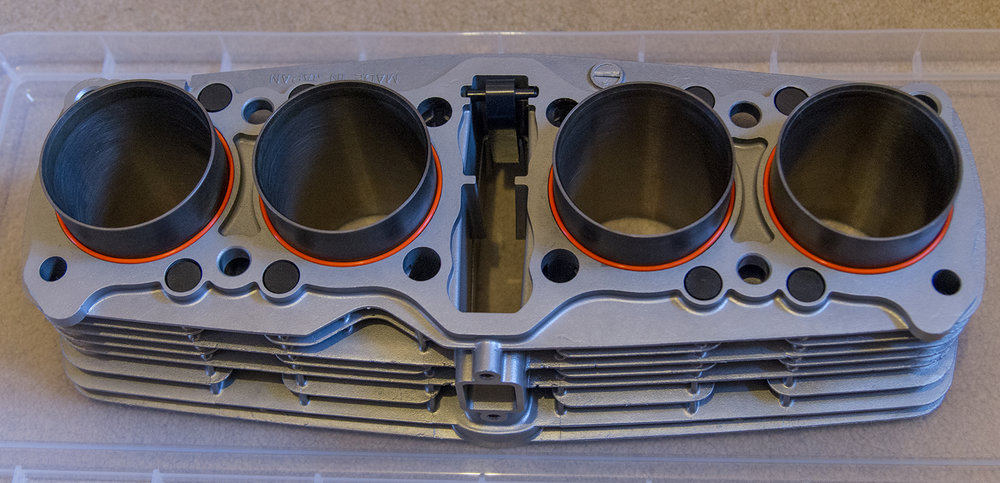

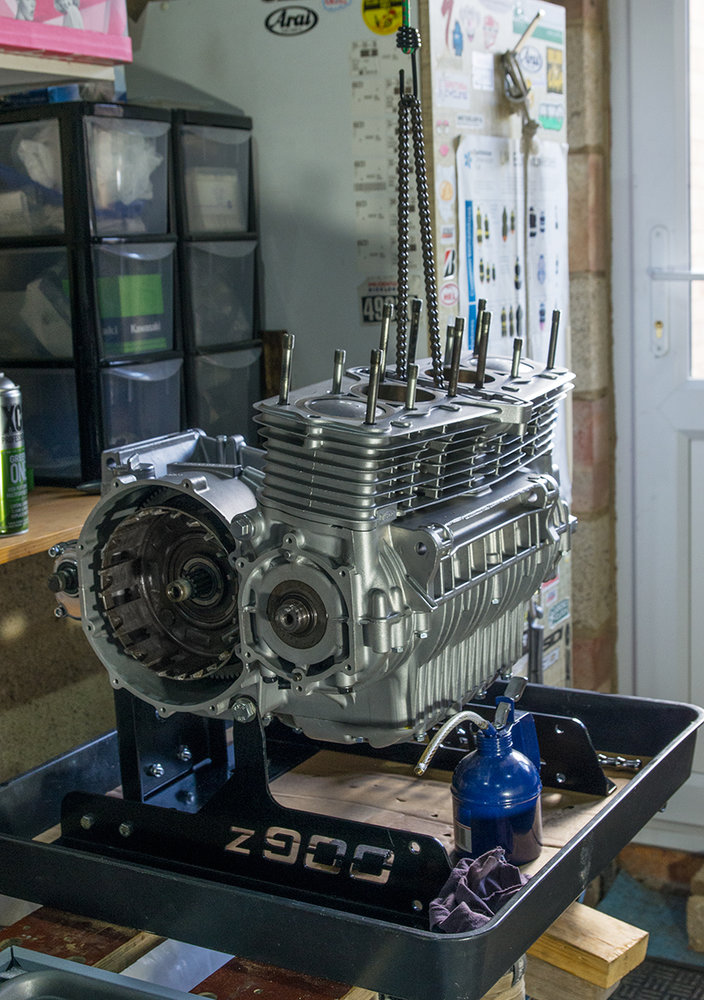

Prepared to put the barrels on... that was a bit stressful but I think I managed to do it without breaking any rings. Those oil rings are a bugger though - once they're on the piston, each end does like to tucking under each other rather than butting up.
I used Laser piston ring compressors, which worked pretty well - the biggest issue was keeping the pistons level. I was using bits of wood, but a proper tool would have made life much easier. Hey ho. Engine seems to turn over smoothly though - and of course it's pretty snug because it's had a rebore.

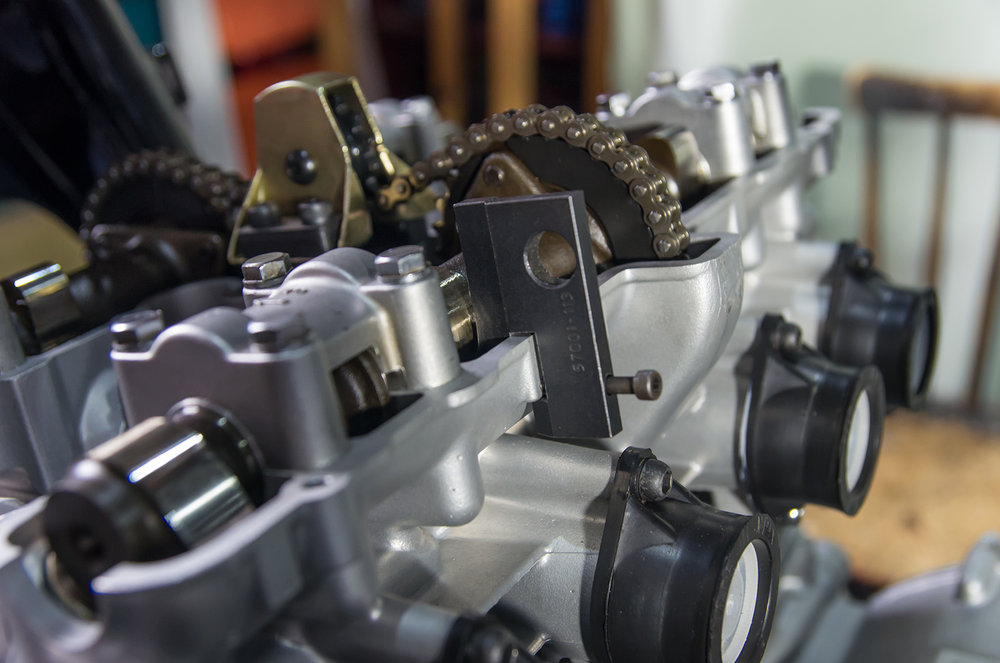

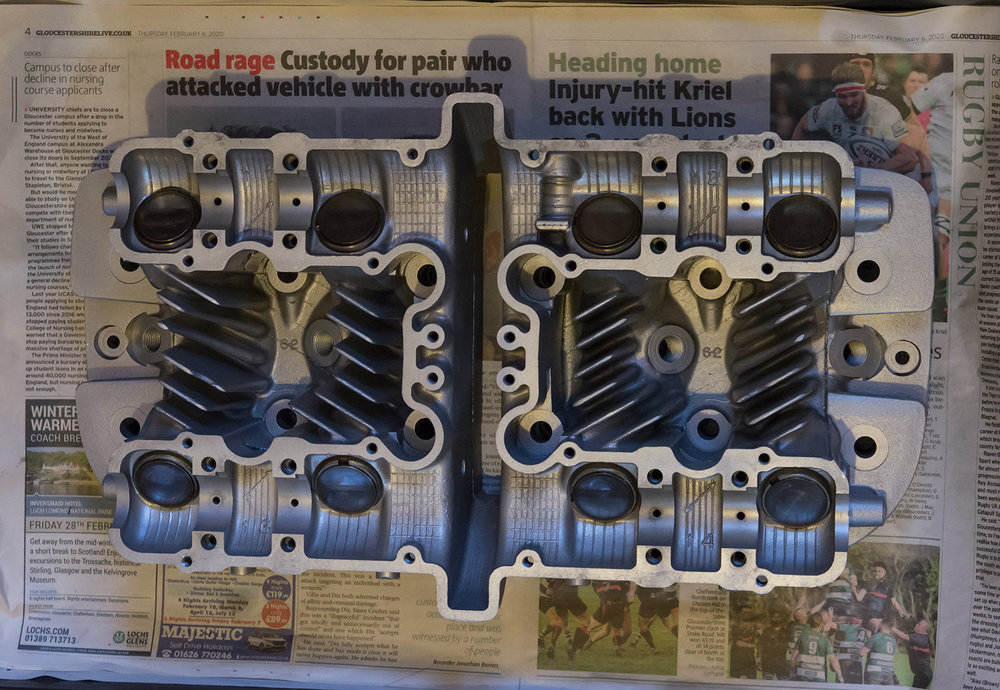

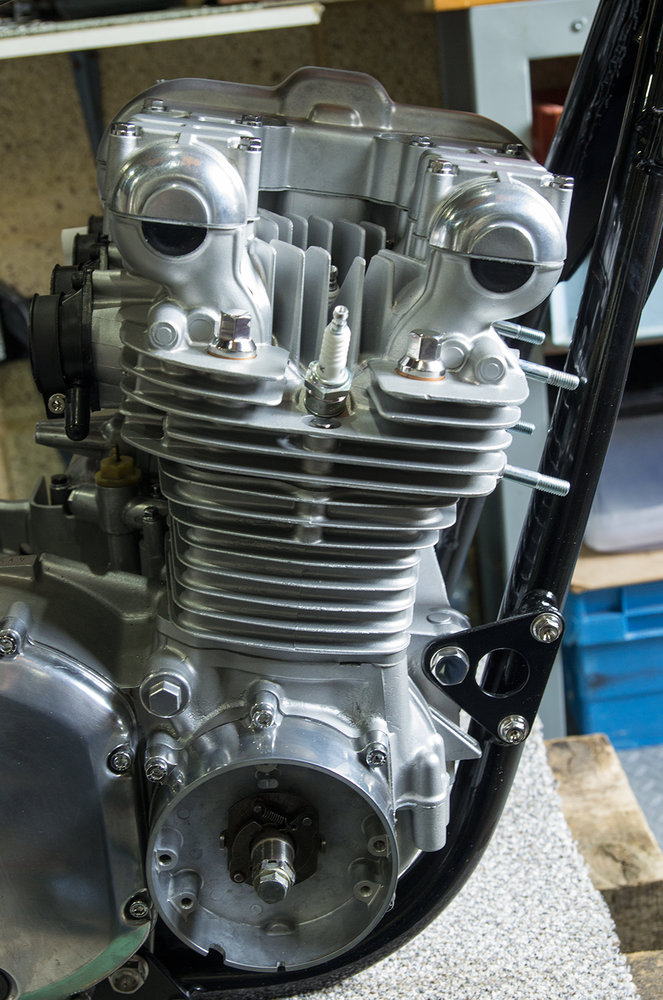

Then I lapped the valves in and refitted them with new valve stem seals. Head ready to go on soon!

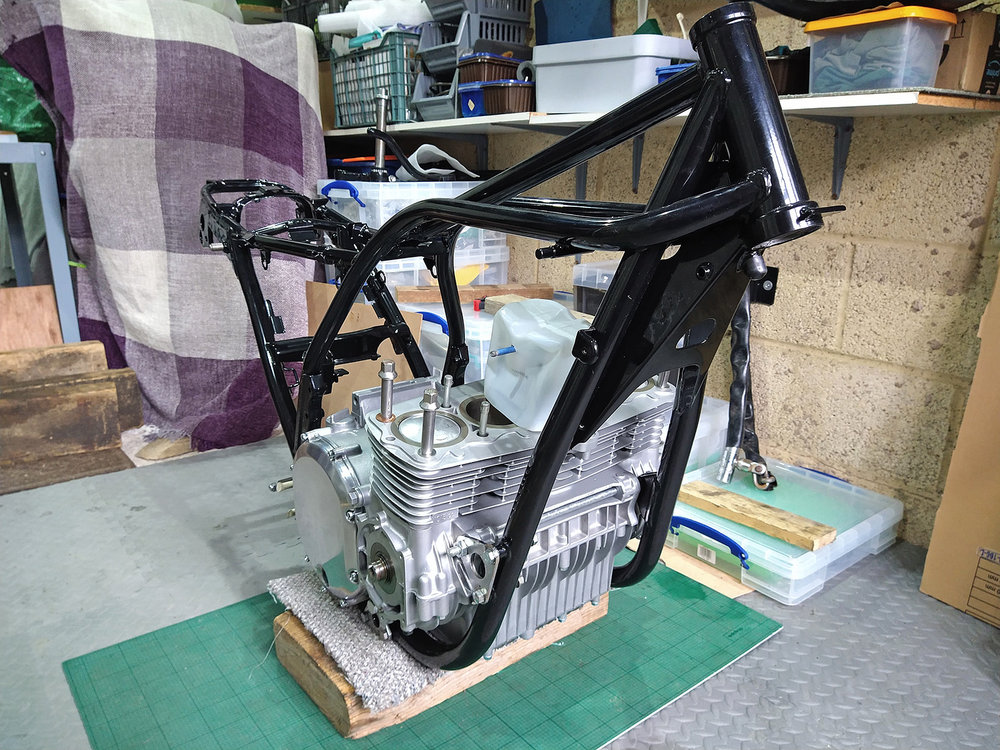

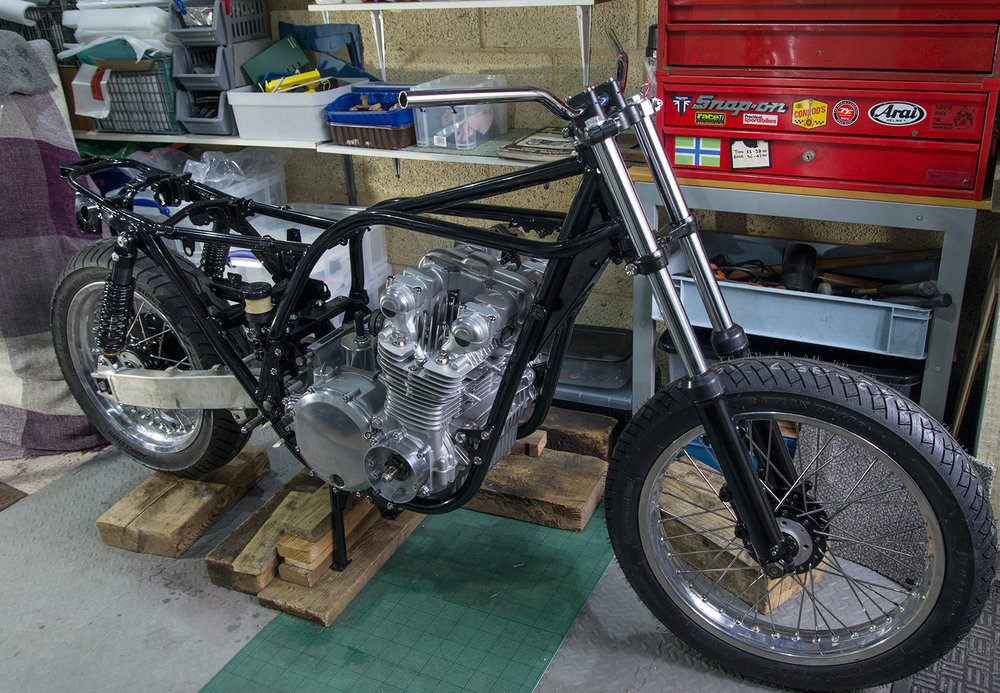

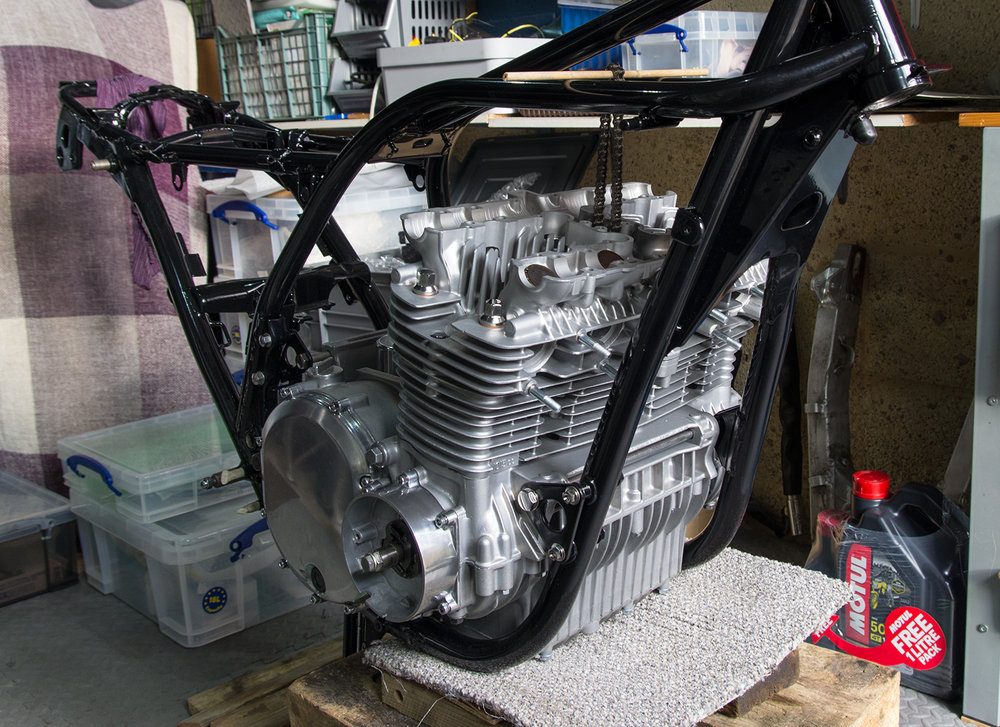

I've put the engine as it is so far in the frame, as it's easier to lift the frame over the motor when you only have your wife to help and with lockdown you can't really get someone strong round to help...

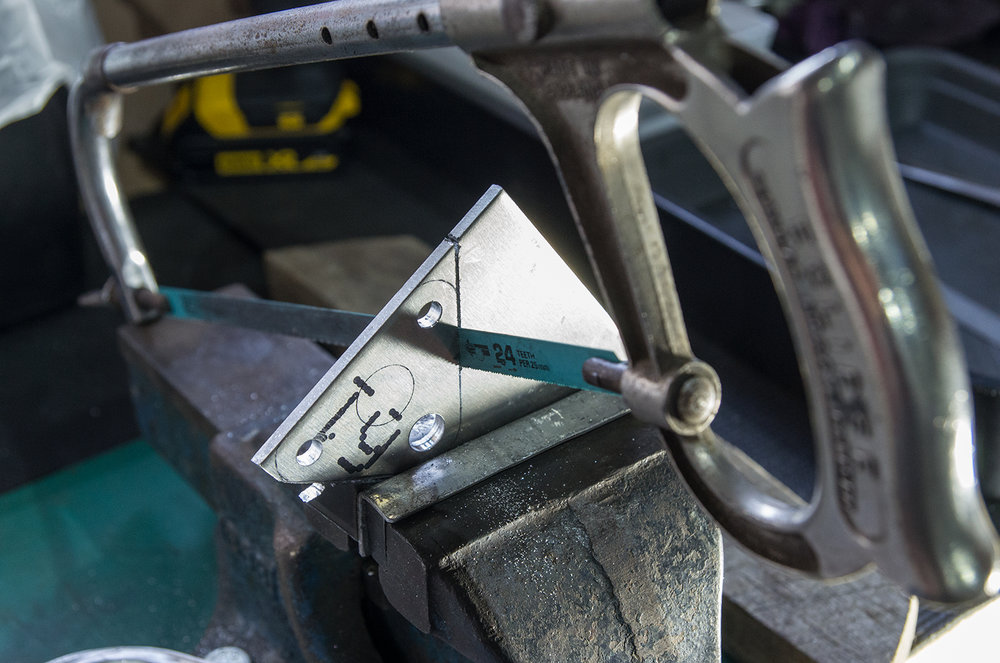

I've since added the timing advancer, the oil breather and oil pressure switch. I've been farting around with engine mounting brackets cobbled together as these were missing when I got the bike. The ones in the photo are some second hand chromed ones I got, but the chrome it flaking off. I also had another set which were normal black paint and rust, so I've rubbed them down and resprayed them. Soon to be reassembled with new bolts and spacers.
Attachments
:mrgreen: ZX600-F3 and 2006 Bonneville T100 and Z1000-A1 (coming together)

User avatar
Ultim8pc
Hardcore
Hardcore
Posts: 1698
Joined: 5th Sep 2014
Location: Keighley, West yorkshire
Contact:

Re: Z1000-A1 Restomod

#33 PostAuthor: Ultim8pc » Wed Feb 24, 2021 1:12 pm

Coming together nicely!
http://www.airevalleyclassics.co.uk
http://www.quick-glo.co.uk
ZRX1200r - on the road
z900a5 - on the road
z1a - to restore
Z1000 MK2 - to restore
z1000a1 - In bits
z1000ST - in bits

User avatar
TiBolts
100Club
100Club
Posts: 116
Joined: 23rd Jan 2019
Location: Gloucestershire

Re: Z1000-A1 Restomod

#34 PostAuthor: TiBolts » Thu Feb 25, 2021 2:35 pm

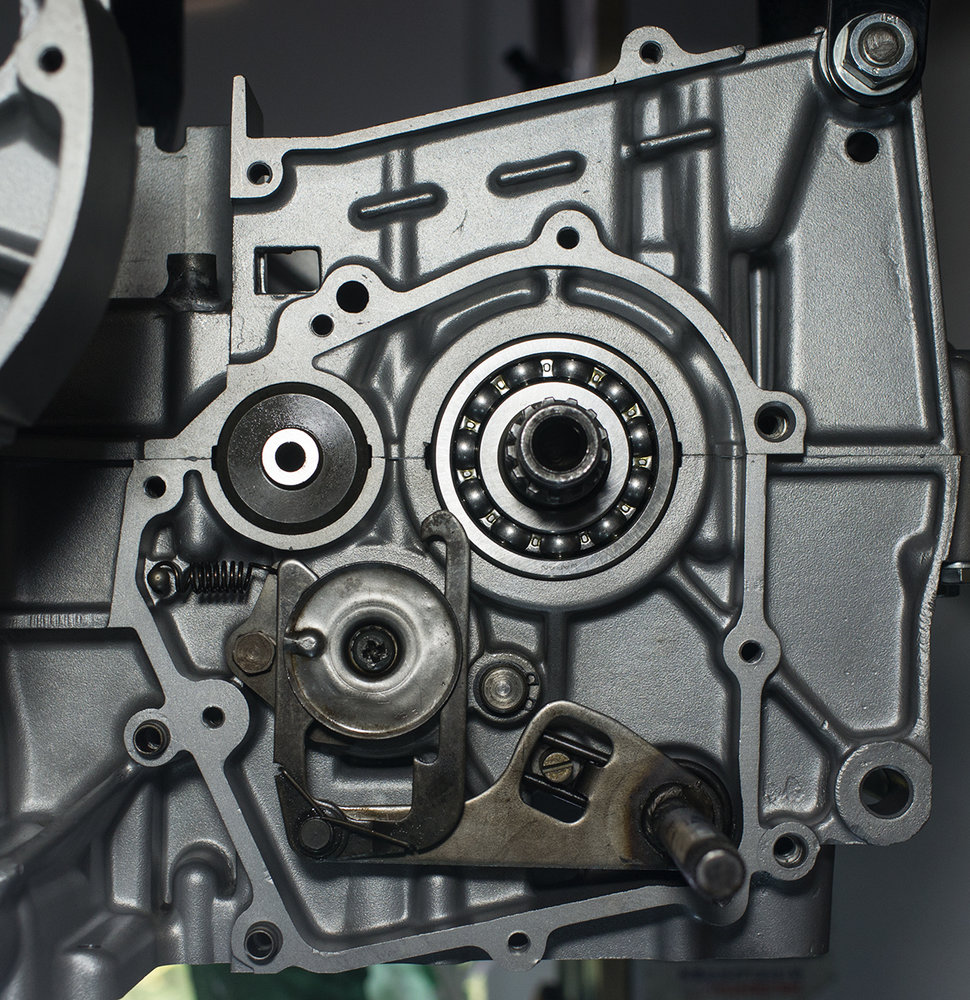

That is a brand new bearing on the output shaft, where the front sprocket goes by the way. I was paranoid about this because back in '87 I had one go when I was at the TT, and of course it's a crankcases split job. It was on a Harris Magnum II that I'd built that year.

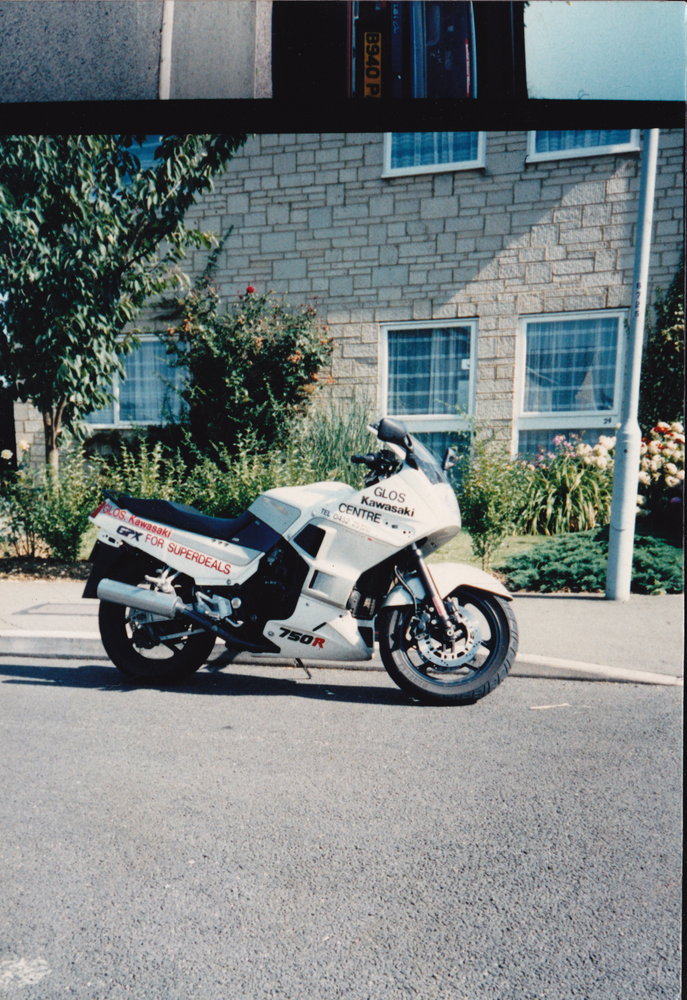

Fortunately someone from my area was doing the proddy race on a GPX750, which belonged to my employer at the time, so he brought the Harris back in his van and I rode the proddy racer back home...
Attachments
:mrgreen: ZX600-F3 and 2006 Bonneville T100 and Z1000-A1 (coming together)

User avatar
chrisNI
Site Admin
Posts: 3224
Joined: 22nd Dec 2001
Location: NI

Re: Z1000-A1 Restomod

#35 PostAuthor: chrisNI » Thu Feb 25, 2021 11:23 pm

TiBolts wrote:Fortunately someone from my area was doing the proddy race on a GPX750, which belonged to my employer at the time, so he brought the Harris back in his van and I rode the proddy racer back home...



:D :D
