Hi kawasaki_man
that's a very nice bike! You did a good job. Congratulations!
Let the good times roll !
GrtZ
Philippe
Hello Guest User,
Please feel free to have a look around the forum but be aware that as an unregistered guest you can't see all of it and you can't post.
To access these 'Registered Users Only' areas simply register and login.
Please feel free to have a look around the forum but be aware that as an unregistered guest you can't see all of it and you can't post.
To access these 'Registered Users Only' areas simply register and login.
Z1B Refresh for 2022 Events
Moderators: chrisu, paul doran, Taffus, KeithZ1R
Re: Z1B Refresh for 2022 Events
the differences between a little boy and an adult man is the price and size of their toys!
Re: Z1B Refresh for 2022 Events
Stunning job, well done! The bike looks great!
Re: Z1B Refresh for 2022 Events

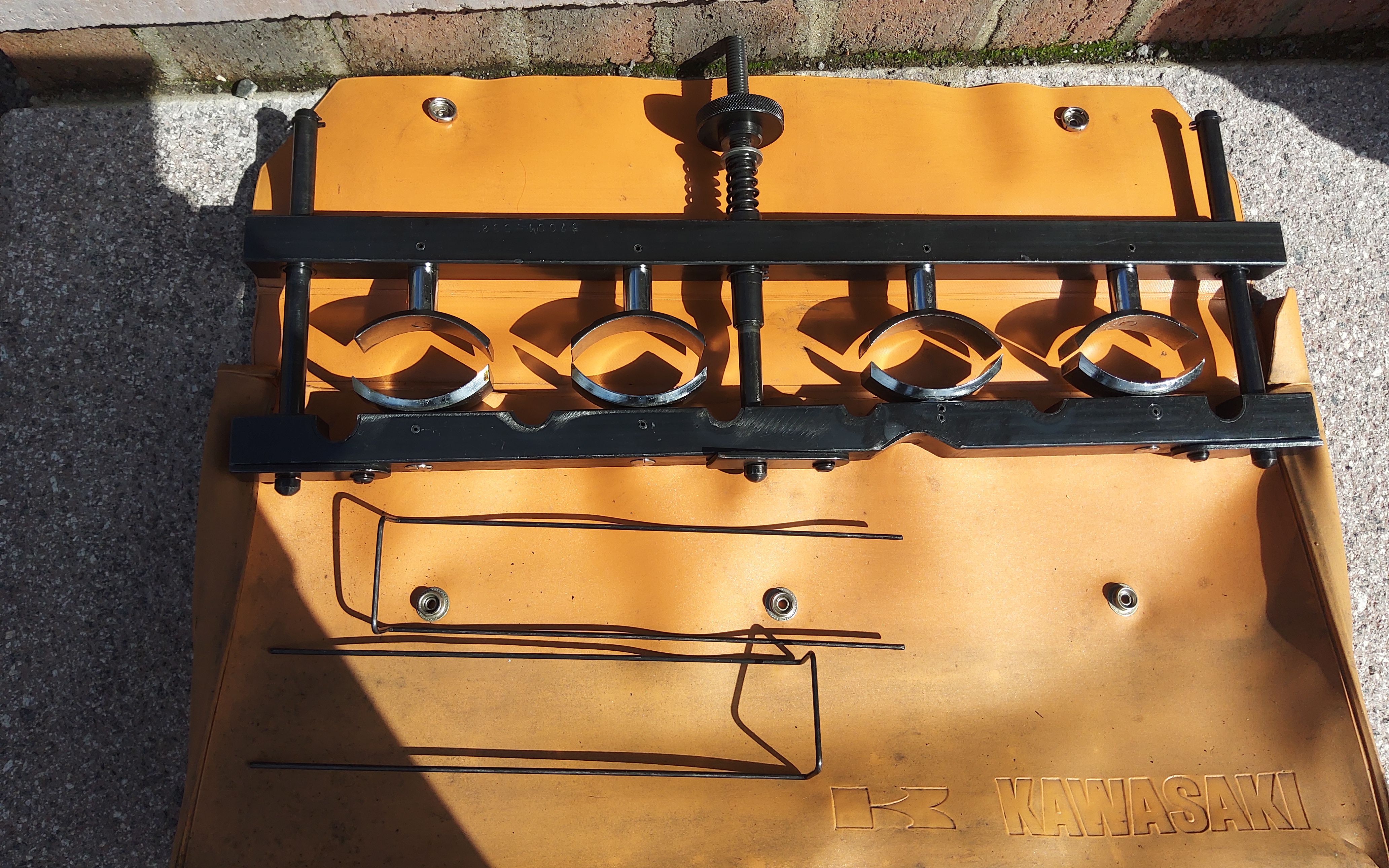

Further to kawasaki-man's comment about the ring compressor. If anyone needs the 900cc version I have the genuine 57001-532 ring compressor (as pic) which I'm happy to loan to PUM's.
If you're local to me (within 50 odd miles of M3 JCT12) I can drop off (make sure the kettle's on) or you can collect (the kettle will definitely be on), or if not I can send insured post (and would want it returned by same method) if you pay the postal charges.
Lovely Z1-B by the way kawasaki-man. Excellent work there.
If you're local to me (within 50 odd miles of M3 JCT12) I can drop off (make sure the kettle's on) or you can collect (the kettle will definitely be on), or if not I can send insured post (and would want it returned by same method) if you pay the postal charges.
Lovely Z1-B by the way kawasaki-man. Excellent work there.
Z1-B, 400bhp ZX1000NGF
90% of questions that begin "Why..." can be answered with "Because people are stupid."
90% of questions that begin "Why..." can be answered with "Because people are stupid."
Re: Z1B Refresh for 2022 Events
Hi, i am just getting ready to replace my barrells back onto my pistons after full engine strip for vapour blasting and replacement of several internal components.
I have noticed reference to the 'Kawasaki specoal tool' and im guessing it holds all pistons at the same height and stops them rocking on the gudgeon pins? The Haynes manual states the job can be done without by doung the centre 2 pistons at max height then lowering to the outer 2. The bores have a generous lead in which makes entering the rings with your fingers easier.
Whats your thoughts on this, it sounds easy but may be easier with tool?

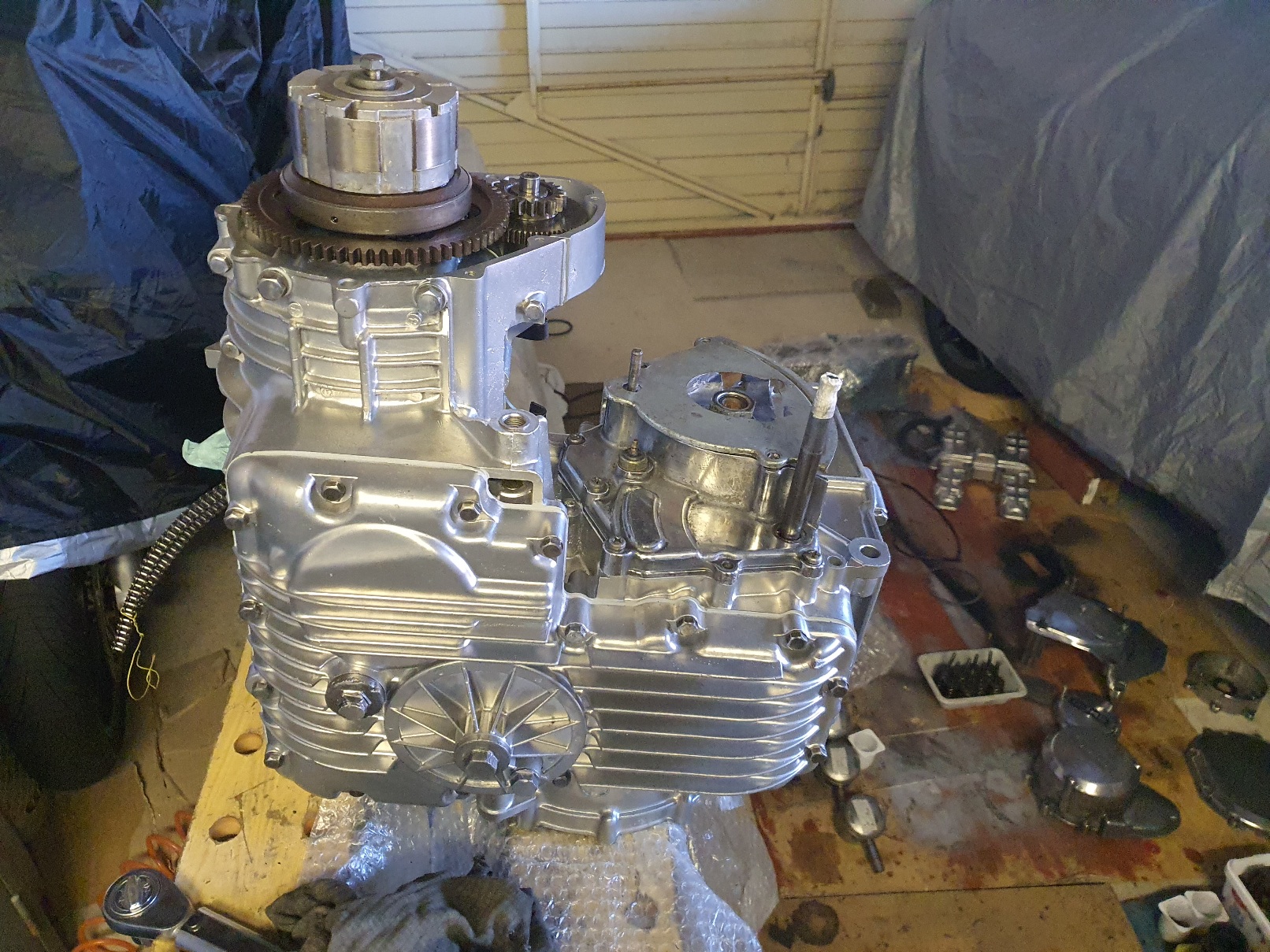

Heres a photo of engine after blasting, just re fitted sump
I have noticed reference to the 'Kawasaki specoal tool' and im guessing it holds all pistons at the same height and stops them rocking on the gudgeon pins? The Haynes manual states the job can be done without by doung the centre 2 pistons at max height then lowering to the outer 2. The bores have a generous lead in which makes entering the rings with your fingers easier.
Whats your thoughts on this, it sounds easy but may be easier with tool?
Heres a photo of engine after blasting, just re fitted sump
- warren3200gt
- Hardcore
- Posts: 2767
- Joined: 13th Jun 2014
- Location: Dartford Kent
Re: Z1B Refresh for 2022 Events
Graham, it's easy as f**K without using special tools. The lead in is long and gradual so as long as its well lubed it almost fall on. Bit of tapping on the cylinder tops with your hand and it's done. I use a bit of pvc drain pipe with a slot down the side and cable tie around it to get the initial lead in.
What are you doing on the base gasket? Clean or sealer?
What are you doing on the base gasket? Clean or sealer?
PUM 488 June 2023
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
Re: Z1B Refresh for 2022 Events
Thanks Warren, sounds easy, was going to put on base gasket without sealer as recomended in manual. When i stripped it it had some sort of sealer on it was a nightmare to get off and the gasket came apart in multiple sections. Also i have fitted the new rubber o rings to the base of the liners however i would have expected them to be a tight fit, but are bit loose, how do you ensure they arn't pinched when seating the block? Also notice manual says line up base gasket oil hole on right, my base gasket doesnt seem to have a hole either side is this correct or should i make one?
Thanks
Thanks
- warren3200gt
- Hardcore
- Posts: 2767
- Joined: 13th Jun 2014
- Location: Dartford Kent
Re: Z1B Refresh for 2022 Events
I've never used sealer on base Gaskets. Not had a leak yet. Remember to re torque the head after a few heat cycles and also after 500 miles.
Once a base gasket leaks it impossible to get it to stop without a full strip and replacement.
Once a base gasket leaks it impossible to get it to stop without a full strip and replacement.
PUM 488 June 2023
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
76 Z900A4, 77 Z650B1, 77 KZ650B1, 77 Z1000A1, 82 Z1000J2, ZRX1100R.
