Fitting 4x4 Exhaust

#1 PostAuthor: Arctic Fox » Tue Jun 30, 2020 7:41 pm

Decided to reunite the A4 with its original exhaust, but am slightly puzzled on the order of bushes and washers onto the hanger. So, from the outside, can someone tell me how they all go together? As I cannot find a diagram showing where it all goes.

1975 Z900 A4

User avatar
steve452
100Club
100Club
Posts: 149
Joined: 3rd Jun 2014
Location: Chandler's Ford

Re: Fitting 4x4 Exhaust

#2 PostAuthor: steve452 » Tue Jun 30, 2020 11:10 pm

If it's the same as the Z1-B then does this help?
Attachments
Muffler mount.docx
(617.25 KiB) Downloaded 40 times
Z1-B (unglued but major glueing now occuring), ZX1000NGF

90% of questions that begin "Why..." can be answered with "Because people are stupid."

User avatar
steve452
100Club
100Club
Posts: 149
Joined: 3rd Jun 2014
Location: Chandler's Ford

Re: Fitting 4x4 Exhaust

#3 PostAuthor: steve452 » Tue Jun 30, 2020 11:22 pm

By the way, the item listed as "10" next to item 17, is actually item 16 (10mm locknut). There are a few errors throughout the schematic as I found to my cost. Not sure if this is an official Kawasaki document but the big K logo is plastered all over the front page and it has "Z1B (Z900) 1975" printed on the bottom right of every page, and a reference to the frame and engine number range covering just the Z1-B. Funny then that it shows the part numbers for all the chain oiler and chain oil tank components even though they weren't fitted to Z1-B's! Like I said, a few errors crept in. :(
Z1-B (unglued but major glueing now occuring), ZX1000NGF

90% of questions that begin "Why..." can be answered with "Because people are stupid."

User avatar
Arctic Fox
Regular Poster
Posts: 81
Joined: 1st Nov 2016
Location: Ascot

Re: Fitting 4x4 Exhaust

#4 PostAuthor: Arctic Fox » Wed Jul 01, 2020 7:19 am

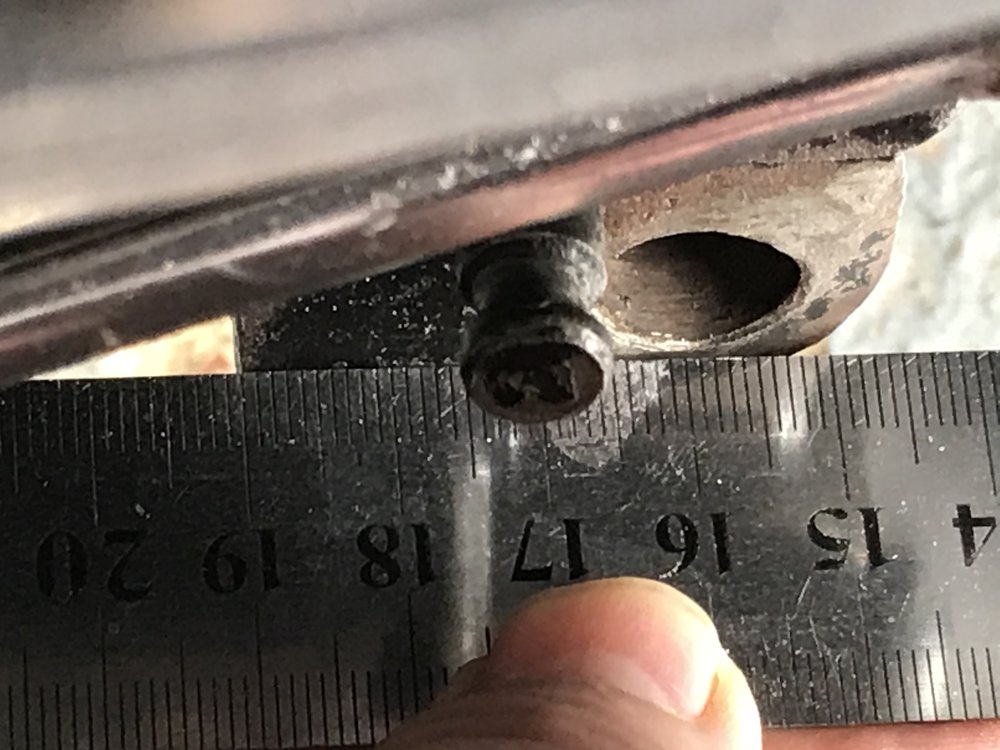

Thanks for that, I had found that diagram, but the bushing are packed as a set of 4, so where do the other 2 go? I figure it must be in the hanger somehow, but my hanger on the inside (where the nut goes) is chamfered.

Offering bits up, the bolt appears to be sized for the two parts of exhaust and two bushes, so do they 'face' each other in the hanger?

1975 Z900 A4

User avatar
z1bman
Hardcore
Hardcore
Posts: 4367
Joined: 3rd Mar 2010
Location: WORDSLEY WEST MIDLANDS

Re: Fitting 4x4 Exhaust

#5 PostAuthor: z1bman » Wed Jul 01, 2020 12:36 pm

Arctic Fox wrote:Thanks for that, I had found that diagram, but the bushing are packed as a set of 4, so where do the other 2 go? I figure it must be in the hanger somehow, but my hanger on the inside (where the nut goes) is chamfered.

Offering bits up, the bolt appears to be sized for the two parts of exhaust and two bushes, so do they 'face' each other in the hanger?


yes that is how they are fitted both bushes fit inside the hanger the kawasaki schematic shows one bush on the outside exhaust but this is wrong as the bushes are two big to fit the hole in which the bolt goes through

User avatar
z1bman
Hardcore
Hardcore
Posts: 4367
Joined: 3rd Mar 2010
Location: WORDSLEY WEST MIDLANDS

Re: Fitting 4x4 Exhaust

#6 PostAuthor: z1bman » Wed Jul 01, 2020 12:36 pm

Arctic Fox wrote:Thanks for that, I had found that diagram, but the bushing are packed as a set of 4, so where do the other 2 go? I figure it must be in the hanger somehow, but my hanger on the inside (where the nut goes) is chamfered.

Offering bits up, the bolt appears to be sized for the two parts of exhaust and two bushes, so do they 'face' each other in the hanger?


yes that is how they are fitted both bushes fit inside the hanger the kawasaki schematic shows one bush on the outside exhaust but this is wrong as the bushes are two big to fit the hole in which the bolt goes through

User avatar
Arctic Fox
Regular Poster
Posts: 81
Joined: 1st Nov 2016
Location: Ascot

Re: Fitting 4x4 Exhaust

#7 PostAuthor: Arctic Fox » Wed Jul 01, 2020 1:49 pm

Thanks guys, only having one washer now also makes sense.

1975 Z900 A4

User avatar
Arctic Fox
Regular Poster
Posts: 81
Joined: 1st Nov 2016
Location: Ascot

Re: Fitting 4x4 Exhaust

#8 PostAuthor: Arctic Fox » Sat Jul 04, 2020 5:43 pm

So, the saga continues...

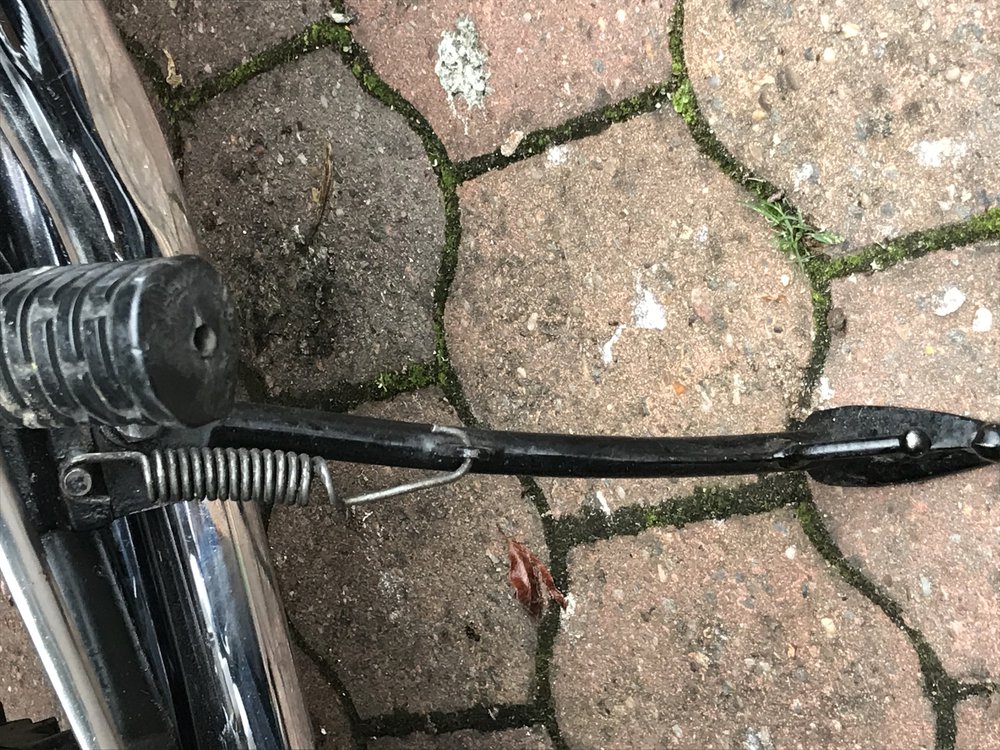

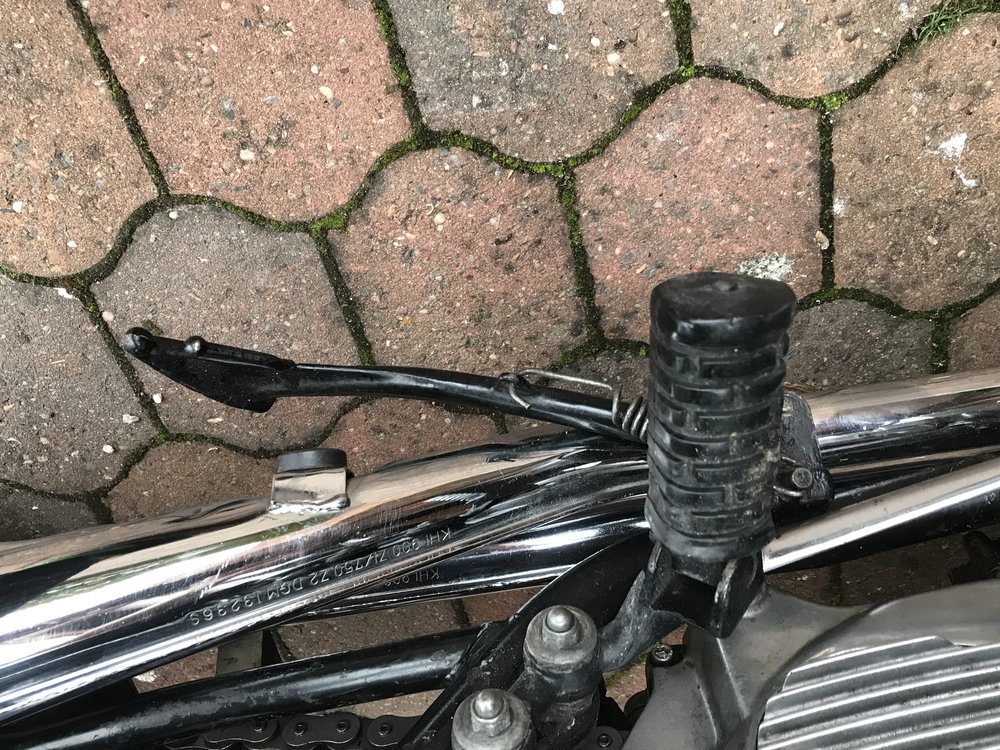

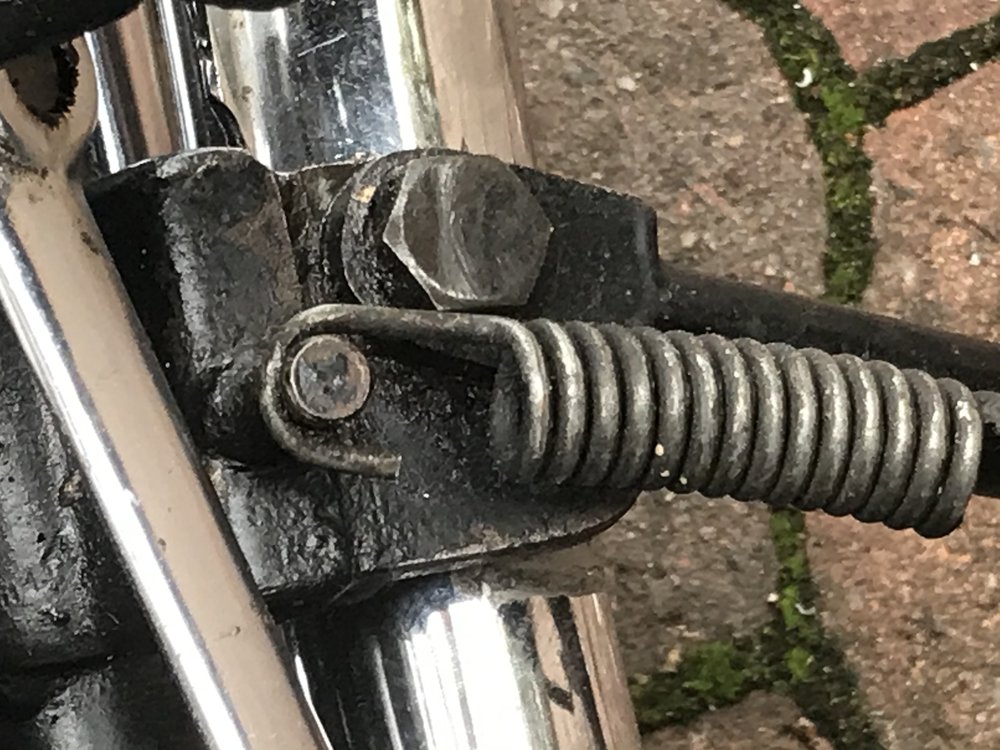

Are side stands normally this bent? As you can see mine now doesn't come up onto the rubber rest, it did, so how do I adjust it? Any ideas as I'm sure this issue has been seen before.

1975 Z900 A4

Adrianbrooksbank
Regular Poster
Posts: 19
Joined: 23rd Oct 2015

Re: Fitting 4x4 Exhaust

#9 PostAuthor: Adrianbrooksbank » Tue Jul 07, 2020 6:47 pm

Just looked at mine,it is straight and goes up to the exhaust but still does not touch rubber properly and never has,mine has Z1B exhausts on Z900A4 but the original ones were genuine A4 and we're still the same probably due to accident at some time probably,this is a replacement standard side stand which is exactly the same .Hope this helps

User avatar
Arctic Fox
Regular Poster
Posts: 81
Joined: 1st Nov 2016
Location: Ascot

Re: Fitting 4x4 Exhaust

#10 PostAuthor: Arctic Fox » Sun Jul 12, 2020 11:57 am

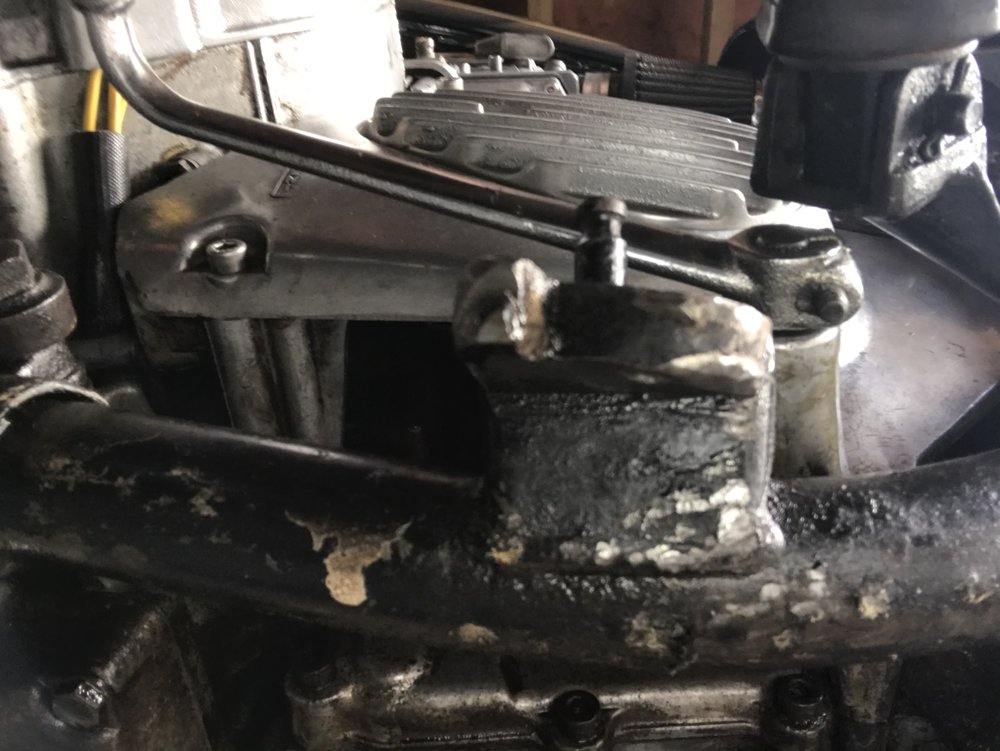

Took the stand off yesterday and the mount appears to have a curve in it. I suspect this is not normal? Any ideas on straightening it as it’s a bit of a lump of metal!
Attachments

1975 Z900 A4

User avatar
z1bman
Hardcore
Hardcore
Posts: 4367
Joined: 3rd Mar 2010
Location: WORDSLEY WEST MIDLANDS

Re: Fitting 4x4 Exhaust

#11 PostAuthor: z1bman » Sun Jul 12, 2020 5:57 pm

the welded mount bracket is bent as a result of previous owners sitting on the bike with the side stand down
