Please excuse silly question.....
Lock washer for the Unitrack gearbox sprocket nut is dished. Which way round should it go? Does the nut sit in what is a concave shape or should it be the other way round? Can't tell from the parts diagram and I've loaned my workshop manual to someone.
Hello Guest User,
Please feel free to have a look around the forum but be aware that as an unregistered guest you can't see all of it and you can't post.
To access these 'Registered Users Only' areas simply register and login.
Please feel free to have a look around the forum but be aware that as an unregistered guest you can't see all of it and you can't post.
To access these 'Registered Users Only' areas simply register and login.
Unitrak Gearbox Sprocket lock washer
Moderators: chrisu, paul doran, Taffus, KeithZ1R
-
martinz1000r
- Custard Cream
- Posts: 919
- Joined: 1st Jul 2007
- Location: Oxfordshire
Unitrak Gearbox Sprocket lock washer
Z1000R, Moto Martin GPz, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, SP1 Hoonda x 2, Katana 1100, Bimota SB6R and Tuatara
Re: Unitrak Gearbox Sprocket lock washer

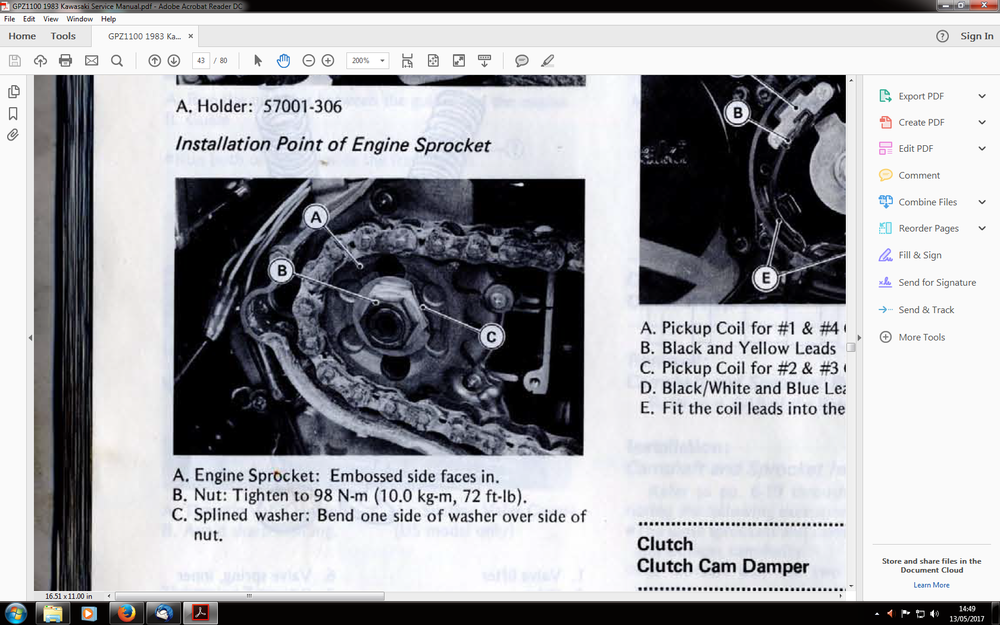

This is the pic from the Unitrak manual.
Is the sprocket off-set and dished inside causing the washer to be dished?
According to this it appears flat!
AL
Is the sprocket off-set and dished inside causing the washer to be dished?
According to this it appears flat!
AL
1981 J1
-
martinz1000r
- Custard Cream
- Posts: 919
- Joined: 1st Jul 2007
- Location: Oxfordshire
Re: Unitrak Gearbox Sprocket lock washer
Thanks Al, it is dished but I suspect as torqued down it will flatten out allowing the edge to be bent over as per the picture
Z1000R, Moto Martin GPz, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, SP1 Hoonda x 2, Katana 1100, Bimota SB6R and Tuatara
Re: Unitrak Gearbox Sprocket lock washer
If it's dished you always fit them with the dished centre facing out towards the nut.
