Zed 900 road racer - Updated with fixed links.

#1 PostAuthor: zed1015 » Sun Jun 12, 2011 11:35 pm

1428cc supercharged Light weight animal.
Daytime mot.
no lights (Except for a brake light) .
No frills (Except for a supercharger)
And no frame :D .(Well! not in the first pic anyway)
And everything (nearly) done in the shed with my large selection of hammers :shock:

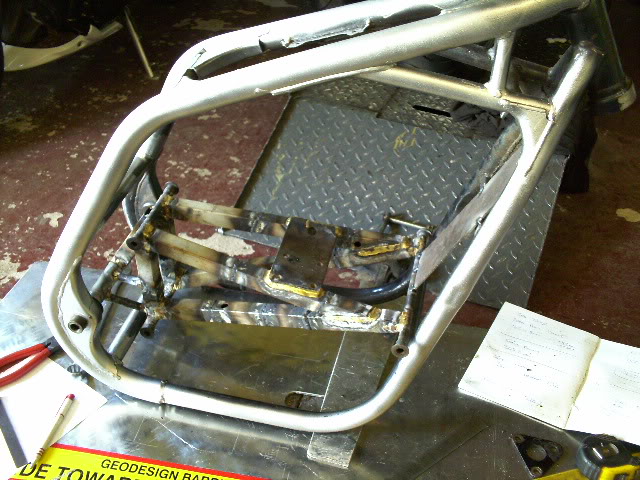

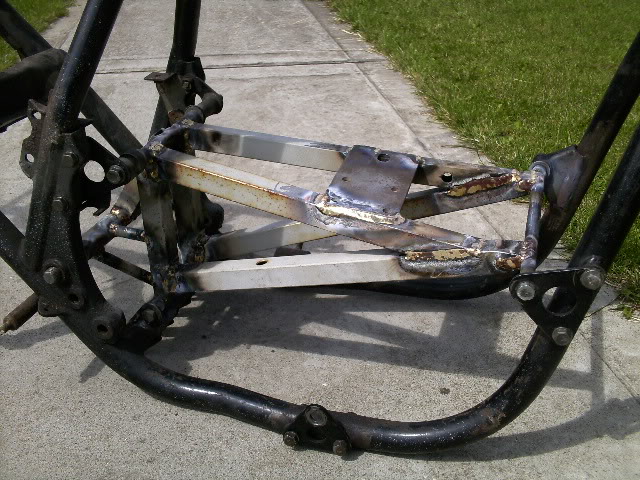

Swingarm pivot mounted jig built to transfer engine mount points over to a soon to be very modified 750 Zephyr frame.

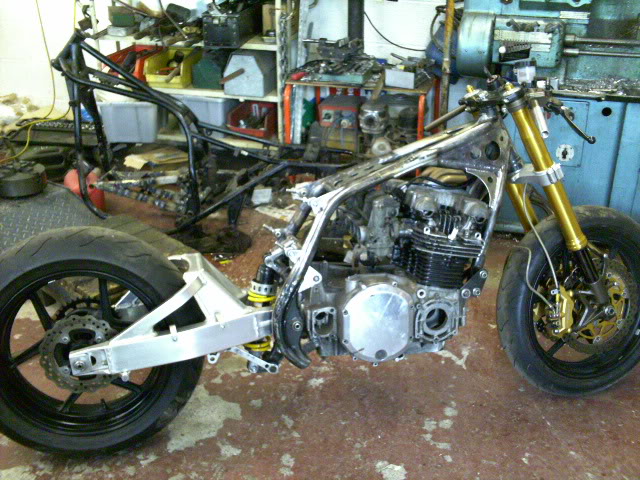

Zed motor,now a stressed member squeezed into 750 Zeph frame with the aid of a hacksaw and vaseline.

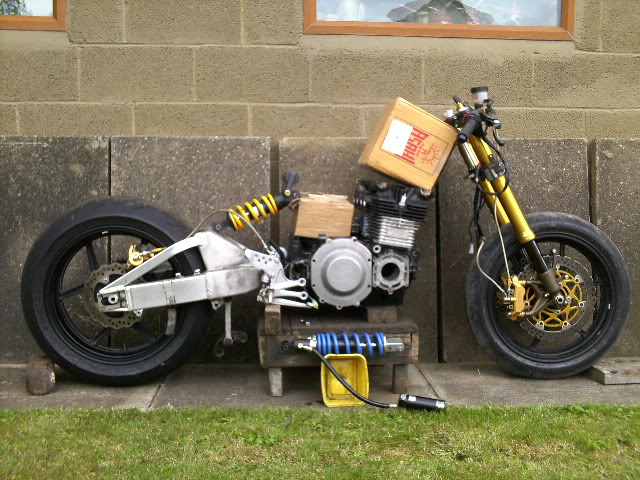

05 zx10r wheels forks and suzuki srad swinger and wooden mainstand

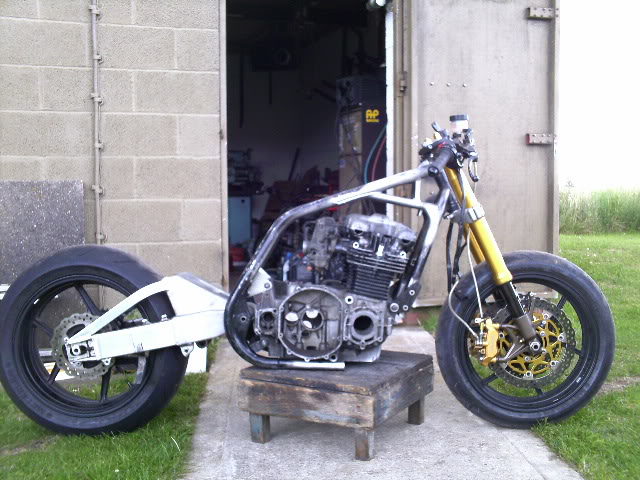

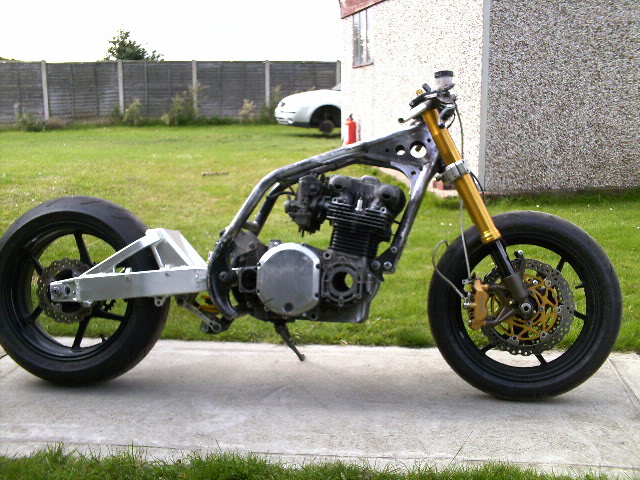

On its wheels.
Frame braced with rear suspension fitted, swinger changed to gixer 1000k4.



Subframe mounts welded on

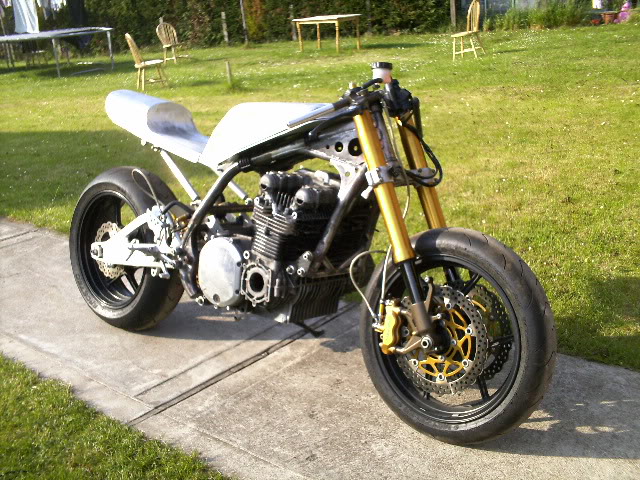

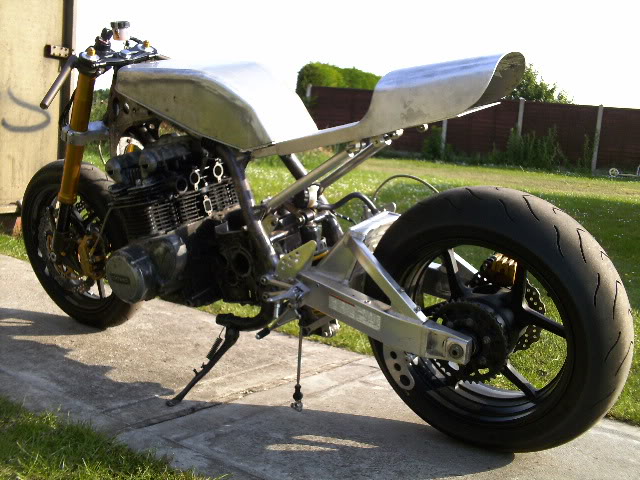

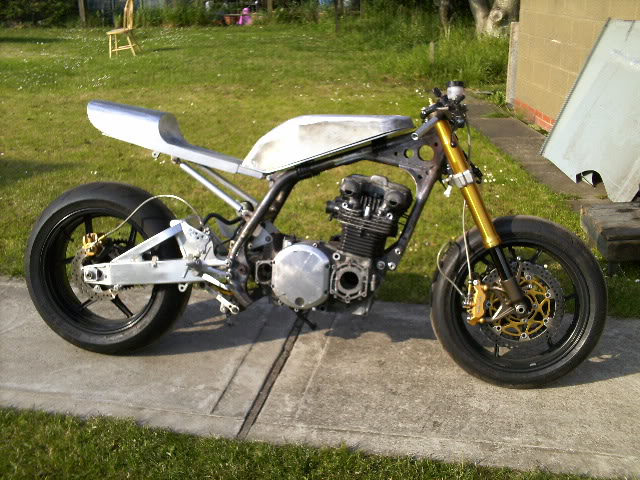

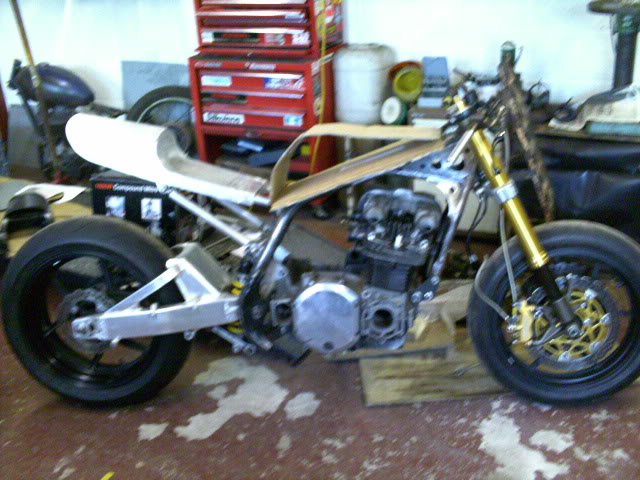

Alloy subframe and (roadsign) seat fitted



Footrests fitted and fuel tank is a work in progress







Last edited by zed1015 on Tue May 31, 2022 11:02 am, edited 21 times in total.
Top
User avatar
wierac21
Regular Poster
Posts: 37
Joined: 3rd Aug 2009
Location: USA, Ohio

#2 PostAuthor: wierac21 » Mon Jun 13, 2011 12:05 am

Keep em coming :clap
Top
sanderz
Custard Cream
Custard Cream
Posts: 848
Joined: 2nd Mar 2010
Location: Manchester

#3 PostAuthor: sanderz » Tue Jun 14, 2011 8:33 am

Another work of art in the making.

1428..... & supercharger :shock: holy moly!!
Wots up DOHC
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 3894
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#4 PostAuthor: zed1015 » Thu Jun 23, 2011 11:16 pm

PETROL TANK - PROGRESS SO FAR.

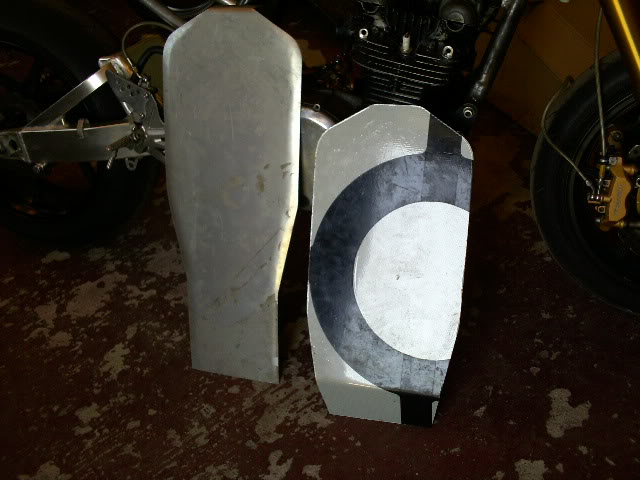

Started out life as a wayward road sign :wink: .

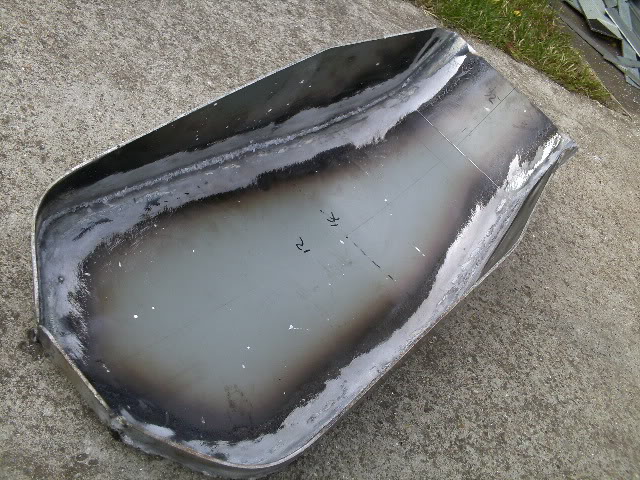

Upper shell welded inside


And out




TODAY.

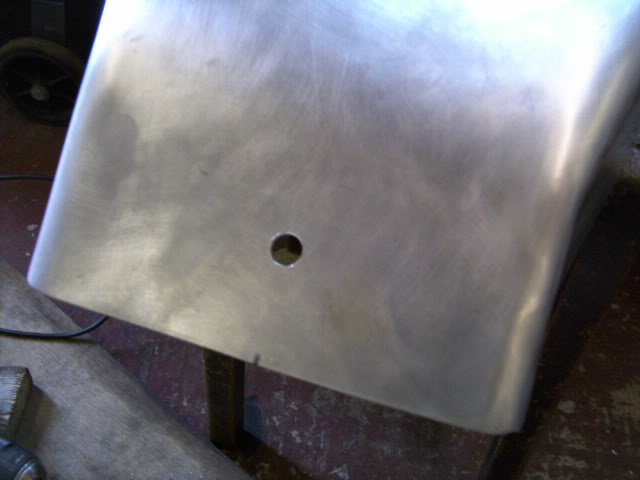

Drilled a hole in the rear of the tank shell

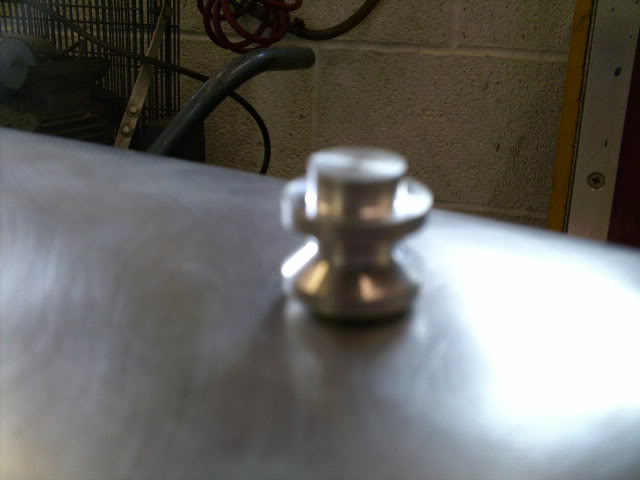

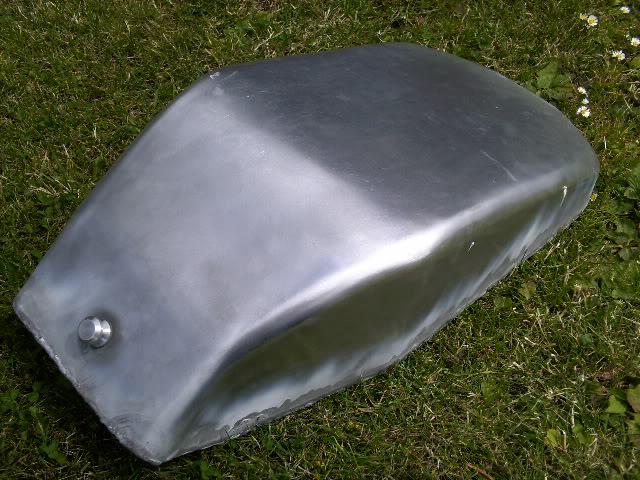

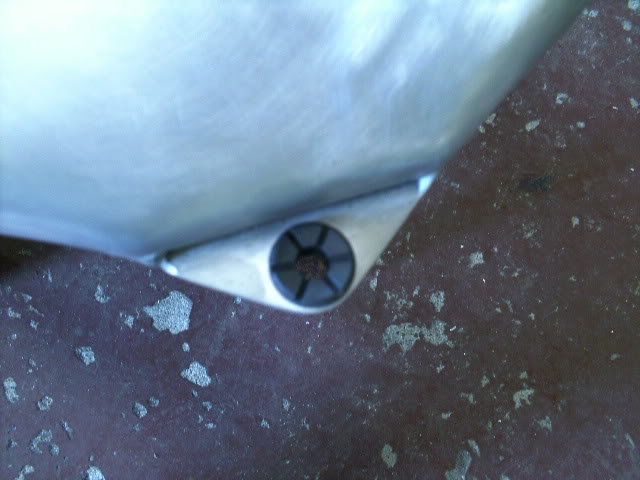

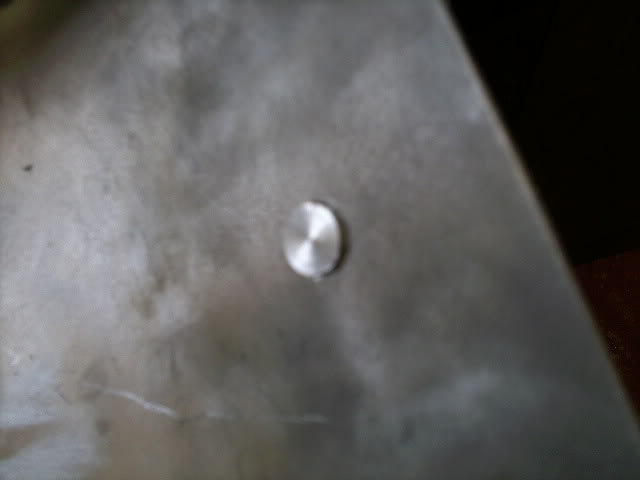

And turned up this alloy bobbin (to take a rubber mounting strap)

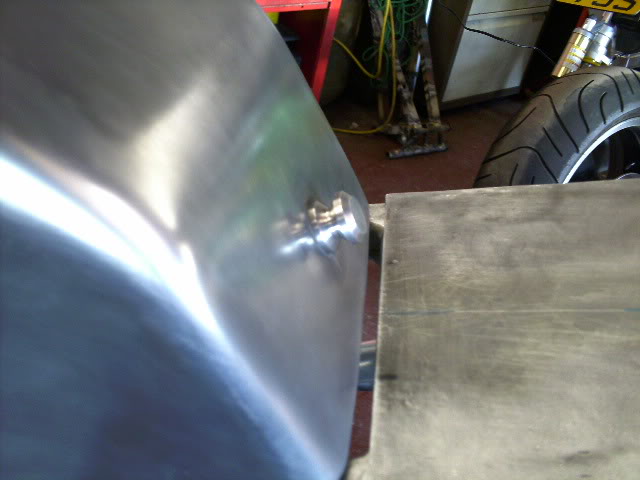

Which was pressed in and welded on from the inside


For a neat appearance

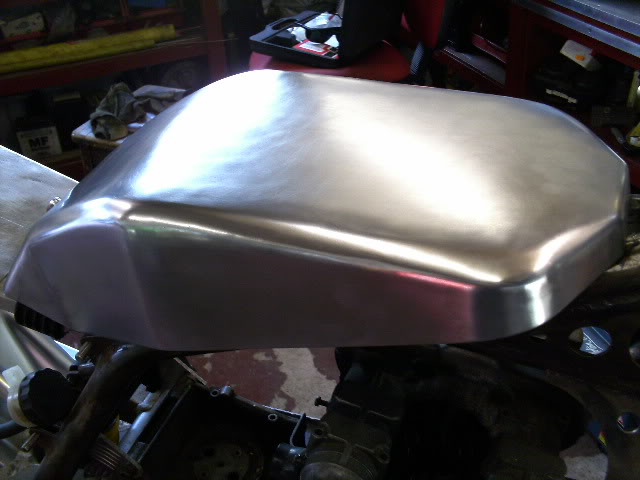

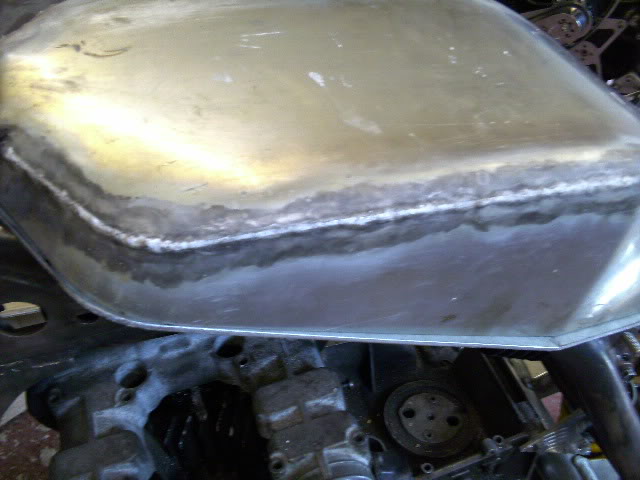

Also spent hours with the wet and dry polishing out the weld seams.



Next job on the list is to weld in a base and make a front mount

(still plenty of opportunity for things to go horribly wrong so fingers crossed)
Last edited by zed1015 on Tue Feb 20, 2018 3:50 pm, edited 2 times in total.
Top
User avatar
Andy M
Custard Cream
Custard Cream
Posts: 730
Joined: 11th Jun 2011
Location: Herefordshire, Cider country.

#5 PostAuthor: Andy M » Fri Jun 24, 2011 3:17 pm

Good to see you've lost the wooden main stand in preference to a conventional side stand. Looking good... :up
Top
User avatar
paul doran
Area Rep.
Area Rep.
Posts: 9164
Joined: 24th Sep 2004
Location: near Dublin Ireland

#6 PostAuthor: paul doran » Fri Jun 24, 2011 4:55 pm

looking good Rob

will the Club Project be as good :lol: :lol: :lol:
way too many Zeds
Top
k7
new poster
Posts: 9
Joined: 21st Aug 2009
Location: YORKSHIRE

#7 PostAuthor: k7 » Sat Jun 25, 2011 9:44 pm

she's looking good Rob - another great bit of engineering and oh so much polishing and swearing lol ..........
Last edited by k7 on Sun Jun 26, 2011 4:14 pm, edited 1 time in total.
Ride free and party hard
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 3894
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#8 PostAuthor: zed1015 » Sat Jun 25, 2011 10:53 pm

Woohoo :D .

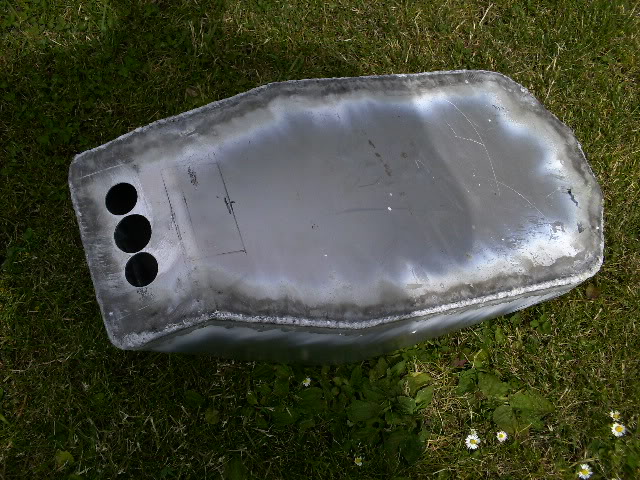

Managed to weld in the base without it all melting in a heap.

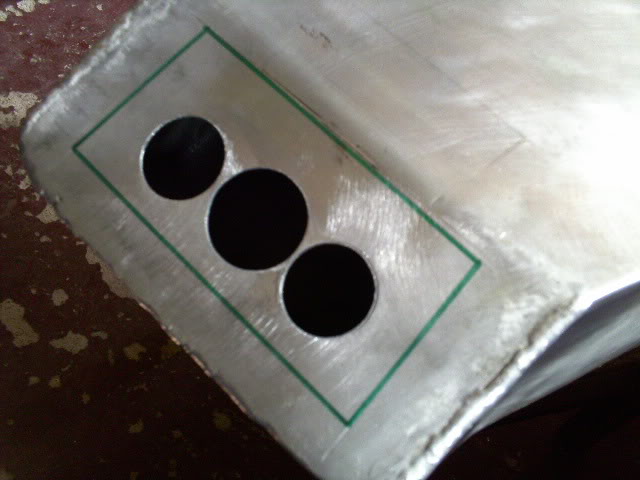

Green outline is where i'll weld on a fuel baffle box which will hang between the subframe rails and provide a mount for the tap and a bit of extra capacity
Last edited by zed1015 on Tue Feb 20, 2018 4:01 pm, edited 2 times in total.
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 3894
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#9 PostAuthor: zed1015 » Wed Jul 06, 2011 8:49 pm

REAR LIGHT MOUNT.

Little bit more progress this week.

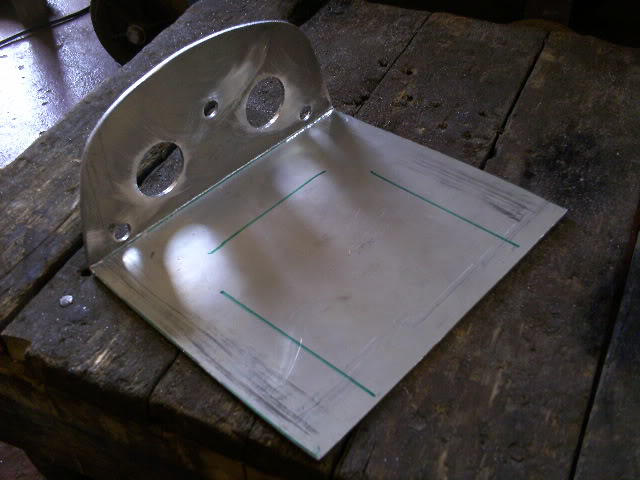

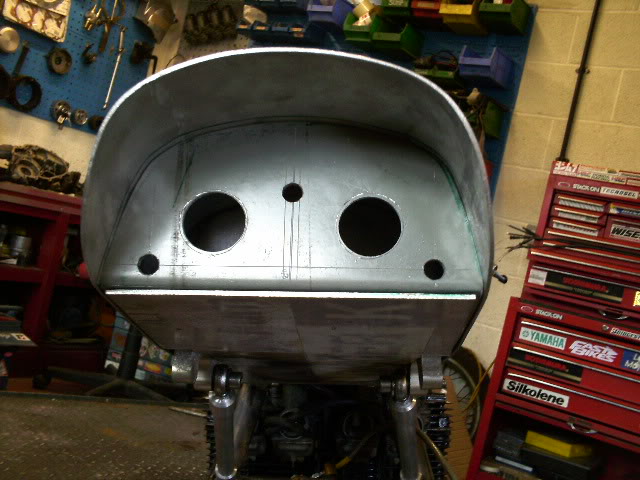

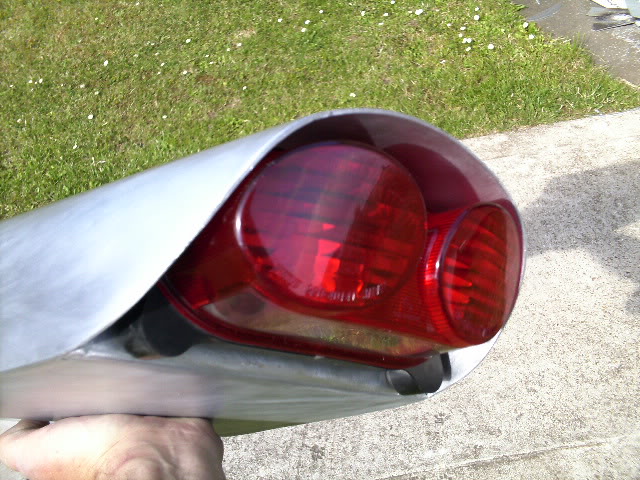

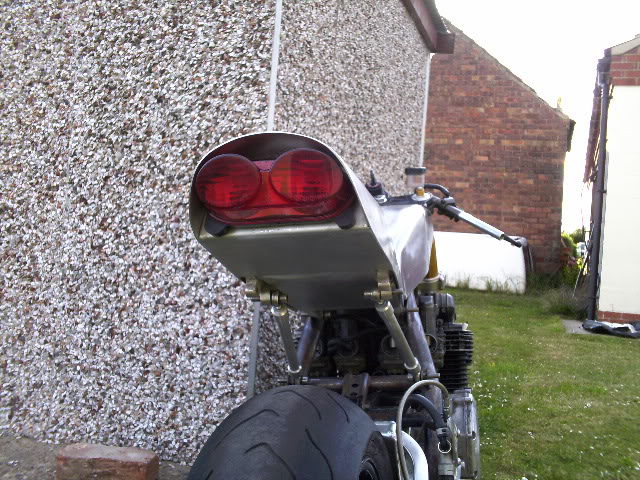

Made up this alloy plate which will hold the rear light and form somewhere to hide the battery .

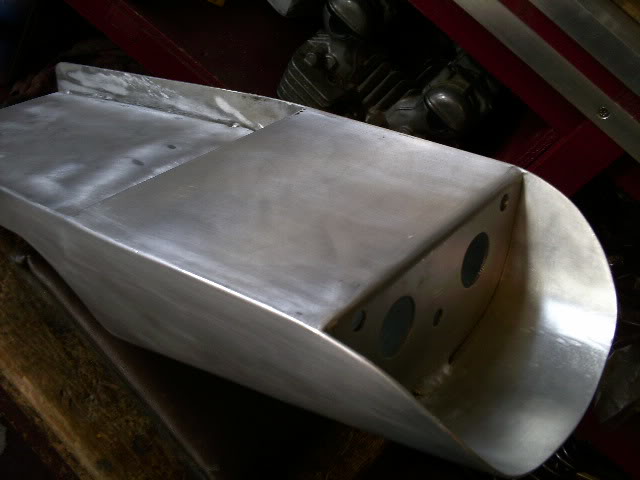

After welding it into the seat unit the welds were blended in so it looks like one piece.


And also forms the other half of the undertray

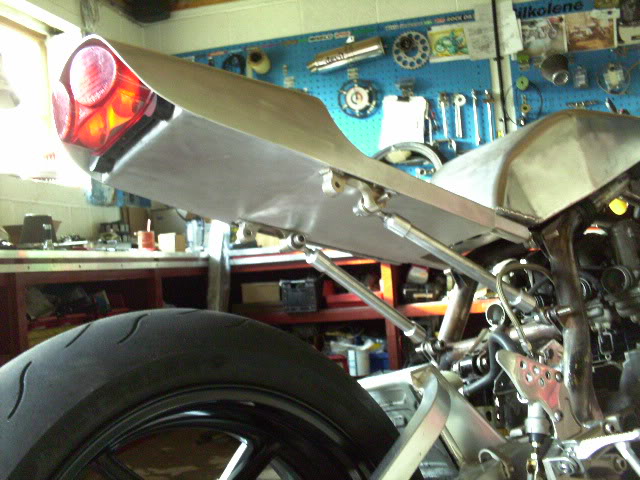

Light unit is ZX7R

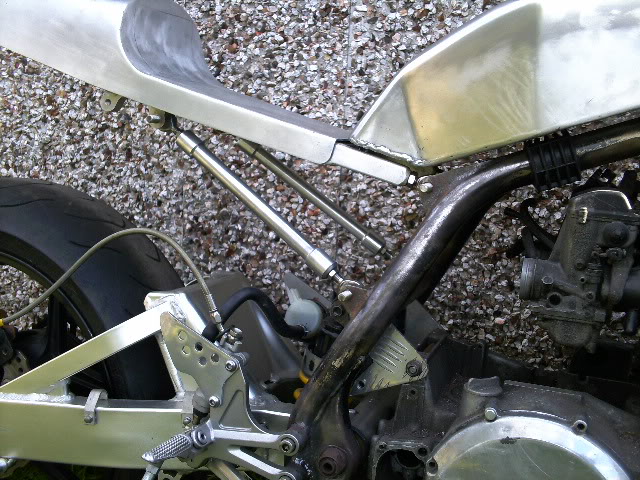

Also had a swift session on the lathe and finished off the adjustable subframe struts.

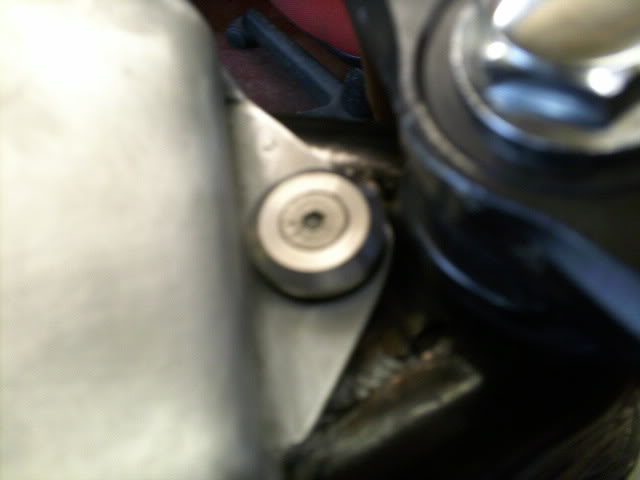

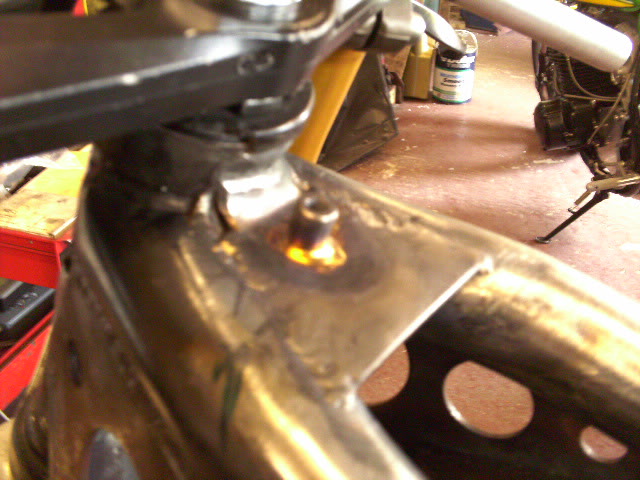

As well as making up a threaded mounting stub




To take the fuel tanks front mount

Last edited by zed1015 on Tue Feb 20, 2018 4:06 pm, edited 1 time in total.
Top
Jappen
100Club
100Club
Posts: 338
Joined: 23rd Jun 2008
Location: Norway

#10 PostAuthor: Jappen » Wed Jul 06, 2011 9:27 pm

Well done.... :resp
80-Z1000H
79-Z1000MK2
Top
User avatar
bart
Regular Poster
Posts: 49
Joined: 24th May 2007
Location: carlisle

#11 PostAuthor: bart » Thu Jul 07, 2011 8:29 am

some fantastic engineering going on,going to be stunning when it's finished. :more
Top
Crofty
Custard Cream
Custard Cream
Posts: 887
Joined: 18th Nov 2009
Location: York

#12 PostAuthor: Crofty » Thu Jul 07, 2011 8:32 am

Really really inspiring stuff, keep it up. :D :D
Top
sanderz
Custard Cream
Custard Cream
Posts: 848
Joined: 2nd Mar 2010
Location: Manchester

#13 PostAuthor: sanderz » Thu Jul 07, 2011 9:55 am

bart wrote:some fantastic engineering going on,going to be stunning when it's finished. :more


Second that :!:

Any clues to wot filler cap you'll be fitting?
Maybe put twin fillers on there - endurance style (just a tought)
Wots up DOHC
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 3894
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#14 PostAuthor: zed1015 » Thu Jul 07, 2011 10:08 am

sanderz wrote:
Any clues to wot filler cap you'll be fitting?
Maybe put twin fillers on there - endurance style (just a thought)


Will be the race flush filler type maybe single maybe twin.
Depends on what i can lay my hands on.
Was thinking of making my own again but - been there/done that - so i've put a wanted ad on a few forums and am waiting to see if owt turns up.
