Orient Express drag bike resurrection.Updated with fixed links.

#1 PostAuthor: zed1015 » Mon Dec 17, 2012 10:09 pm

As posted in discussion board i've been asked to rebuild the engine / engines of the famous Orient Express funny bike.
Originally built by Jack o'malley (founder of Orient express performance) this bike was imported from the states by the late Steve Tong and is thought to possibly be the first of its type to be brought over.

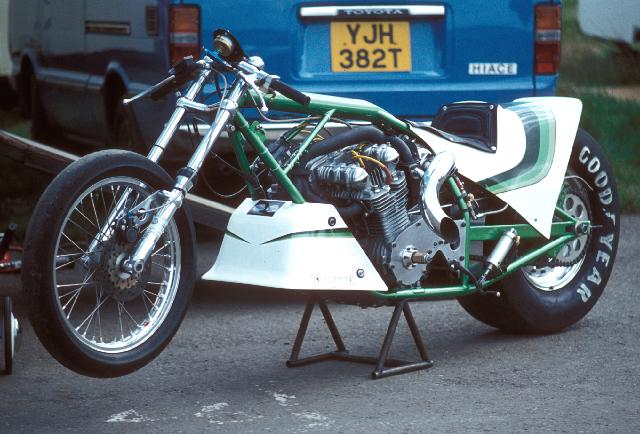

Here's a pic of the machine as it should be.

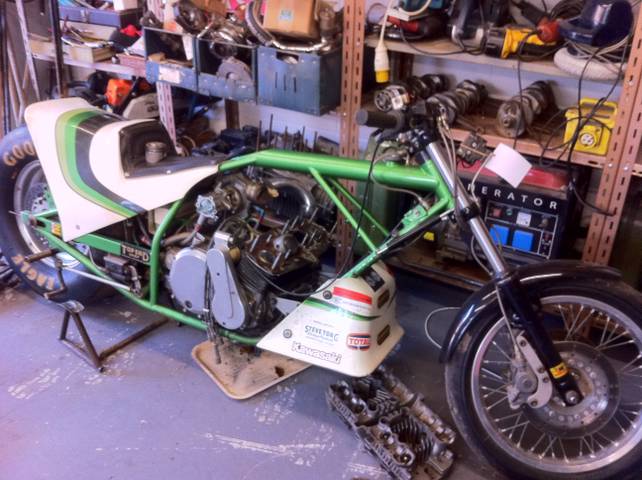

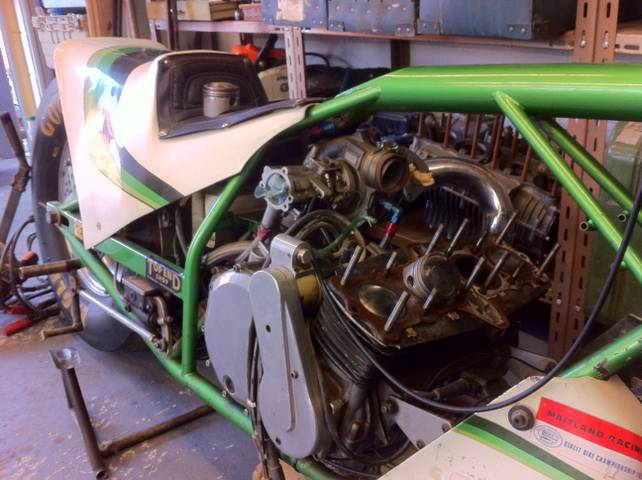

And here as it has been for nigh on 30 years since it blew over the line at long marsden

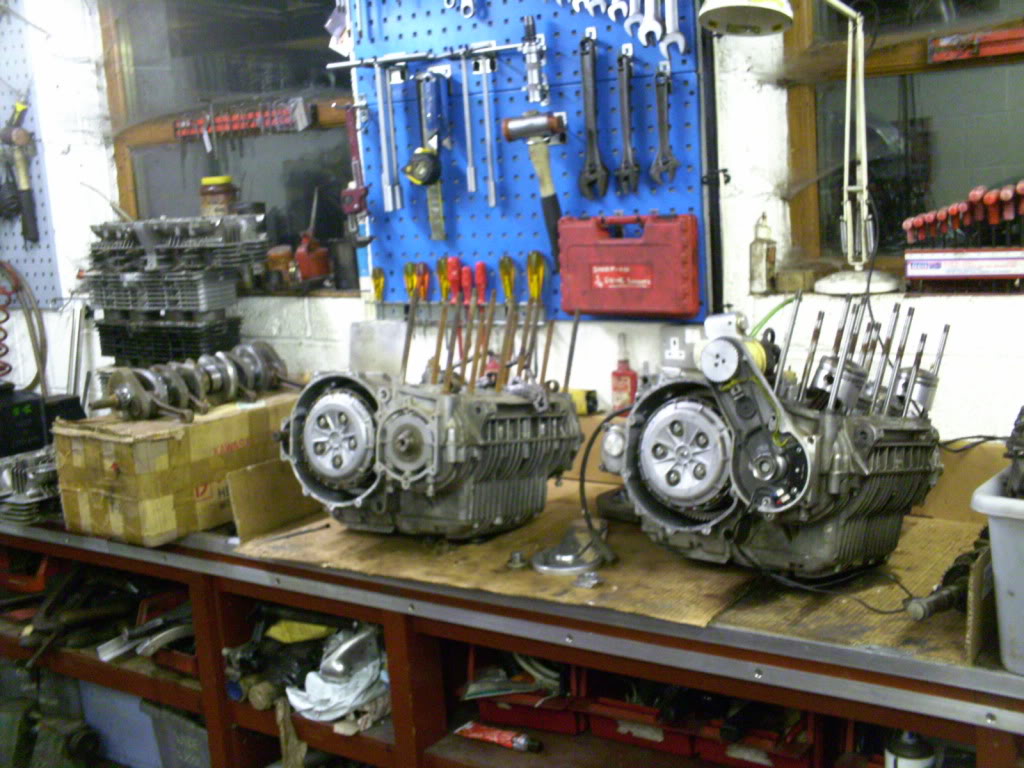

I have now got the engine and spares on the bench for inspection
PICT0171 (1).jpg

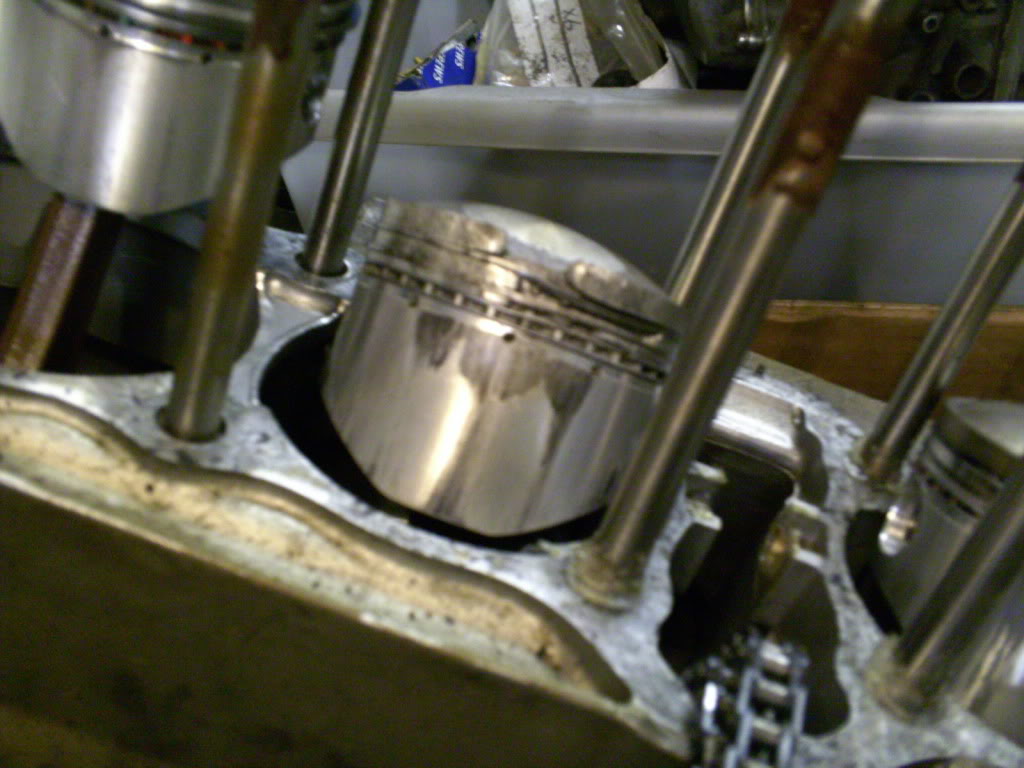

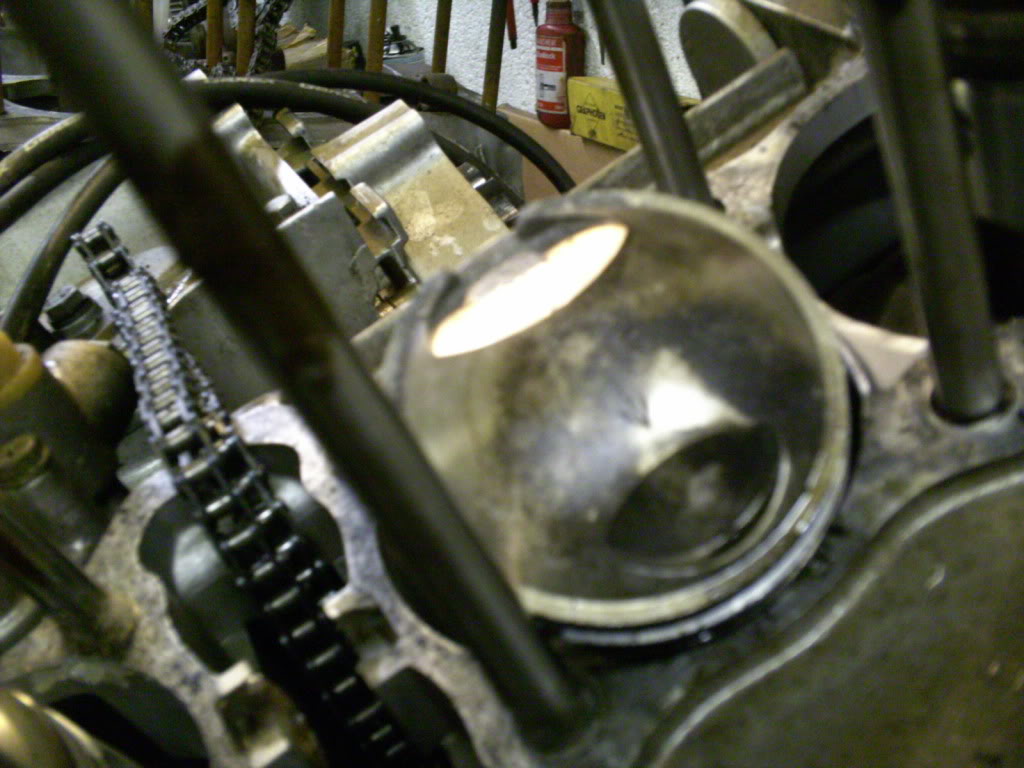

Pulling the barrels reveals the the cause of the engine failure .
Both center pistons suffering from detonation and the excesssive heat that running 30psi of boost will create.

PICT0173 (1).jpg

PICT0174 (1).jpg

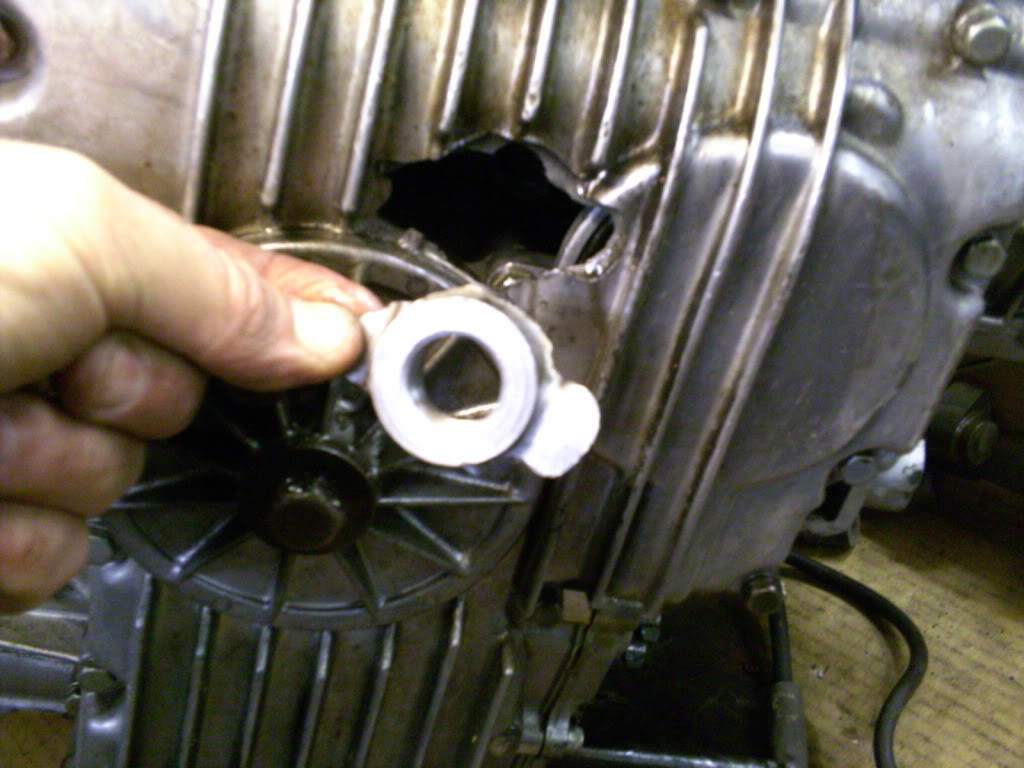

A little mystery for now is how this lump of sump got ejected from its moorings ?
PICT0176 (1).jpg


Initially i thought the the camchain had snapped,wrapped around the crank and had destroyed the main bearing cap with shrapnel exiting through the sump, but a quick inspection revealed the chain is untouched and peering through the hole shows the cap intact and everything turns freely
It should all become clearer once i get the sump off


A couple of gems were revealed whilst sorting the good spares from the bad

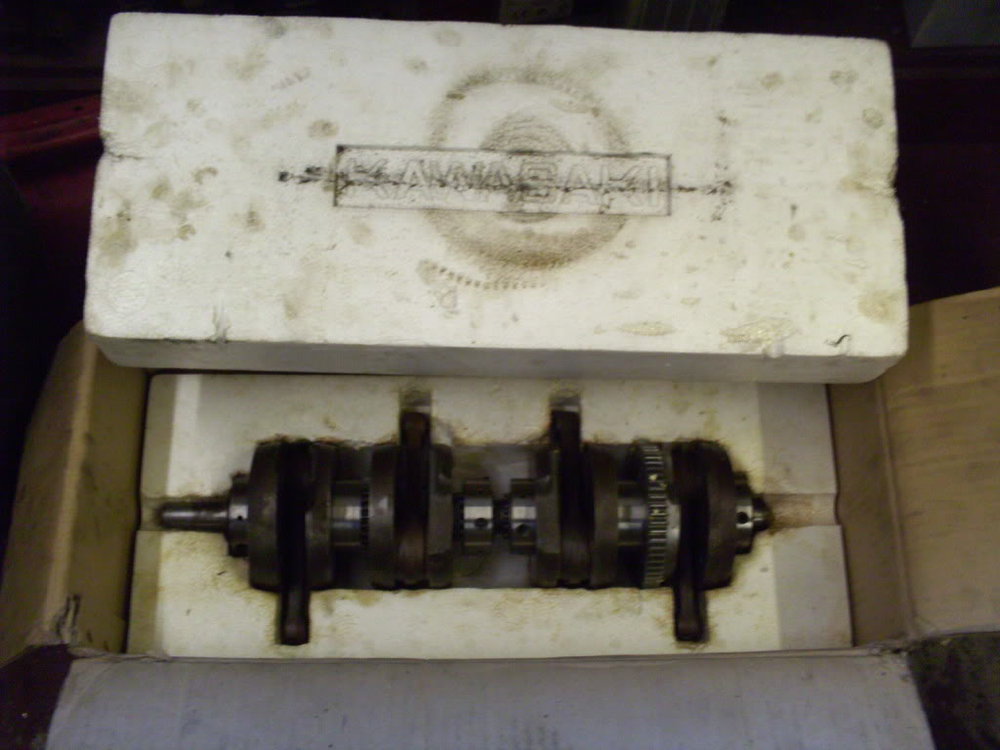

"New" welded crank from Chris Applebee still in the kawasaki box soon to be woken from it's slumber.

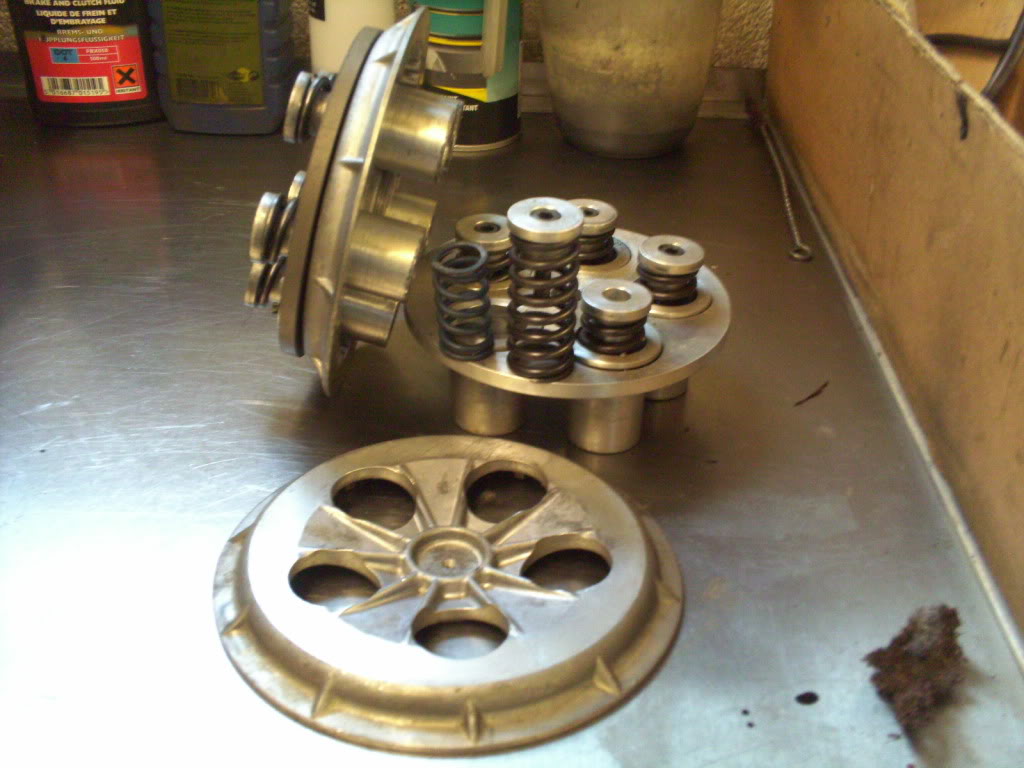

And belt and braces approach to clutch slip .
Who need steroids :lol:

Last edited by zed1015 on Sat Feb 24, 2018 10:50 pm, edited 5 times in total.

User avatar
Ginger Bear
Hardcore
Hardcore
Posts: 5512
Joined: 16th Dec 2008
Location: In the Dark.
Contact:

#2 PostAuthor: Ginger Bear » Tue Dec 18, 2012 5:37 am

Rob, this looks like another one of your masterpieces I'm gonna be 'glued too'.

# 104

Phil Churchett Award Winner 2011 & 2016 :D
Buzzworkz Best Modified Zed 2016

Is Vic There
Hardcore
Hardcore
Posts: 1285
Joined: 8th Nov 2011
Location: Brisbane, Australia.

#3 PostAuthor: Is Vic There » Tue Dec 18, 2012 6:14 am

Another thread of your's I'll be watching :D
You do know your stuff.
Norton 850 Command, Harris Mag 2, Harris Mag 5, Triumph Steve McQueen, Suzuki RGV250 Barry Sheene, RG250 Walter Wolf, RD125LC, Lambretta Li150, Vespa 50N.

User avatar
zed1015
Hardcore
Hardcore
Posts: 3793
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#4 PostAuthor: zed1015 » Tue Dec 18, 2012 1:15 pm

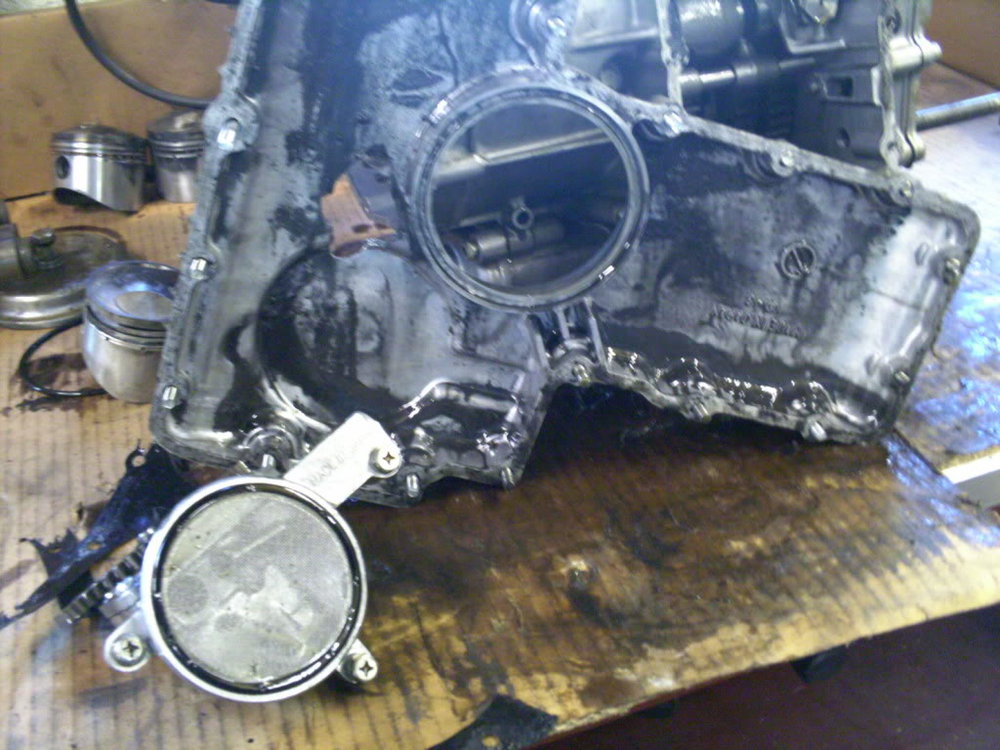

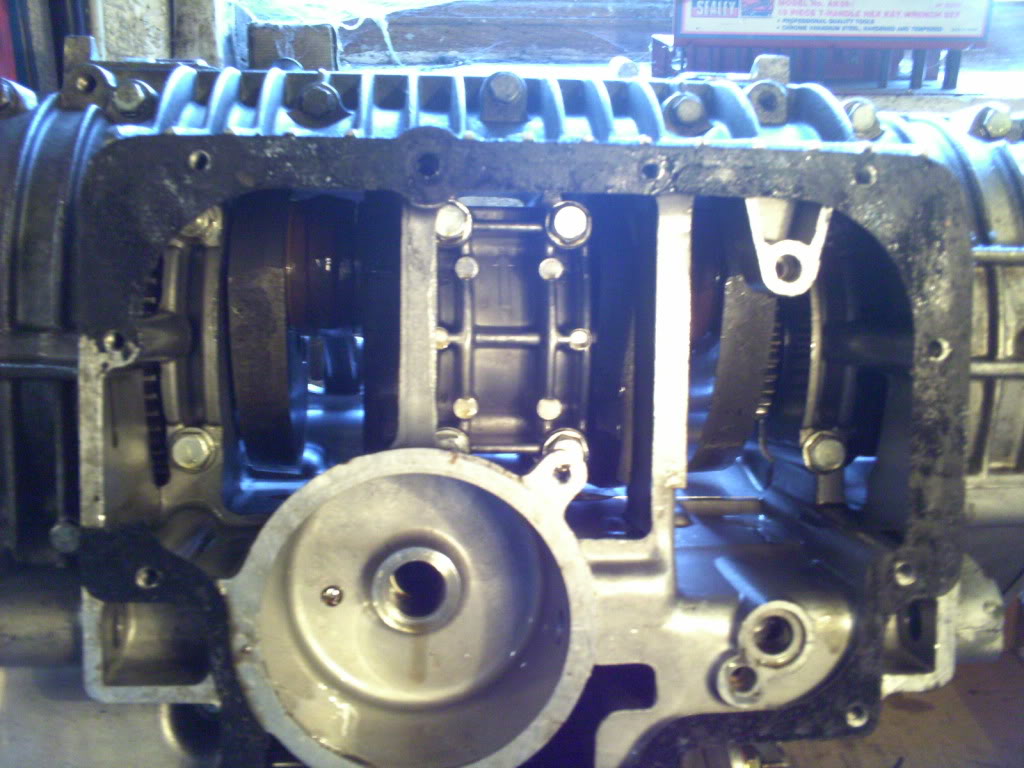

Well! i pulled the sump this morning and found nothing wrong downstairs that could cause the sump damage.
Nothing unexpected but more interestingly nothing i expected either.
Oil pump is std, no rear pick-up, not even a gate and the black sludge is only clean oil and assembly lube.
Everthing is in excellent condition so far and if you didn't know it could have come straight from the track yesterday.



Crank is just a welded std one, nowt special or lightened and no cap support or hd crankcase studs.
PICT0179 (1).jpg

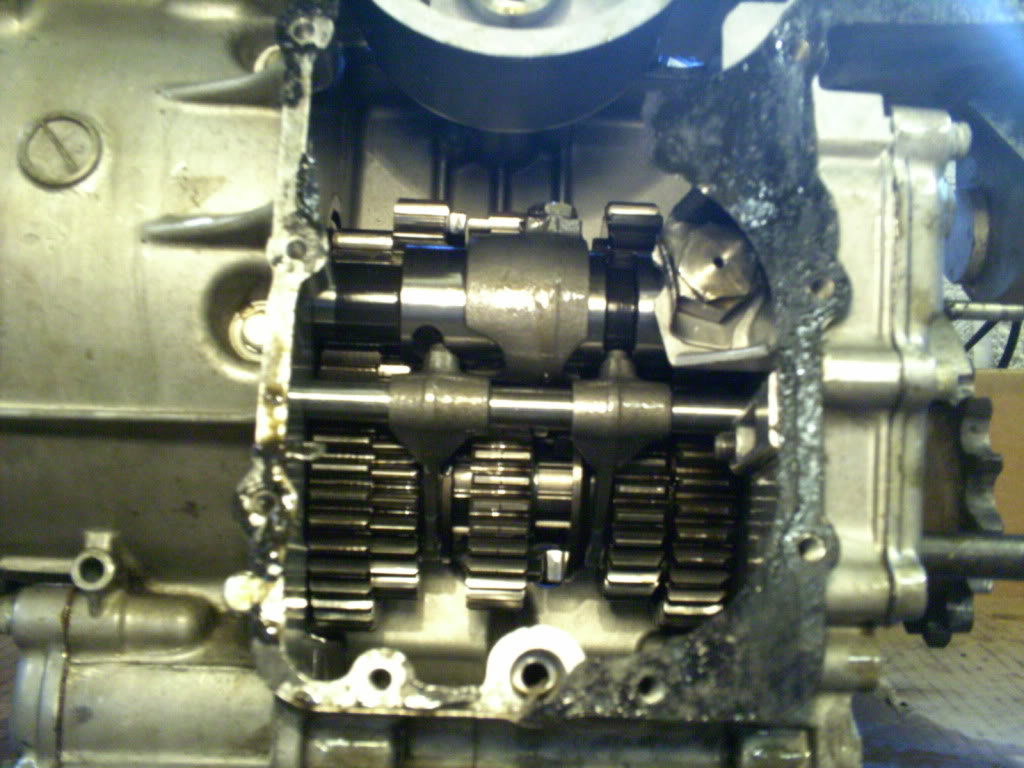

Same for the gearbox .
Apart from evidence of freehand undercutting it's std z900.

PICT0180 (1).jpg
Last edited by zed1015 on Tue Feb 20, 2018 6:05 pm, edited 2 times in total.

Crofty
Custard Cream
Custard Cream
Posts: 887
Joined: 18th Nov 2009
Location: York

#5 PostAuthor: Crofty » Tue Dec 18, 2012 1:21 pm

I thought the same about the sump plug when you said the camchain was intact Rob. The bike is very low, maybe it got rolled over something getting loaded into a van or over a kerb and the sump plug got hit?

User avatar
ADRIAN H
Hardcore
Hardcore
Posts: 4526
Joined: 21st Mar 2009
Location: Charminster. Bournemouth

#6 PostAuthor: ADRIAN H » Tue Dec 18, 2012 9:06 pm

Not much wrong then, a bit of a result in a way.
adrianhorsfield@live.co.uk
Sunny Bournemouth. Dorset. UK.

User avatar
Big Fluff
Hardcore
Hardcore
Posts: 2541
Joined: 1st Mar 2007
Location: Marbury, Shropshire

#7 PostAuthor: Big Fluff » Wed Dec 19, 2012 1:30 pm

I had some pistons just like that 2 years ago :lol: :lol:
TBH they look like standard pistons to me (forgive me, could be wrong), but they certainly don't look forged either.
I would imagine that 30 years ago, the bike wasn't running any automated retard function, hence the detonation. Is he looking to upgrade to plenum pressure switch activated Dyna 2000 Rob ? Would help it an awful lot... I know :!:

Great project Rob, it'll be great to see it back ont the strip too.

Will
Kawasaki GPz750T, Kawasaki ZRX1100R, Kawasaki GPZ1000RX, H**** VF1000RG Rothmans, H**** VF500F2F, H**** CB1100RD, Suzuki GSX1100EFE, H**** XL125K2

neilbarrett
ZedHead
ZedHead
Posts: 1179
Joined: 25th Feb 2008

#8 PostAuthor: neilbarrett » Wed Dec 19, 2012 6:17 pm

the ignition has a boost retard facility,via minifold pressure,weather it was plumbed in is another matter

User avatar
zed1015
Hardcore
Hardcore
Posts: 3793
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#9 PostAuthor: zed1015 » Wed Dec 19, 2012 10:48 pm

Pistons are forged wiseco's.
Look like 10.25 to 1's with thick head gasket to compensate.
Distributer ign has retard facility and was connected.
Rebuild needs to stick with original appearance for accurate historic record so can improve on internals but pretty fixed with the rest.
Boost won't be 30 psi so that should help reliability :lol:

User avatar
zed1015
Hardcore
Hardcore
Posts: 3793
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#10 PostAuthor: zed1015 » Fri Jan 11, 2013 6:50 pm

Bit of an update.

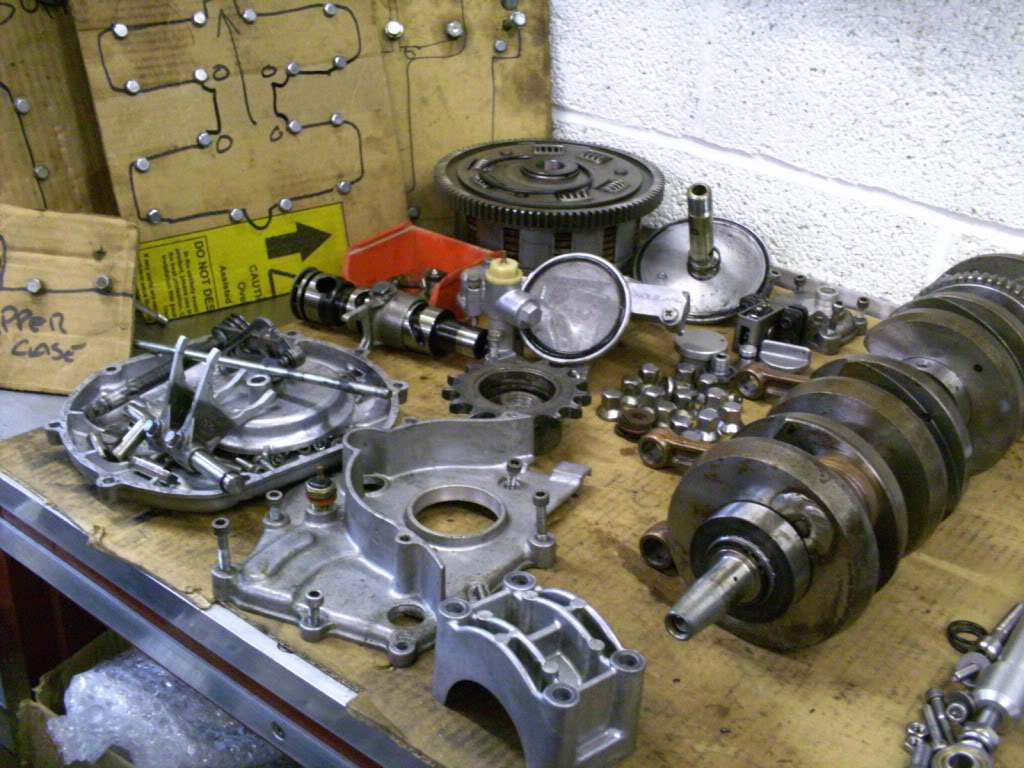

After very close inspection most of the engine parts are either worn out , unsuitable or just plain buggered and all the usable parts that don't need any major work are in this pic and are mainly from the spare engine.

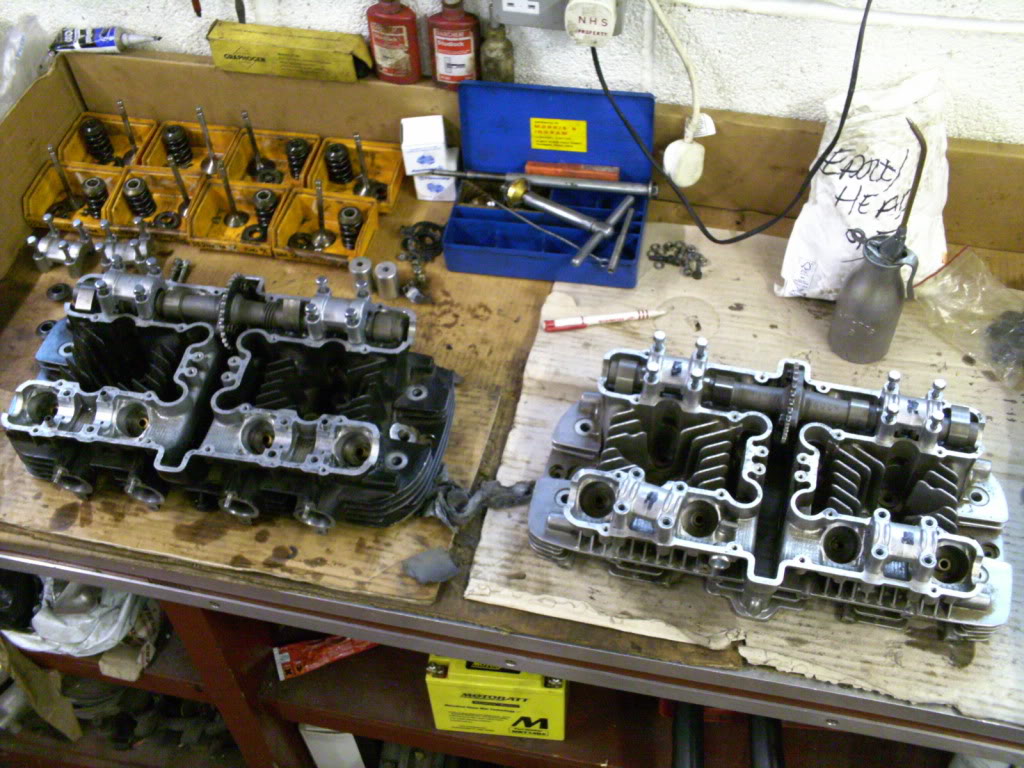

This thing is fighting me all the way and both heads need everything re-newing, the seats are pocketed and all the correct cam caps need sorting as they were all mixed up in a box with some others

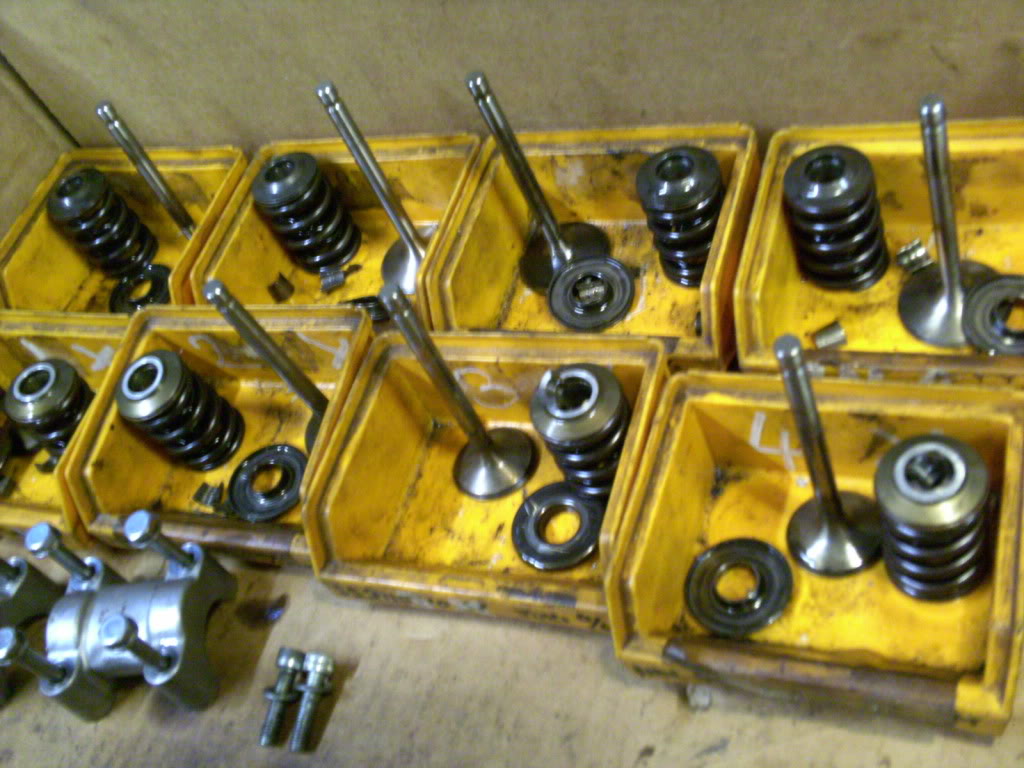

Burnt valves,sagged springs,odd retainers and old style square keepers.
All this needs replacing.



Have chose to use the spare crankcases as the others have been bored out for a big block and as a result will be more prone to flexing and will be weaker around the barrel studs.

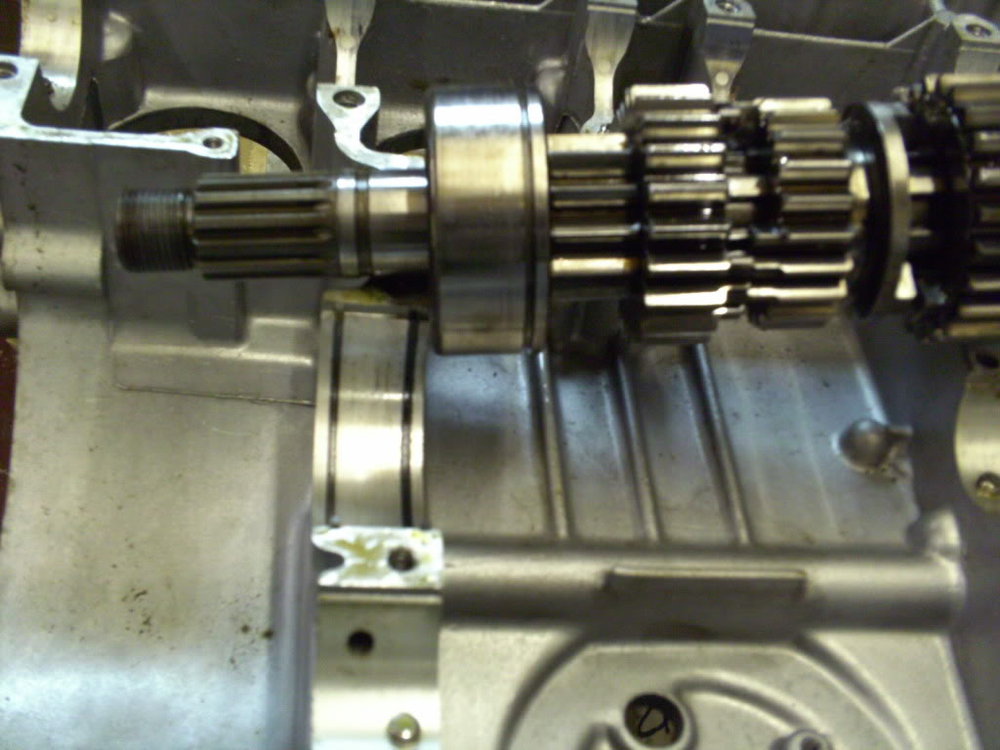

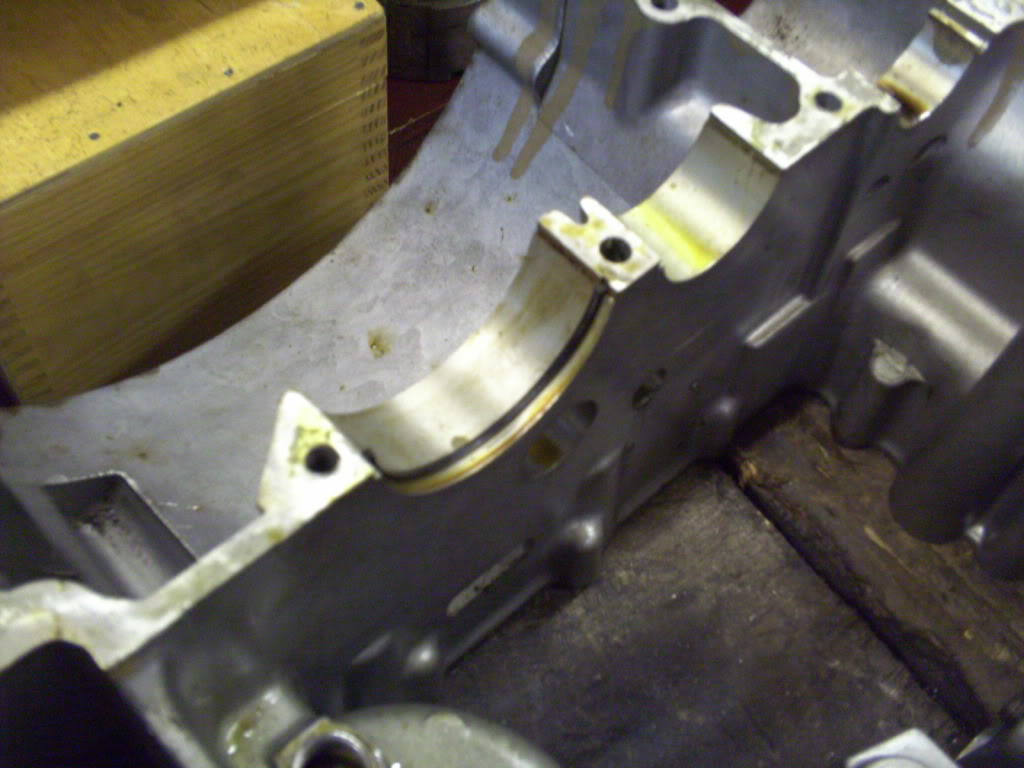

On the upside these cases have had the groove for the bearing retainers machined on the inside of the case in BOTH case halves for a more robust construction so it's just a matter of flipping the bearing 180 deg to fit and they will also help reduce the halves moving independently



Groove in lower half which the std cases don't have.


All this means is that there are now several large boxes of tasty parts currently winging their way from Pitstop Performance in the US to help fill in the (large) gaps.
Not so much of a rebuild now ,more like start from scratch :roll:
Last edited by zed1015 on Wed Feb 21, 2018 8:36 am, edited 5 times in total.

User avatar
Al
Hardcore
Hardcore
Posts: 2800
Joined: 21st Oct 2007
Location: Farnbronx, Sin City, N.E. Hants

#11 PostAuthor: Al » Fri Jan 11, 2013 9:16 pm

Thats a pitiful pile of useable stuff remaining.

Is that the original engine the bike was built with that has blown or just a runner for testing etc.

Keep the info coming together with the pictures its' pure gold.
It is also on dragbike.com? Not been there for a good while.

AL

P.S. the output shaft bearing i fitted recently came with a full circle snap ring.
Any use??
1981 J1

User avatar
zed1015
Hardcore
Hardcore
Posts: 3793
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#12 PostAuthor: zed1015 » Fri Jan 11, 2013 10:02 pm

zorded wrote:Thats a pitiful pile of useable stuff remaining.

Is that the original engine the bike was built with that has blown or just a runner for testing etc.


The blown engine is the original but it's as original as a woodsmans chopper, Had 3 new heads and four new handles in its life :lol:

The original cases are the bored out ones and so is the bare alloy head as far as i know.
Most other parts , barrels ,cranks, gearbox etc have all been blown and replaced one or more times.
I'm trying to use as many original motor parts as i can but the spare cases are better, of a similar age and due to the amount of parts needed it's only right to use the best of what's here as a basis.

As for Dragbike.com it is very quiet on there and you get very little response regarding the old Zeds so i don't post much but it is good for the archive stuff.

mikeyoz1
Regular Poster
Posts: 66
Joined: 18th Jan 2012
Location: usa n.c.

#13 PostAuthor: mikeyoz1 » Sat Jan 12, 2013 1:34 am

I lived 20 minutes away from Orient Express .
there engine work is running on tracks today .
34 years later . Check out there record runs in the 70 tees and up

User avatar
zed1015
Hardcore
Hardcore
Posts: 3793
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#14 PostAuthor: zed1015 » Tue Feb 12, 2013 8:42 pm

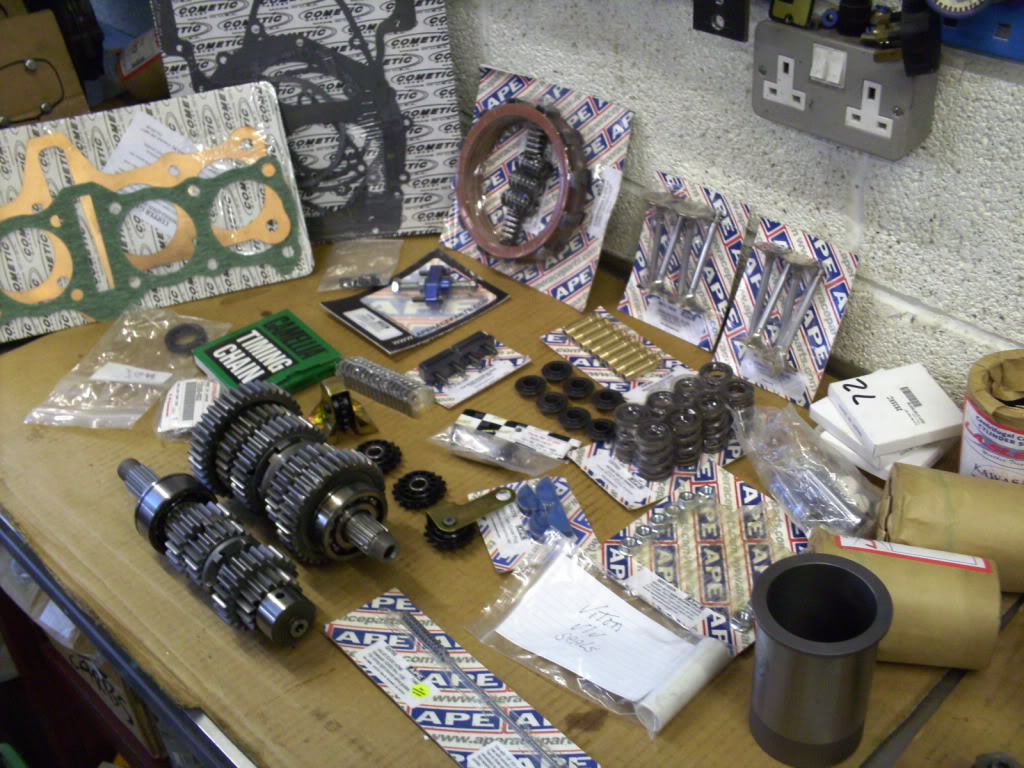

Postie finally delivered a big box of goodies from the US .
Almost every internal part is being replaced .

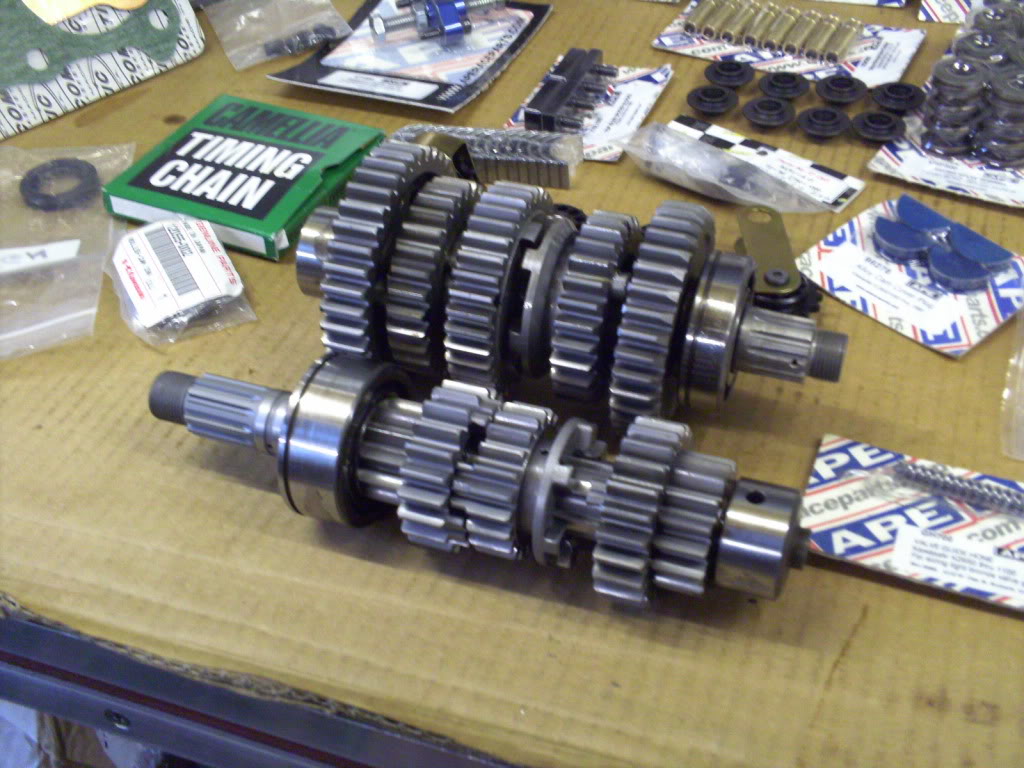

Even bought a complete refurbed undercut gear cluster.
It's a joke that this item shipped from the states cost nearly half the price delivered than the cheapest quote we got for labour to undercut our own.

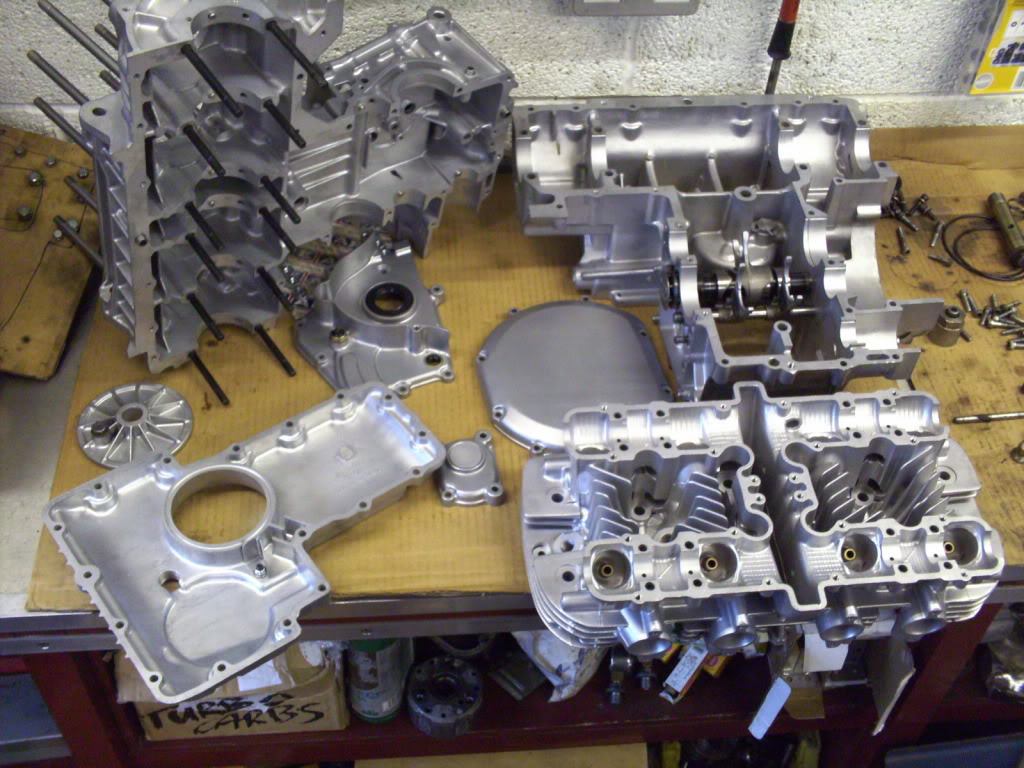

While we were waiting for the parts to arrive the cases etc have had a trip to the aqua blasters so i could make an immediate start on the re-assembly.
A few hours work saw the Oil pan gate, HD case studs, valve guides , oilseals and gear selector fitted



The barrels are now away getting bored for the 72mm MTC turbo pistons so this gives a few days to sort out the head.

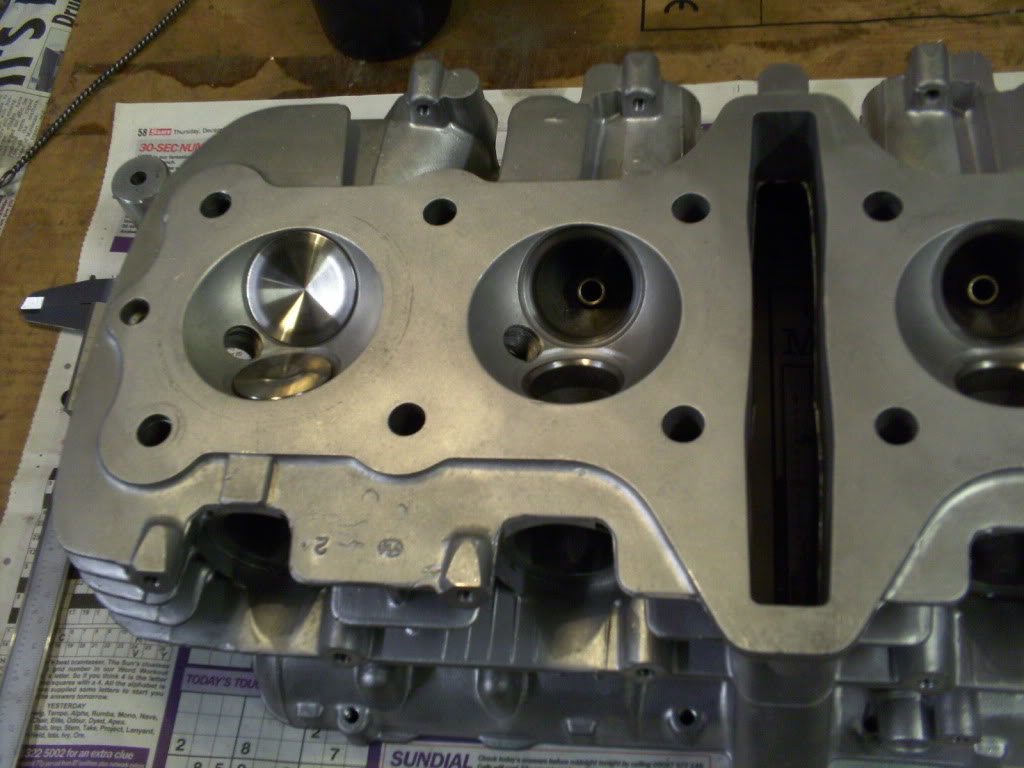

The seats were pocketed and even tipping the std size valves left no clearance with the thinnest shim so fitting oversize valves gets everything back in usable range.
Now just have to open up the throats to match and take full advantage of the larger valves.

Last edited by zed1015 on Tue Feb 20, 2018 6:12 pm, edited 3 times in total.

User avatar
Pigford
I'm on prescription!!
Posts: 10566
Joined: 2nd Jan 2006
Location: Hampshire Coast UK

#15 PostAuthor: Pigford » Tue Feb 12, 2013 8:45 pm

Was that lot from Joe :?:
And on the 7th day... Zeds were created!
