Z1000a1 Side Stand !!

[BigZCas]

Can anyone advise please ?
Z1000a1 German import, Frame No KZT00A014052

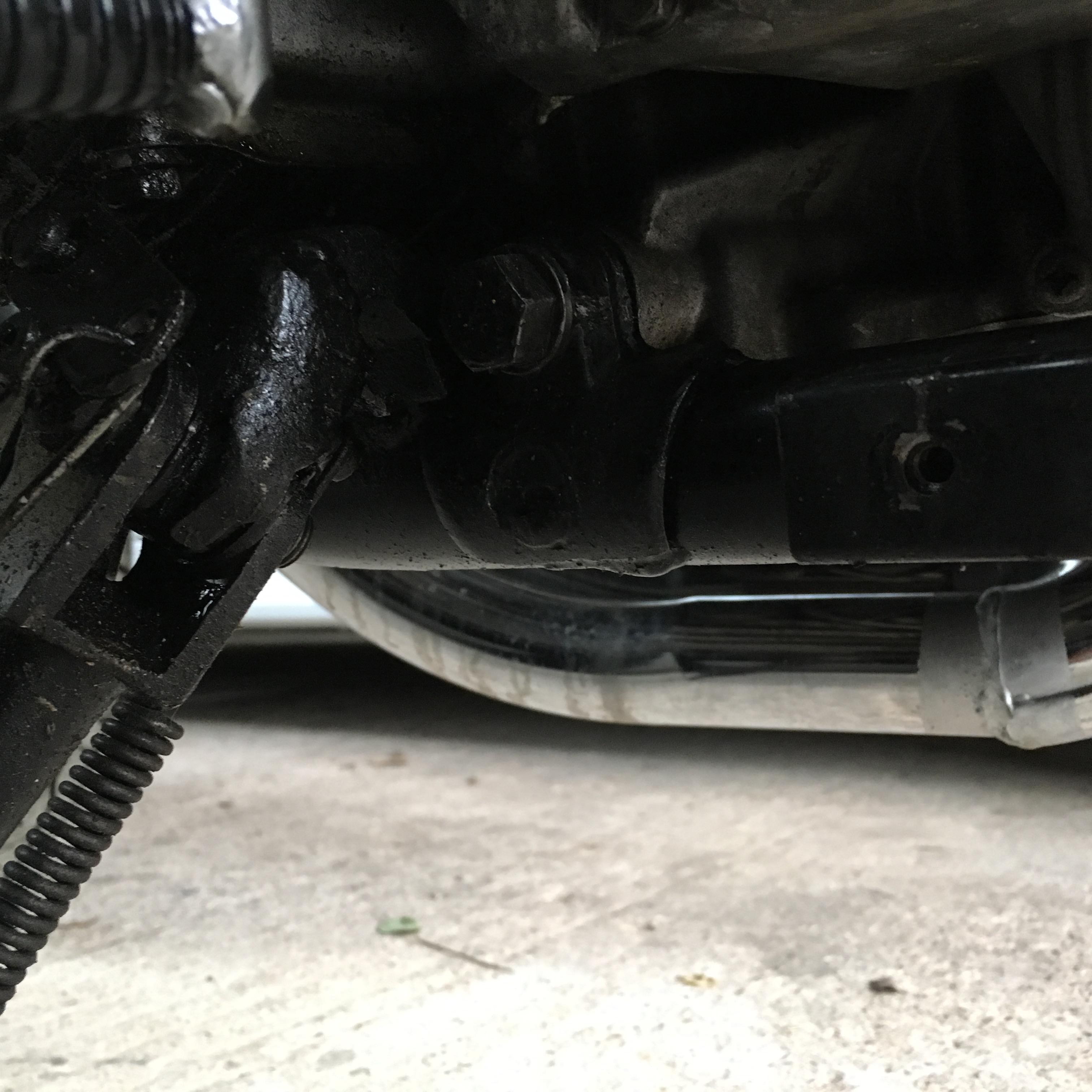

Has anyone come across anything like this, the sidestand is on a welded bracket further forward than usual and there is a welded bracket with 2 tapped holes where the sidestand bracket usually is ??
(try to ignore the funky gear lever !!)

Any help / advise much appreciated,,
Cheers
Steve

[Mark Tiller]

Has the side stand been moved to allow an airshifter
to be used?

[Mark Tiller]

P.S....that's not a standard A1 side stand

[z1bman]

its where the side stand switch would have been mounted. not seen one on a z1000a1 but they are fitted to the german z1r of which your gear lever is from

[BigZCas]

A couple more pictures -
The foot peg includes the side stand stop.
The left hand switch with side stand button.

[chrisu]

that is standard for german market bikes. god knows why.

I can post a picture of one of my Z1000Hs which is the same but has the switch still intact.

[BigZCas]

Thank you for comfirmig
looks like i may have to get some longer legs from somewhere !!
Do you know if the switches are avilable ?

[z1bman]

some of the 550 & 750 ltd's used the same switch

[compo z1r]

Thank you for comfirmig
looks like i may have to get some longer legs from somewhere !!

there are 2 sizes if you look out for a new stand one for the 19" wheel and one for 18"

[BigZCas]

wow
Looks like i have a lot of missing parts
Thank you for the help.

[BigZCas]

Hello Neil,
Sorry to be a pain.
Do you have any idea what the part number is for the rubber part that slips over the foot peg bracket, the Side stand hits it when it flicks back ?

Thanks
Steve

[compo z1r]

Hello Neil,
Sorry to be a pain.
Do you have any idea what the part number is for the rubber part that slips over the foot peg bracket, the Side stand hits it when it flicks back ?

Thanks
Steve

yes just pm'd you all of them cheers neil

[compo z1r]

steve do you require the tank decal too im just having 100 made the min I can get done in german for the side stand can throw one your way when I get them cheers neil
