Lawson Jigsaw Project

#1 PostAuthor: z1000puddin » Sat Jul 08, 2017 6:14 pm

Well then.

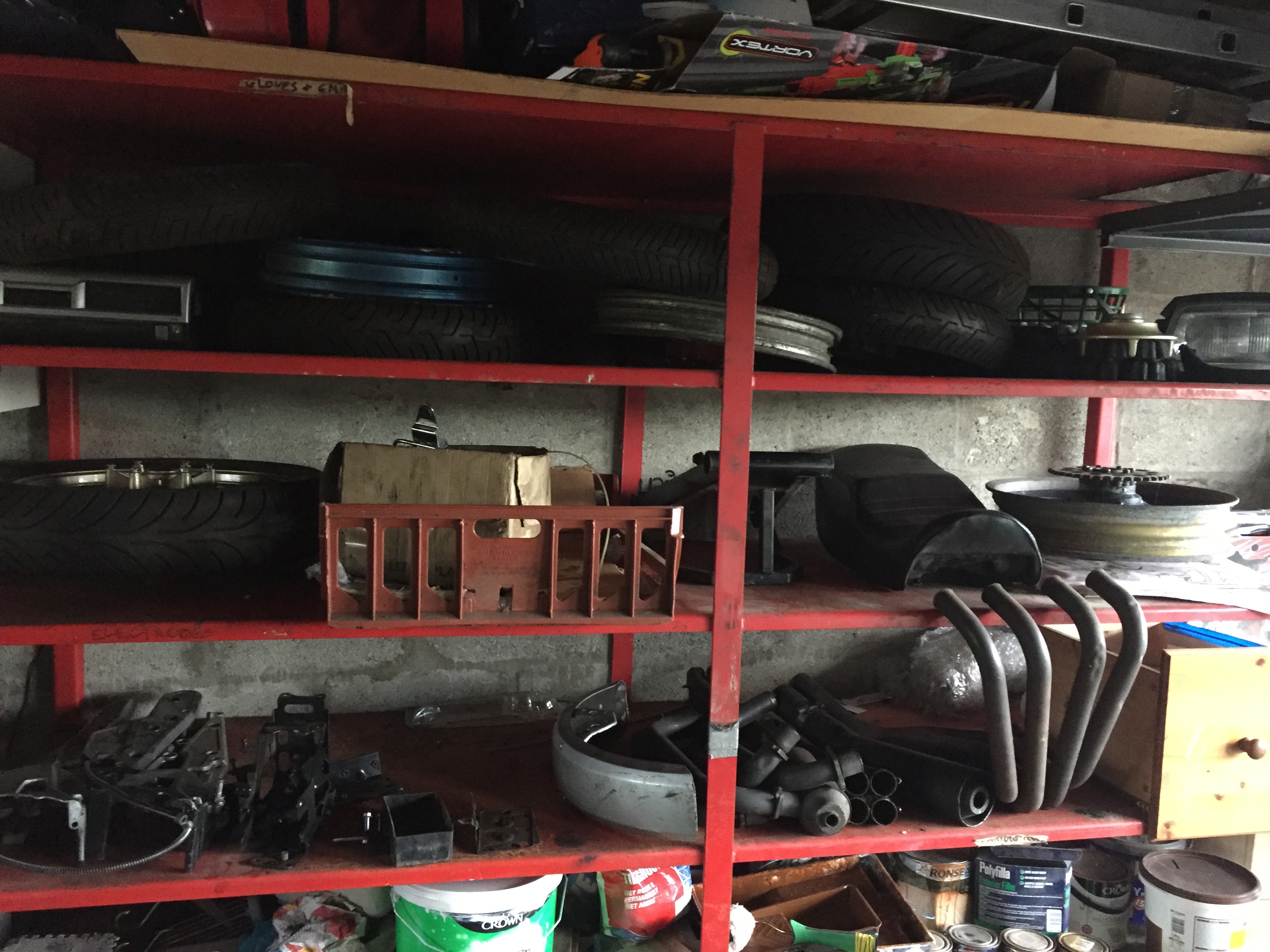

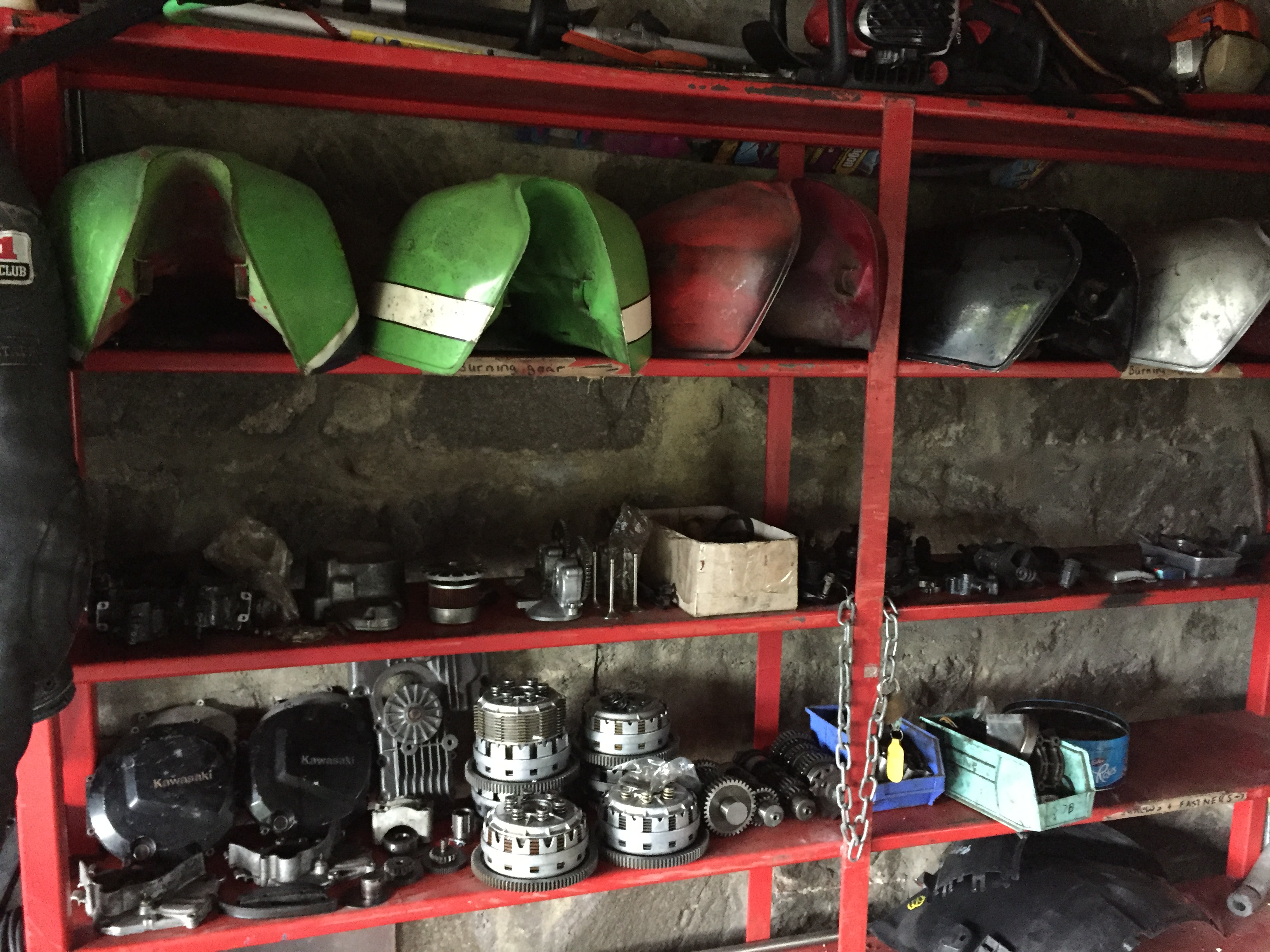

So, I proceeded to empty all the boxes & try to get some sort of order, to see just exactly what I have here...
The plan is to dry build it, then strip & send the various parts to paint , powder & polish.

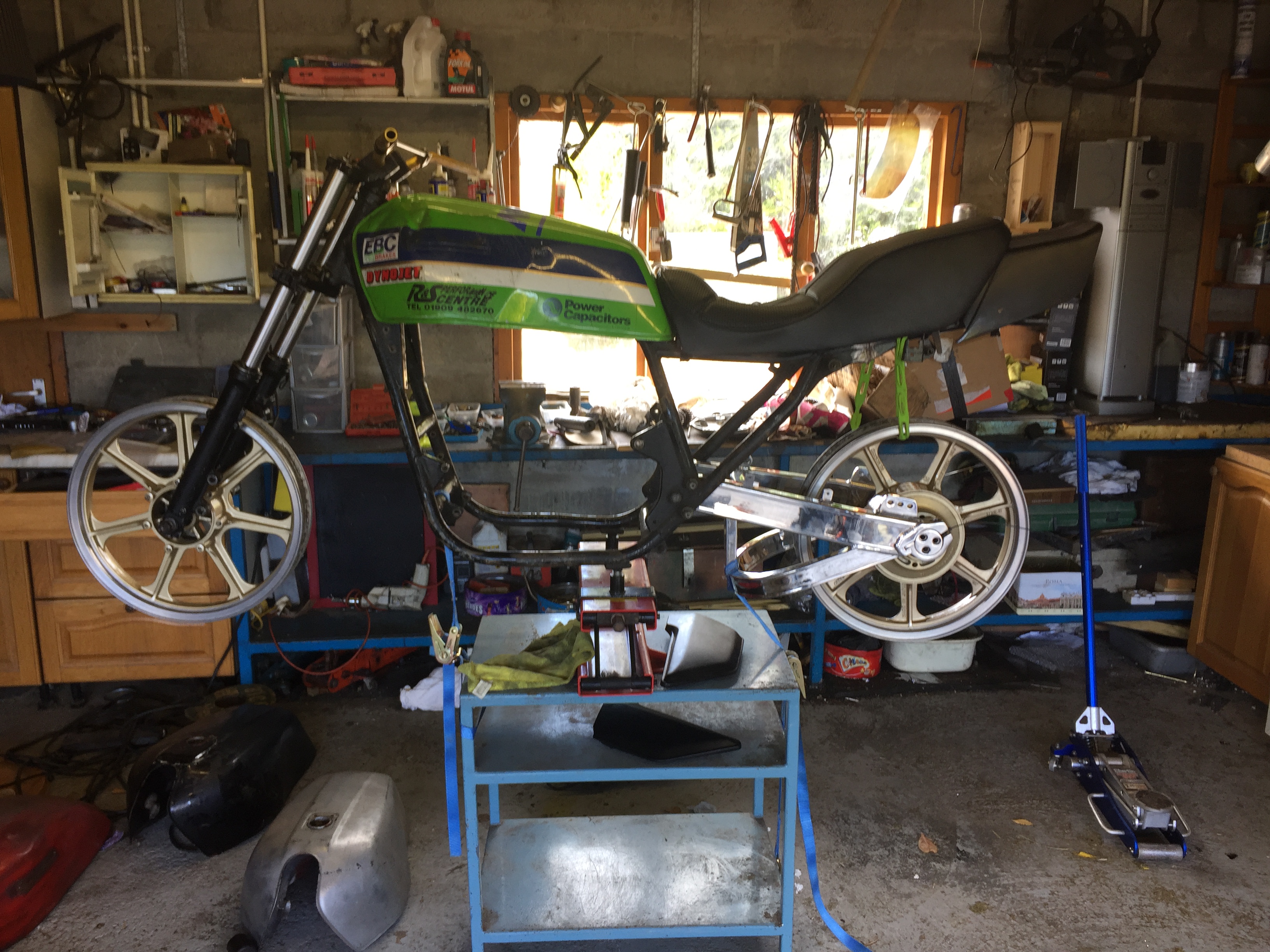

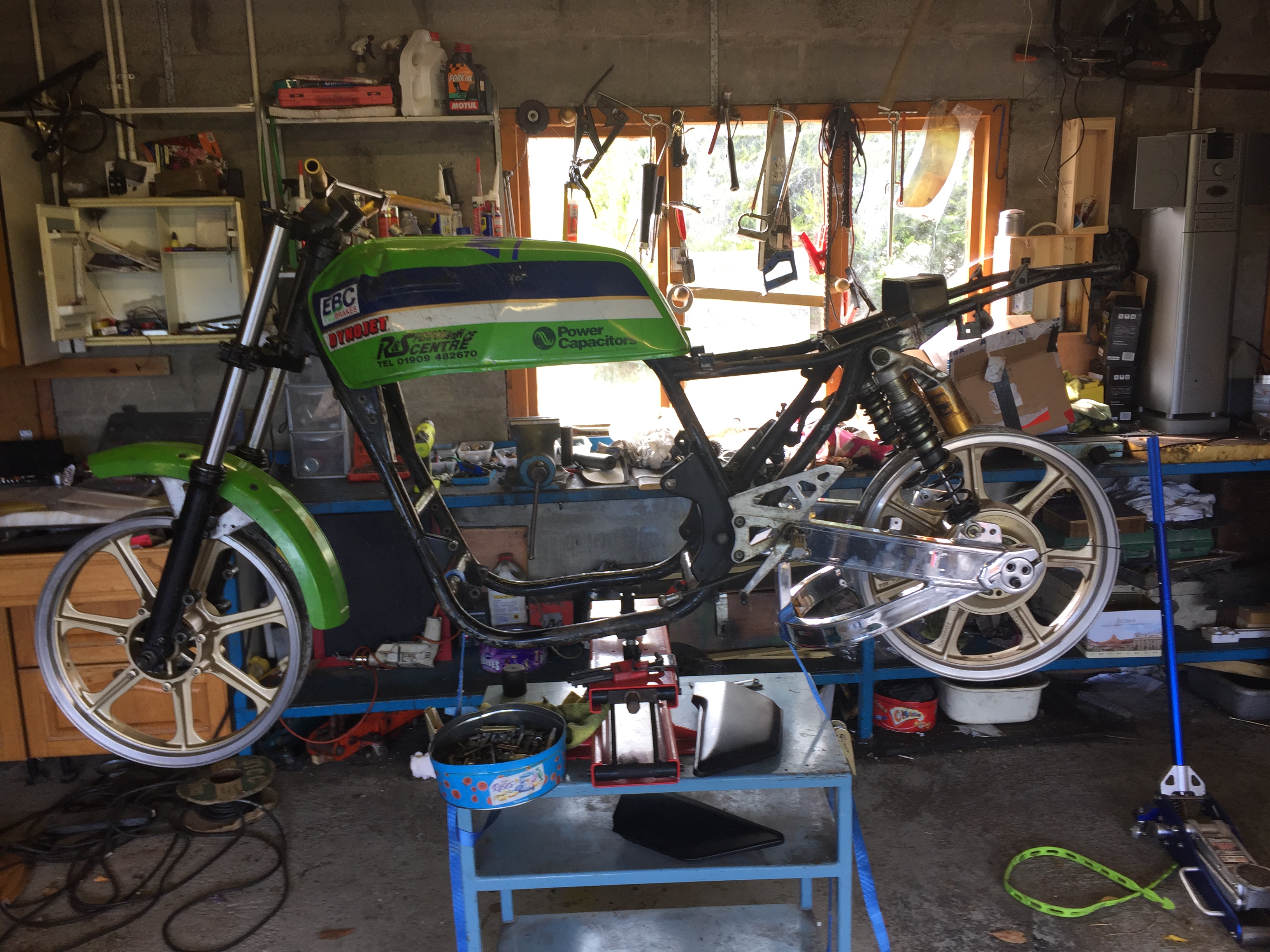

I got to this stage today ....
What I do need to start with is...
* Clock assembly with a key
*Nose fairing & screen
* Starter motor
* a side stand bracket
I'm slowly getting through all the boxes & should have all emptied & on the shelf by tomorrow.
There seems to be lots of GPZ parts.
Also multiple brake discs, mostly all very good.
Multiple Clutches, Dyna S ignition plates, a scruffy kerker
A scruffy Harris, A pretty good V&H.

Some members have asked about parts, I will get back you guys via PM
Attachments
Zed til Dead

LeeJackson
100Club
100Club
Posts: 364
Joined: 17th Oct 2015
Location: Aberdeen, Scotland

Re: Lawson Jigsaw Project

#2 PostAuthor: LeeJackson » Sat Jul 08, 2017 8:03 pm

That's a good stash of parts you have there Stuart, will be a fun project!! Looking forward to seeing it develop!

User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 882
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

Re: Lawson Jigsaw Project

#3 PostAuthor: z1000puddin » Sat Jul 08, 2017 8:43 pm

Thanks Lee,
If you are needing any parts, give me a shout, I'm still going thru
All the boxes, but there seems to be a lot of GPZ & J parts

Stu
Zed til Dead

User avatar
swampy
Custard Cream
Custard Cream
Posts: 579
Joined: 10th Jan 2016
Location: Croydon

Re: Lawson Jigsaw Project

#4 PostAuthor: swampy » Sun Jul 09, 2017 9:08 am

looks like you've got quite an inventory of parts there.
Motor biking, motor biking, going down the queens highway like a rasher streaky bacon!

User avatar
swampy
Custard Cream
Custard Cream
Posts: 579
Joined: 10th Jan 2016
Location: Croydon

Re: Lawson Jigsaw Project

#5 PostAuthor: swampy » Sun Jul 09, 2017 12:11 pm

im thinking of fitting a dyna2000 to mine. so if you have a j ignition case (the housing not the cover) i would be interested.
Motor biking, motor biking, going down the queens highway like a rasher streaky bacon!

garyd
Hardcore
Hardcore
Posts: 2069
Joined: 11th Jun 2011
Location: West of London

Re: Lawson Jigsaw Project

#6 PostAuthor: garyd » Sun Jul 09, 2017 2:19 pm

Your a Glutten for punishment...the garage looks as if I had never paid you a visit!!!

User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 882
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

Re: Lawson Jigsaw Project

#7 PostAuthor: z1000puddin » Sun Jul 09, 2017 6:08 pm

Gary
I know, I seem to have more parts now than I did before you cleaned me out. :D :roll:

How's my old zeds going ? Have ya got them MOTD yet ?
Zed til Dead

User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 882
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

Re: Lawson Jigsaw Project

#8 PostAuthor: z1000puddin » Sun Jul 09, 2017 6:17 pm

swampy wrote:im thinking of fitting a dyna2000 to mine. so if you have a j ignition case (the housing not the cover) i would be interested.


Swampy
There is a complete bottom end unitrack, but no ignition housing, sorry

Stu
Zed til Dead

User avatar
swampy
Custard Cream
Custard Cream
Posts: 579
Joined: 10th Jan 2016
Location: Croydon

Re: Lawson Jigsaw Project

#9 PostAuthor: swampy » Sun Jul 09, 2017 6:23 pm

ho hum
Motor biking, motor biking, going down the queens highway like a rasher streaky bacon!

Julian_Boolean
Custard Cream
Custard Cream
Posts: 581
Joined: 20th Oct 2016
Location: Ipswich

Re: Lawson Jigsaw Project

#10 PostAuthor: Julian_Boolean » Sun Jul 09, 2017 8:11 pm

I got my casing off eBay for £15, you can still buy them new for about 10 times what I paid.
An expanding collection of parts pretending to be a Z1100R and a Yamaha FZ750

User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 882
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

Re: Lawson Jigsaw Project

#11 PostAuthor: z1000puddin » Mon Jul 10, 2017 2:07 pm

Doing a bit more today.

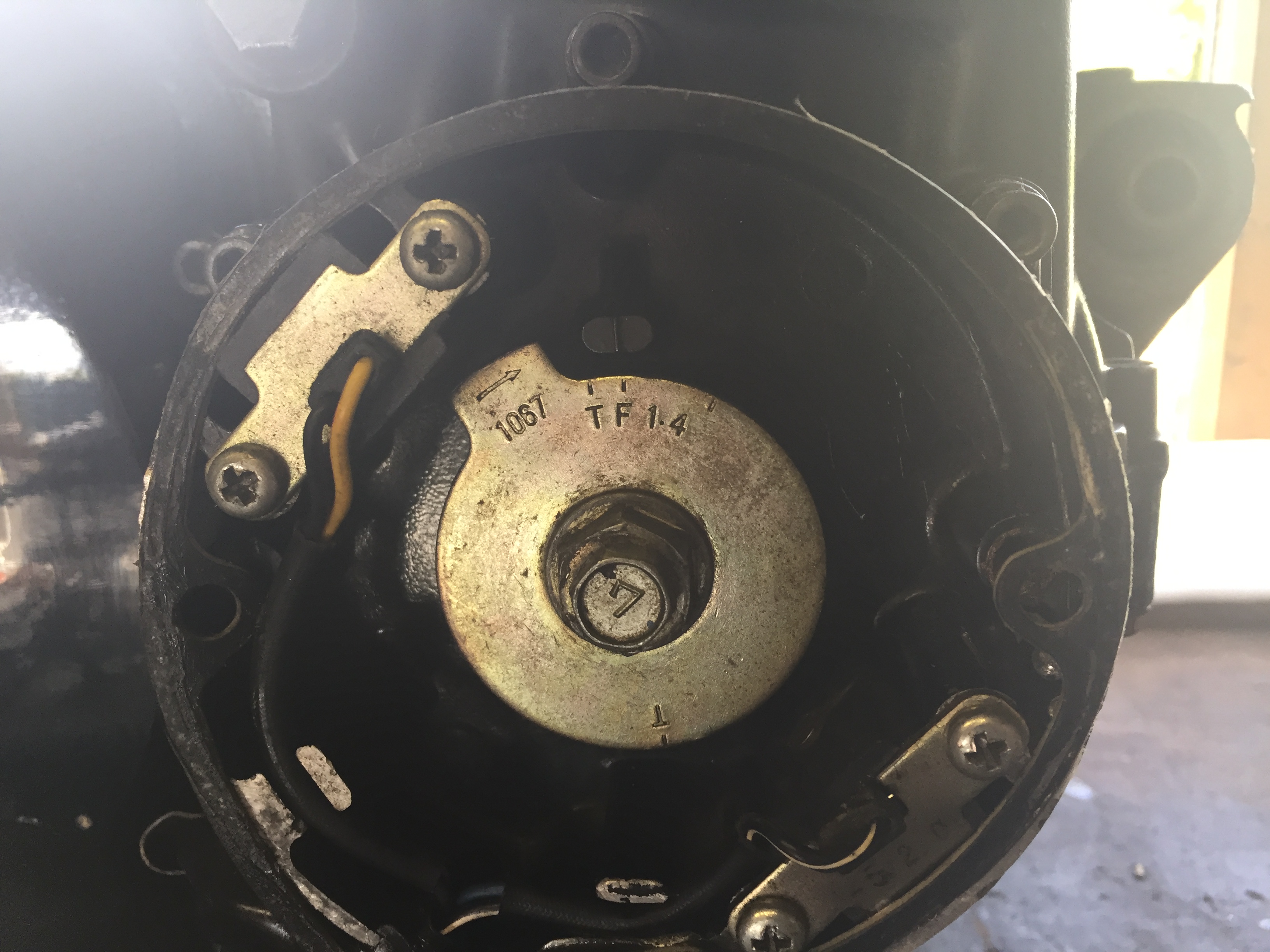

Checked out the ignition, I have not seen one like this
Can anyone enlighten me?

What type of ignition is this . ??


Also removed the race alternator cover.
So I will need a starter gear assy & a rotor.
Are the rotors all the same on these ??
Rotor & starter gear assy Required

Anyone have one they want to part with?


Stu
Zed til Dead

User avatar
Gus
ZedHead
ZedHead
Posts: 1034
Joined: 17th Mar 2007
Location: Gloucestershire

Re: Lawson Jigsaw Project

#12 PostAuthor: Gus » Mon Jul 10, 2017 2:10 pm

Looks like GPZ1100 Unitrak to me if it's connected to the Igniter it is probably in a plastic case

Looks like a unitrac output shaft so may be a whole unitrac motor See what the engine number is.


Gus
"Set the GRINDER on it"

Julian_Boolean
Custard Cream
Custard Cream
Posts: 581
Joined: 20th Oct 2016
Location: Ipswich

Re: Lawson Jigsaw Project

#13 PostAuthor: Julian_Boolean » Mon Jul 10, 2017 2:39 pm

Z1100R has a Unitrak engine, that ignition pickup is standard Unitrak, if you want to fit a Dyna ignition you'll need a J engine casing
An expanding collection of parts pretending to be a Z1100R and a Yamaha FZ750

User avatar
Gus
ZedHead
ZedHead
Posts: 1034
Joined: 17th Mar 2007
Location: Gloucestershire

Re: Lawson Jigsaw Project

#14 PostAuthor: Gus » Mon Jul 10, 2017 3:01 pm

Doh!

Course it does, brain fart

Gus
"Set the GRINDER on it"

User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 882
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

Re: Lawson Jigsaw Project

#15 PostAuthor: z1000puddin » Mon Jul 10, 2017 4:12 pm

Julian
By the time I finish this build, you are probably gonna be fed up of my questions :D :D


Thanks.

Stu
Zed til Dead
